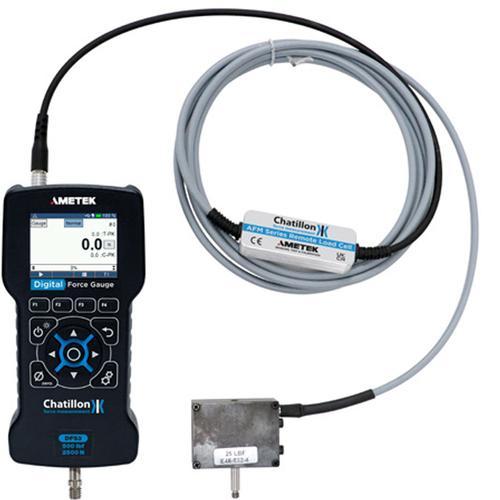

Chatillon DFS3-050-AFM-250G Digital Force Gauge 50 x 0.001 lbf - Remote Loadcell - 0.5 x 0.00001 lbf

The DFS3 Series offers the best price performance of any digital force gauge available today. This compact, easy-to-use force gauge is designed for basic and complex applications. Ideal for handheld or test stand applications, the DFS3 may be equipped with integral loadcells or smart remote sensors for load measurement or torque measurement. more ...
Test Equipment > Force Gauges > Force Gauges w Remote Sensors
Chatillon DFS3-050-AFM-250G Digital Force Gauge 50 x 0.001 lbf  - Remote Loadcell - 0.5 x 0.00001 lbf

Specifications Chart View Full Detail Page


Have Questions?
Call USoremail Us
Our Staff will be glad to help

Chatillon DFS3-050-AFM-250G Digital Force Gauge 50 x 0.001 lbf - Remote Loadcell - 0.5 x 0.00001 lbf
FREE 3 Day Shipping
(48 US States Only)
Price: $3,069.45


Available to Ship


Optional Accessories
Chatillon SPK-FMG-011B Flat Adapter 500 lbf 5/16-18F Chatillon SPK-FMG-011B Flat Adapter 500 lbf 5/16-18F , $41.40
Chatillon SPK-FMG-008A Chisel Point Adapter 100 lbf (500 N) Chatillon SPK-FMG-008A Chisel Point Adapter 100 lbf (500 N) , $28.80
Chatillon SPK-FMG-009A Point Adapter  100 lbf (500 N) Chatillon SPK-FMG-009A Point Adapter 100 lbf (500 N) , $28.80
Chatillon SPK-FMG-010A Notch Adapter 100 lbf (500 N) Chatillon SPK-FMG-010A Notch Adapter 100 lbf (500 N) , $28.80
Chatillon P-10020  #10-32 to 5/16-18 Female to Male Thread Adapter Chatillon P-10020 #10-32 to 5/16-18 Female to Male Thread Adapter , $36.00
Chatillon SPK-FMG-013A Extension Rod, Low Capacity  (#10-32) Chatillon SPK-FMG-013A Extension Rod, Low Capacity (#10-32) , $40.50
Chatillon ML3868 Swivel Hook, 500 lbf (2.5 kN) Chatillon ML3868 Swivel Hook, 500 lbf (2.5 kN) , $81.70
Chatillon SPK-DF-RS232  -  RS232 Cable, 10’ (3m) Chatillon SPK-DF-RS232 - RS232 Cable, 10’ (3m) , $156.43
Chatillon SPK-DF-118 Carrying Case for DFX, DFE and DFS Chatillon SPK-DF-118 Carrying Case for DFX, DFE and DFS , $105.30
Chatillon ML3869 Swivel Hook, 225 lbf. Chatillon ML3869 Swivel Hook, 225 lbf. , $50.00
Chatillon ML3850 Swivel Hook, 100 lbf 500 N Chatillon ML3850 Swivel Hook, 100 lbf 500 N , $38.95
Chatillon ML3867 Swivel Hook, 20 lbf 112 N Chatillon ML3867 Swivel Hook, 20 lbf 112 N , $29.45
Chatillon SPK-FMG-011A Flat Adapter  #10-32 100 lbf 500 N Chatillon SPK-FMG-011A Flat Adapter #10-32 100 lbf 500 N , $28.80
Chatillon SPK-FMG-012C Hook, Stationary -  500 lbf, 2.5 kN 5/16-18F Chatillon SPK-FMG-012C Hook, Stationary - 500 lbf, 2.5 kN 5/16-18F , $41.40
Chatillon SPK-FMG-008B Chisel Point Adapter 500 lbf, 2.5 kN 5/16-18F Chatillon SPK-FMG-008B Chisel Point Adapter 500 lbf, 2.5 kN 5/16-18F , $40.50
Chatillon SPK-FMG-009B Point Adapter  500 lbf, 2.5 kN 5/16-18F Chatillon SPK-FMG-009B Point Adapter 500 lbf, 2.5 kN 5/16-18F , $40.50
Chatillon SPK-FMG-010B Notch Adapter 500 lbf, 2.5 kN 5/16-18F Chatillon SPK-FMG-010B Notch Adapter 500 lbf, 2.5 kN 5/16-18F , $35.15
Chatillon NC002500 Hook with Latch 500 lbf Thread 5/16-18F Chatillon NC002500 Hook with Latch 500 lbf Thread 5/16-18F , $135.85
Chatillon SPK-FMG-013B Extension Rod, 6-inch 500 lbf Thread 5/16-18F Chatillon SPK-FMG-013B Extension Rod, 6-inch 500 lbf Thread 5/16-18F , $57.60
Chatillon SPK-FMG-141 Pistol Grip Chatillon SPK-FMG-141 Pistol Grip , $118.75
Chatillon SPK-FMG-012A Hook, Stationary - 50 lbf 225 N Chatillon SPK-FMG-012A Hook, Stationary - 50 lbf 225 N , $28.80
Chatillon SPK-FMG-012B Hook, Stationary - 100 lbf 500 N Chatillon SPK-FMG-012B Hook, Stationary - 100 lbf 500 N , $41.40
Chatillon SPK-DF3-HANDLE Handle Assembly for DFE3 and DFS3 Chatillon SPK-DF3-HANDLE Handle Assembly for DFE3 and DFS3 , $89.00

View Features

Chatillon Ametek
SKU: DFS3-050-AFM-250G

Features

The DFS3 Series offers the best price performance of any digital force gauge available today. This compact, easy-to-use force gauge is designed for basic and complex applications. Ideal for handheld or test stand applications, the DFS3 may be equipped with integral loadcells or smart remote sensors for load measurement or torque measurement.

Measurement accuracy is better than 0.1% full scale in integral load cell models. A large, easy-to-read, high resolution, full color LCD display supports a variety of standard gauge functions including normal and peak readings, high/low limits, setpoints, pass/fail results, statistical results, load averaging, % and sharp break detection, loadcell actuation and direction. Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be “hidden” from the operator. The DFS3 also offers password protection for gauge set ups.

Comprehensive Results The DFS3 Series supplies you with comprehensive results that are easy to view and understand. The gauge displays:
  • Measured Result with Units:
    • Peak Tension and Compression.
    • Break Tension and Compression.
    • Load Average/Time.
  • Operating Mode.
  • Pass-Fail Result.
  • High and Low Load Results.
  • Saved Results.
  • Statistical Calculations:
    • Average with MIN and MAX Results.
    • Cv with Average and Standard Deviation.
    • Standard Deviation.
    • Graphical representation of saved results.

Outputs The DFS3 Series comes standard with a USB-C connection. The USB interface allows communications with a PC.

Calibrate and Verify Status The DFS3 Series incorporates flash memory. You have immediate access to battery conditions, including estimated battery life remaining. You can also view loadcell status, including the number of overloads that have been applied to the gauge

Time Method The Time method allows you to establish your load averaging based on a load threshold and time duration. The load threshold determines the start of the averaging, while the time duration defines the length of the test period. The gauge will begin taking readings when the threshold is reached and will continue to take and average readings until the time duration has expired.

Battery Life The extraordinarily long battery life of the DFS3 reduces the need for continuous recharging. The dimming functionality of the DFS3 provides a battery life of 30 hours when the dimming is off while turning the dimming on will provide a full 40 hours of battery life.

Functions and Features

Unique User Interface Easy to use, single layer user interface. No deep menu structure! Operate and set-up the DFS3 to perform your tasks. Fast and intuitive! The high resolution display features brightness adjustments and can be inverted when required. The display can even be “hidden” at the press of a button. A load bar graph indicating load direction, measured load, and safe load helps prevent overloads: the load bar changes from green to red to indicate proximity to load cell capacity. The integral loadcells feature mechanical overload protection at 150% Full Scale.

Dependable Measurements The DFS3 Series features an integral loadcell sensor that delivers repeatable, accurate results. The innovative load bargraph shows dynamic load, direction of load and warns you of pending overload conditions. Smart technology in the gauge even keeps track of overload history to aide in maintenance and troubleshooting.

Automate with ForceTest (Free with your Chatillon DFE3)

  • Expand Functionality - The ForceTest software expands the functionality of your Chatillon DFE3 force gauge. This easy-to-use Windows based software interfaces directly to your digital force gauge enabling you to automatically perform tests and graphs using a personal computer. Test results can be followed directly on the screen while the test is running.
  • Intuitive User Interface - The colorful and intuitive user interface ensures that tests are simple to set up. Custom chart colors can be set for easy viewing. Units of measure, fonts, titles and force measurement resolution can also be customized through the ForceTest software.
  • Easy Export and Reporting - Test results are presented in a preadsheet format allowing you to analyze and manipulate data and perform common mathematical and statistical calculations. Results may be displayed graphically versus time. Tabular results are displayed and can be used to create relationships, queries or used to produce reports. Test results can be exported to a .csv format. Graphs and test results can also be exported directly to PDF and Word formats.
  • Wide Variety of Options - Force at maximum in a time window, average force and much more can be captured using the ForceTest software. Basic force measurement such as tensile and compression test formats, pull to limit, and compress to limit are performed by clicking just a few buttons.
  • Reduce Setup Time - To reduce setup time the ForceTest software offers pre-set templates. It also empowers its user to auto load the latest test performed, and to open previously saved tests for use as template for new tests.

Accessories

Supplied Ready-To-Go Regardless of the configuration, your DFE3 is supplied ready-to-go. The gauge and accessories are supplied in a durable carrying case that is designed for all components including adapters and a USB charger. The units are powered by an internal, rechargeable Lithium-Ion battery. The compliment of adapters is comprehensive and includes a hook, compression tip, pointed tip, chisel tip, and a notch tip: everything you need to get started.

AFM & AQM

Versatility and Simplification The external sensors: AFM external load cell, and the AQM external torque transducer, can be used together with our force gauge DFS3 to offer ultimate flexibility when performing different types of tests in various applications without having to constantly change settings. All settings can be preconfigured so that the sensors are ready for use, and this especially increases the effciency when doing repeated testing day-after-day.

Up to two external sensors can be connected in the DFS3 force gauges. Together with the internal sensor., the full set-up provides a 3-in-1 device. The force gauge shows the results from one sensor at a time, so that there is no doubt as to which sensor the results come from.

It is easy to connect the two external sensors - they both have an ADC inline box, which ensures a stable digital signal and enables the force gauge itself to identify them with a single click. The digital communication offers an improved accuracy and keeps the calibration information stored within the external device, meaning it can be used by other DFS3 gauges without affecting readings. This makes it plug-and-play.

  • External loadcells AFM - Capacities from 0.5lbf to 1000lbf (2.5N to 5000N) Accuracy: 0.1% FS
  • External Torque Transducers AQM - Capacities from 3in-lbf to 200in-lbf (0.35 Nm to 20 Nm) Accuracy: 0.3% FS

AFM & AQM with the DFS3


Unique User Interface The AFM and AQM sensors are automatically recognized by the DFS3 force gauge. The integrated electronics associated with the sensors contain all the calibration parameters necessary to guarantee the best measurement precision and metrological monitoring. In addition, potential overloads, dates, and values are also stored in memory and displayed.

Always up to speed With the DFS3 you are always sure to have the latest firmware on your device. Our cloud-based software AMETEK Device Agent helps you identify the latest firmware and get it updated in only 60 sec.

Versatility and Flexibility All the DFS3s have an internal Loadcell and TWO external transducer inputs. A Test Station could be configured and set up with 3 transducers.
The DFS3 manages and interfaces with one sensor at a time. With FIVE Test Setups available, you can pre-configure your tests with the required transducer. This simplifies and improves the quality and reliability of your measurements. Fast and intuitive!


Included Accessories List
  • Chisel Point, 110 lbf. SPK-FMG-008A
  • Chisel Point, 550 lbf. SPK-FMG-008B
  • Point Adapter, 110 lbf. SPK-FMG-009A
  • Point Adapter, 550 lbf. SPK-FMG-009B
  • Notch Adapter, 110 lbf. SPK-FMG-010A
  • Notch Adapter, 550 lbf. SPK-FMG-010B
  • Flat Adapter, 110 lbf. SPK-FMG-011A
  • Flat Adapter, 550 lbf. SPK-FMG-011B
  • Hook, 50 lbf. SPK-FMG-012A
  • Hook, 110 lbf .SPK-FMG-012B
  • Hook, 550 lbf .SPK-FMG-012C
  • Carrying Case. SPK-DF-118
  • Battery Charger, Universal, with Cable . SPK-DF3-UNIV
Full Accessories List
  • Chisel Point, 110 lbf. SPK-FMG-008A
  • Chisel Point, 550 lbf. SPK-FMG-008B
  • Point Adapter, 110 lbf. SPK-FMG-009A
  • Point Adapter, 550 lbf. SPK-FMG-009B
  • Notch Adapter, 110 lbf. SPK-FMG-010A
  • Notch Adapter, 550 lbf. SPK-FMG-010B
  • Flat Adapter, 110 lbf. SPK-FMG-011A
  • Flat Adapter, 550 lbf. SPK-FMG-011B
  • Hook, 50 lbf. SPK-FMG-012A
  • Hook, 110 lbf . SPK-FMG-012B
  • Hook, 550 lbf . SPK-FMG-012C
  • Extension Rod, 6" (152mm), #10-32. SPK-FMG-013A
  • Extension Rod, 6" (152mm), 5/16-18. SPK-FMG-013B
  • Carrying Case. SPK-DF-118
  • Load Cell Shaft Protector. SPK-DFG3-001
  • #10-32 to 5/16-18 Adapter. P-10020
  • RS232 Cable, 10 (3m). SPK-DF-RS232
  • Pistol Grip. SPK-FMG-141
  • Swivel Hook, 50 lbf . ML3867
  • Swivel Hook, 110 lbf. ML3850
  • Swivel Hook, 225 lbf. ML3869
  • Swivel Hook, 550 lbf . ML3868
  • Hook, Latch NC002500
  • Force Test DF2 & DF3 Software. SPK-DF-FORCETEST
    Handle Assembly, DFE3/DFS3. SPK-DF3-HANDLE
  • Handle Assembly, DF3 Series. 6873
  • Grip Handle, MSC/FCE Rev. A. NC002825
  • Screw, Flat Head Socket Cap Rev. –. E08-257
    5/8 Eye End Kit with Grip Pin for Gauges. SPK-TCM-001
  • Phan. 5/8 Eye End Kit with. SPK-TCM-001/PHAN
  • Grip Pin for Gauges
  • Shaft, Load Cell to 5/8 Eye End, 5/16-24M . NC003235
  • to 5/16-18M Rev A
  • Upper Eye End Adapter, 5/8" to 5/16-18F Rev A. NC003236
  • Locking Ring Rev –. NC003140
  • Locking Ring – Eye End, 5/16-18F Rev A. NC003237
  • Use PIT/0169/00 Pin, Small Grip Rev 5. NC000612
  • Adapter, 5/16-18M to 5/16-18F THRD. NC003254
  • for 5/8 Upper Eye End, DFG3
  • Adapter, 5/16-18M to 10-32F THRD. NC003255
  • for 5/8 Upper Eye End, DFG3
    Kit, DF Metric Couplers #10-32_M6; SPK-TCM-033
  • 5/16-18_M6; M8_5/16-18
  • Coupling #10-32 Female to M6x1mm Female Rev –. NC002652
  • Coupling 5/16-18 Female to M6x1mm Female Rev –. NC002658
  • Adapter, Threaded, M8x1.25 to 5/16x18, DFG3. NC003256
    Battery Charger, Universal, with Cable . SPK-DF3-UNIV
  • Cable, USB-C/USB-A, 3 FT, Black . 6885
  • Adapter, Wall Mount, AC/DC, 5V, 5W, USB-A . 6886
  • Kit, AC Adapter for P/N 6886 . 6887
SPK-TCM-001 The redesigned grip and fixture connection kit offers more flexibility with a wide variety of fixtures.
Weight: 10.00 lb
1 Year Manufacture Warranty
