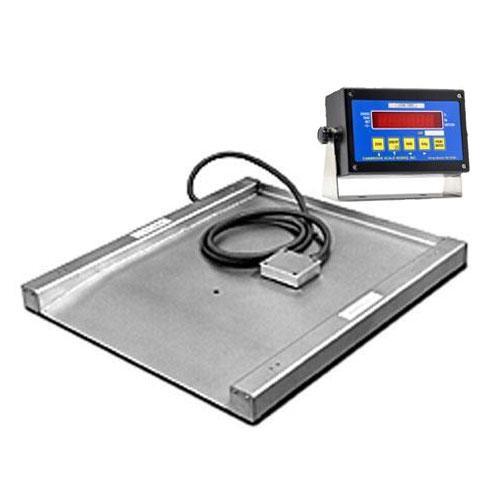

Cambridge S670130301K Model SS670-1 Stainless Steel 30in x 30in Barrel Scale w Built In Single Ramp and Indicator 1000 x 0.2 lb |
|
Constructed of structural tubular stainless steel and heavy gauge smooth plate decking these scales are designed to handle the toughest washdown applications. Incorporating all of the accuracy, reliability and strength you have come to expect from Cambridge Scale Works and backed by our one year warranty. This kit comes with the Cambridge CSW-10AT LED Digital Weight Indicator Legal for Trade. more ... |
Industrial Scales >
Floor Scales >
Drum Scale
|
Specifications Chart
View Full Detail Page
|
Legal for Trade |
Have Questions? Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:1000 lbx 0.2 lb
Legal For Trade: 1000 lb x 0.2 lb
Pan Size
30 x 30 in
|
Note: This product can only be shipped Ground Delivery.
|
|
This Item Contains the following items
|
|
|
|
Features
Cambridge Model SS670-1 Series Stainless Steel Barrel Weigher Scale
Constructed of structural tubular steel and heavy gauge anti-skid diamond plate decking these scales are designed to handle the toughest applications. Incorporating all of the accuracy, reliability and strength you have come to expect from Cambridge Scale Works and backed by our one year warranty.
STANDARD FEATURES
- Stainless Steel construction.
- Anti-skid diamond plate deck.
- 100% End loading capacity.
- 150% Overload protection.
- 20 Foot indicator cable.
- Eye bolt holes allow easy set-up.
- Shielded load cell and indicator cables.
- Ultra-low profile (1.5” above the floor).
- Live side rails to weigh oversized loads.
- 1 Part in 5000 accuracy.
- Live built-in easy incline ramps.
- Shock load protection.
- (4) Internally mounted, Environmentally protected, NTEP certified-5000 Division, Class III/IIIL, IP 67 water resistant rated shear beam load cells.
- Easy access leveling.
OPTIONS
- Smooth carbon steel deck plate.
- Remote NEMA 4x junction box with 10 Sealtite flexible conduit (available in stainless steel, plastic and “FM” approved).
- Load cell options: Stainless steel , Hermetically sealed S.S. , Teflon cables,“FM” approved
- High Resolution Package Includes: Captive ball leveling feet for unmatched stability.
- H.E.P. Package Includes: Stainless steel NEMA 4x J -box, Capped and sealed tubes, Stainless steel load cells, leveling feet and hardware, Sandblasted surface Cold zinc epoxy coating with urethane enamel finish coat
Dimensions X:
30.00
Y:
30.00
Z:
1.50
|
|
Other Cambridge Scale Model SS670-1 Built In Single Ramp Stainless Steel Floor Scale
|
Specifications
Cambridge Model SS670-1 Series Stainless Steel Barrel Weigher Scale |
Model |
S670130301 |
S670130302 |
S670130305 |
S670136361 |
S670136362 |
S670136365 |
Capacity |
1,000 x 0.2 lb |
2,500 x 0.5 lb |
5,000 x 1 lb |
1,000 x 0.2 lb |
2,500 x 0.5 lb |
5,000 x 1 lb |
Platform Size |
30" x 30" x 1.5" |
30" x 30" x 1.5" |
30" x 30 x 1.5" |
36" x 36" x 1.5" |
36" x 36" x 1.5" |
36" x 36" x 1.5" |
Model With Indicator |
S670130301K |
S670130302K |
S670130305K |
S670136361K |
S670136362K |
S670136365K |
Overload protection |
150% |
Indicator Cable |
20 Foot |
Rated |
IP 67 water resistant |
Plate Deck |
Anti-skid diamond |
Accuracy |
1 Part in 5000 |
|
|
|
|
|
|
|
