| Model |
ZP218
AWT05-100378 |
ZP218
AWT05-100379 |
ZP224
AWT05-100724 |
ZP224
AWT05-100558 |
| Capacity x Resolution |
150 x 0.05 lb
75 x 0.02 kg |
150 x 0.05 lb
75 x 0.02 kg |
250 x 0.05 lb
100 x 0.02 kg |
250 x 0.05 lb
100 x 0.02 kg |
| Pan Size |
18 x 18 inch |
18 x 18 inch |
24 x 24 inch |
24 x 24 inch |
| Pan type |
Stainless Steel |

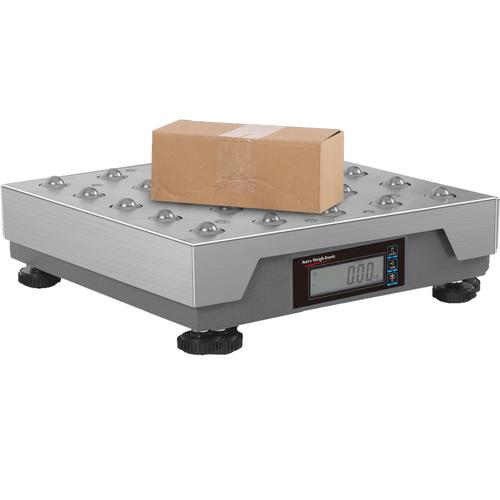

Stainless Steel
Ball Top (25 balls) |
Stainless Steel |
Stainless Steel
Ball Top (48 balls) |
| Legal for Trade |
NTEP approved for use in Class III operations, CC 22-053 Canada Weights and Measures approval: pending |
| Power |
Input: 100-240V, 50/60Hz, 0.4A Max Output: 12.0VDC, 1.0A max, 0.25mm barrel plus, center pin positive
Type: Wall mount adapter with NA style two prong blade type |
| Connectivity |
1 x RS-232 (9 way female D Type connector ), 1 x USB HID (Mini USB) or 1x USB VCP (USB-Type B) 1 x 2nd Remote display connection (RJ 45) All are positioned on the rear of the base |
| Display Type |
Flush fitting six digit, 1 inch (25mm) high backlit LCD display |
| Operational Keys |
POWER/ZERO: Includes Auto Zero Tracking or Manual push button to re-establish zero reference
UNITS: Allows you to select between lbs and kgs
TARE: Perform a tare function for gross and net weight |
| Units of Measure |
lb, kg |
| Configurable Selections |
Capacity, resolution, filters, baud rates, protocols, back light setting, and stand-by mode |
| Base Construction |
Painted all-metal frames and heavy duty overload protection using an aluminum analog load cell |
| Base Capacity |
Capacity (lb) 200 lb x 0.05 lb (100 x 0.02 kg) factory default
With field calibration, configurable to: 100 x 0.02 lb (50 x 0.01kg)150 x 0.05 lb (75 x 0.02kg) |
| Operating Environment |
Temperature: 42° F to 104° F (5° C to 40° C)
Relative Humidity: 10 to 95% (non-condensing) |
| Calibration |
2 point calibration process (zero and span capacity) Linear Calibration
Field calibration can be carried out by using less than full capacity weights
Gravity compensation to allow the local gravity to be entered for where the scale is to be used |
| Filtering |
Standard, Fast, or Slow |
| Supported Protocols |
- |
4 Supported Protocols: NCI (default), SMA, Auto Weight Send 1, and Auto Weight Send 2 (9600 or 19200 baud rate). Includes as standard USB HID Keyboard Wedge output. USB VCP (Virtual COM Port) for use with downloadable USB VCP driver |
