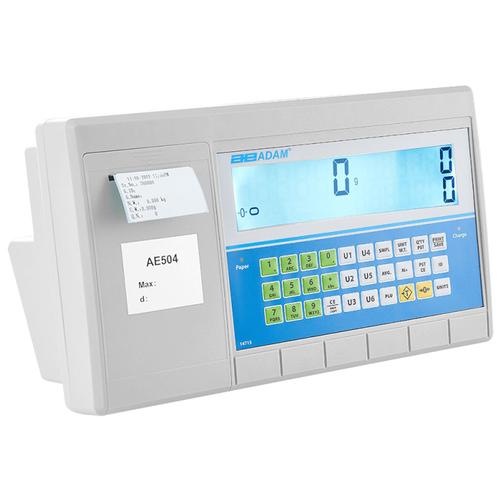

Adam Equipment AE-504 Indicator with Built-in Printer and 1000 PLUs |
|
| A sturdy, lightweight design with a sealed keypad, an internal rechargeable battery and the convenience of a built-in printer make the AE 504 advanced label printing indicator a great choice for demanding industrial settings and shipping and receiving areas. more ... |
|
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
|
|
Features
A sturdy, lightweight design with a sealed keypad, an internal rechargeable battery and the convenience of a built-in printer make the AE 504 advanced label printing indicator a great choice for demanding industrial settings and shipping and receiving areas.
In addition to numerous weighing and counting applications, add barcodes, QR codes, pictures and custom logos to the 50mm-wide printed labels with the indicators integrated printer.
The large, easy-to-read backlit LCD screen features 0.9-inch/22mm-tall digits, while a color-coded numeric keypad allows quick and easy selection from 1,000+ PLUs or to manually enter tare weights, unit weights and sample sizes.
Features
- Color-coded keys facilitate quick recognition of the most frequently used buttons
- RS-232 interface is available to provide speedy connection to computers
- Rugged construction stands up to industrial use
- Built in printer can print weight, QR codes, bar codes and labels in numerous languages
- Zero-tracking feature ensures display returns to zero reading
- Parts counting optimization automatically refines piece weight as parts are added
- Checkweighing with audible alarm
- External calibration allows for verification and adjustment with weights
- Quick and easy configuration using the keypad
- User-selectable scale division
- Vivid, backlit LCD easily visible in any lighting conditions
- Programmable backlight can be set to "always on," "always off" or "light only when weighing"
- Rechargeable battery included for operation almost anywhere
- Programmable auto power-off to save energy
Applications
- Weighing
- Parts counting
- Check counting
- Averaging
- Barcode / label printing
- Checkweighing
- Accumulation of count
Weight:
5.00 lb
|
|
Specifications
| Model |
AE 504 |
| Capacity |
Selectable |
| Capacity Range |
Selectable |
| Resolution |
1:60,000 |
| Excitation Voltage |
5VDC |
| Loadcells |
8 |
| Sensitivity |
0.02uv/e |
| Zero Range |
0-10mv |
| Signal Range |
- 20mV - 20mV |
| Weighing Units |
kg, g, lb, oz |
| Stabilization Time (sec) |
2 |
| PLU memories |
1006 |
| Interface |
RS-232 |
| Calibration |
External calibration |
| Display |
Backlit LCD with 0.87" and 0.63" / 22mm -high digits and 16mm -high digits |
| Power Supply |
12VDC 3A adapter / Internal rechargeable battery |
| Operating Temperature |
0° to 40°C / 32° to 104°F |
| Housing |
ABS plastic |
| Overall Dim. |
11.8"x4.9"x6.7" / 300x170x125mm (wxdxh) |
| Net Weight |
6.2lb / 2.8kg |
Accessories
- 3014011014 - RS-232 cable M-F
- 3074010507 - RS-232 to USB adapter (must order corresponding RS-232 cable)
- 2050013351 - Indicator stand
- 400005615 - Labels - [800 per roll]
|
|
|
|
|
|
|
