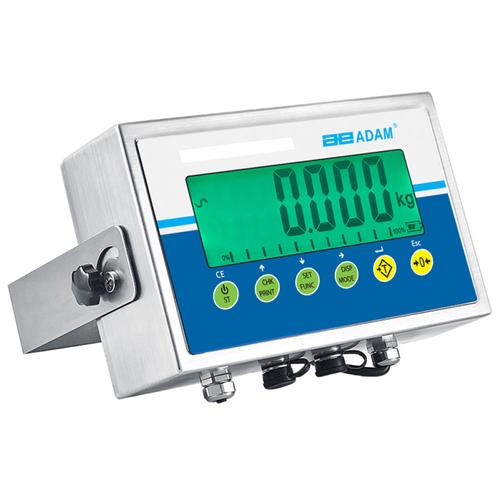

Adam Equipment AE-403a IP67 Indicator |
|
| Designed with durable stainless steel housing, the AE 403 indicator features an IP67 rating for protection against dust and water. The indicator is hard-wired with a mains lead, allowing the mains plug to fit inside a waterproof socket for additional protection more ... |
|
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
|
|
Features
Designed with durable stainless steel housing, the AE 403 indicator features an IP67 rating for protection against dust and water. The indicator is hard-wired with a mains lead, allowing the mains plug to fit inside a waterproof socket for additional protection. Checkweighing is fast and easy, as results are shown in 40mm-high digits on the backlit display that changes color when the weight is over, under or within limits. A capacity tracker on the display helps users easily monitor overloads. The internal rechargeable battery means the AE 403 can operate even if electricity is unavailable. It’s simple to transmit results to computers or printers using the RS232 interface. A bracket is included, so the AE 403 can quickly be mounted on the wall or other vertical surface for optimum visibility and flexibility. External calibration allows verification and adjustment with weights.
A rugged stainless steel design and IP67 rating make AE 403 the right choice for a variety of industrial applications. The backlit display shows results in 40mm-high digits and changes color when the weight is over, under or within limits. Easily monitor overloads with the capacity tracker. The included bracket allows the AE 403 to be mounted on the wall or other vertical surface for optimum visibility and flexibility.
The multi-function AE 403 indicator can be combined with weighing platforms to handle demanding industrial tasks. It performs well on the loading dock, at food processing plants, in agricultural settings, or in shipping and receiving areas.
The AE 403 is the successor to the AE 402
Features and Benefits
Approval
- IP67-rated for protection against water and dust
Features
- Color-coded keys facilitate quick recognition of the most frequently used buttons
- Robust metal housing protects internal components in harsh environments
- Rugged stainless steel construction for ultimate durability
- RS-232 interface is available to provide speedy connection to computers and printers
- Wall-mount bracket for placing indicator on vertical surface
- External calibration allows for verification and adjustment with weights
- Checkweighing with audible alarm
- Hold function freezes the displayed weight, allowing time to elapse without losing the result
- Parts counting with preset sample sizes
- Selectable digital filtering helps minimize effects of vibration and disturbances
- User-selectable scale division
- Zero-tracking feature ensures display returns to zero reading
Display
- Backlit display changes color for quick notification of checkweighing limits
- Capacity tracker built into display for easily monitoring possible overloads
Power
- Rechargeable battery included for operation almost anywhere
- Programmable auto power-off to save energy
Weight:
5.00 lb
|
|
Specifications
| Model |
AE 403a |
| Capacity |
Selectable |
| Capacity Range |
Selectable |
| Resolution |
1:80,000 |
| Excitation Voltage |
5VDC |
| Loadcells |
4 |
| Sensitivity |
0.15uv/d |
| Zero Range |
0-10mv |
| Signal Range |
0-40mv |
| Weighing Units |
g, kg, lb, lb:oz, oz, N, custom unit |
| Stabilization Time (sec) |
2 |
| Interface |
RS-232 |
| IP Rating |
67 |
| Calibration |
External calibration |
| Display |
Backlit LCD with 1.6"/ 40mm -high digits |
| Power Supply |
12VDC 800mA adapter / Internal rechargeable battery |
| Operating Temperature |
0° to 40°C / 32° to 104°F |
| Housing |
Stainless steel |
| Overall Dim. |
9.4"x5.7"x3.7" / 240x145x95mm (wxdxh) |
| Net Weight |
4.4lb / 2kg |
Accessories
- Item number Description
- 700400103 - RS-232 cable
- 3074010507 - RS-232 to USB adapter (must order corresponding RS-232 cable)
- 3004013214 - Light tower kit including relay box
- 1120014641 - AIP impact printer
- 1120011156 - ATP thermal printer
- 1100011297 - Relay box
- 600002028 - AdamDU Data Collection Program
- 2050013351 - Indicator stand
|
|
|
|
|
|
Optional Accessories
more info
|

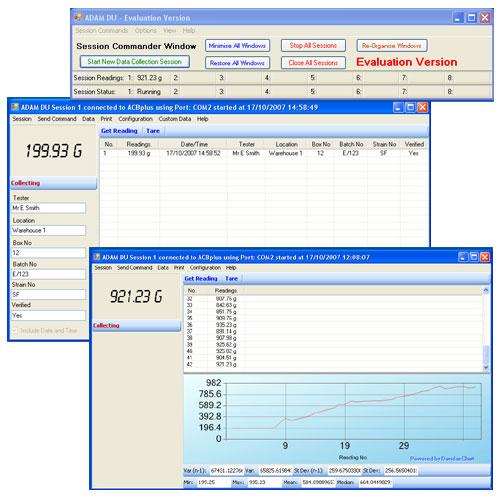

Adam Equipment 600002028 AdamDU - Data Collection Program
AdamDU - Data Collection Program
Practical Functionality – Smart Features
Statistics and Graphing
Easy Data Management
Quick Setup and Installation
|
|
more info
|

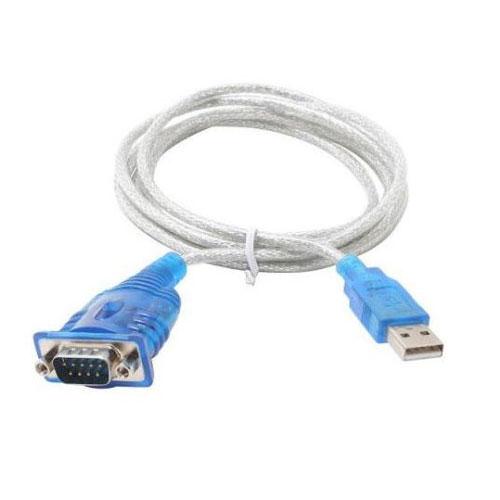

Adam Equipment 3074010507 RS-232 to USB Interface Cable
9066 RS-232 to USB Interface Cable
|
|
more info
|

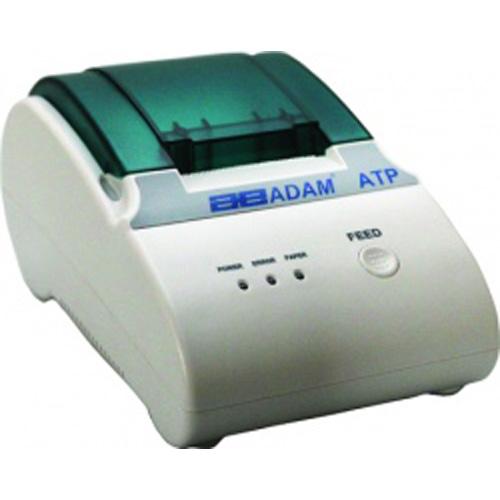

Adam Equipment - ATP Thermal Printer (1120011156)
Adam Equipment ATP Thermal Printer (1120011156)
Simple-to-use features combined with quick set-up makes for a truly versatile printer. A single positive push-button feed key and three easy-to-read LED indicators make operation simple.
- Thermal printer
- Dimensions: 114 mm x 184 mm x 90 mm
- Print size 24 x 24 dot
- Column size 384 dots per line
- 57.5mm paper width
|
|
more info
|

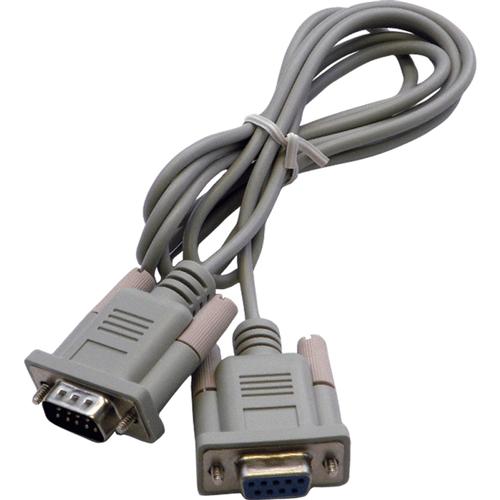

Adam Equipment 3014011014 RS-232 cable M-F
The Male to Female RS-232 interface cable is used to connect the balance or weighing scale to other devices such as the ATP Thermal Printer or simply to a computer. Data collection is streamlined and you no longer have to input the readings manually
|
|
more info
|

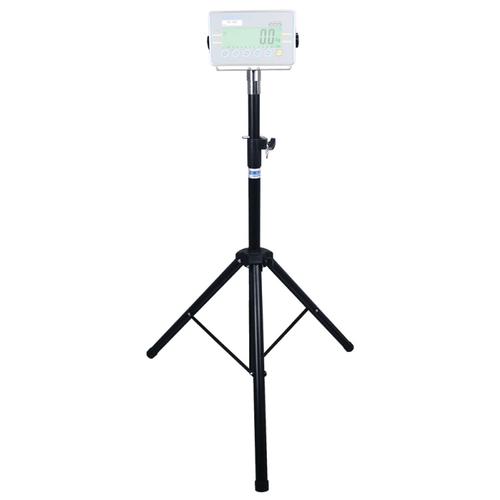

Adam Equipment 2050013351 Indicator stand
To stabilize a freestanding indicator that is separated from a scale, attach it to the indicator stand for reliable support. Sturdy aluminum construction is also lightweight, so the stand is easy to transport.
(Indicators are not included with the stand.)
|
|
more info
|

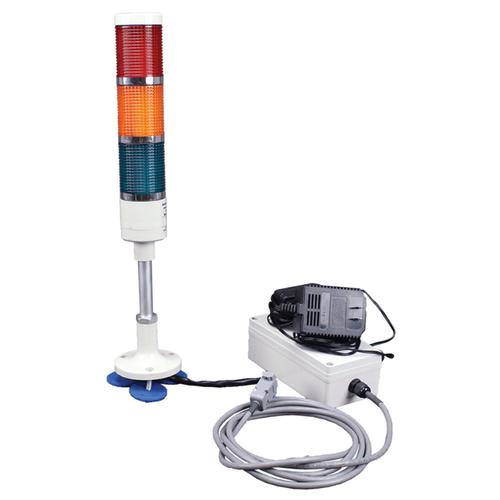

Adam Equipment 3004013214 Light tower kit including relay box
The AE relay box is an add-on for the ABK, AFK, and the AE 403 Indicator. When installed, it allows the checkweighing limits to trigger a voltage relay. Once the trigger is set, the relay box will open or close a switch. This allows the scales to drive other items such as a motor for filling, or lights to signal the users. The relay box includes input for power to help drive the relays. The light tower has 3 colors to let you know if your weight is over, under or within preset limits at a glance.
|
|
more info
|

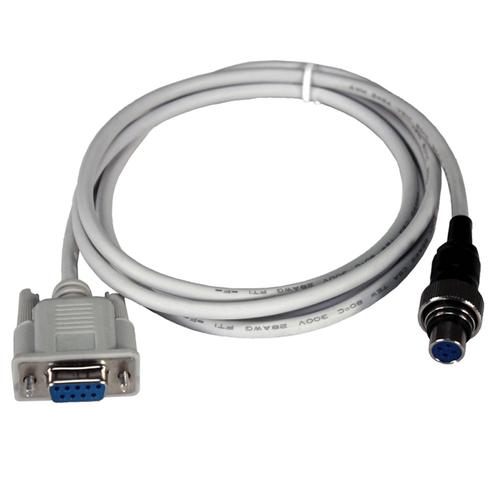

Adam Equipment 700400103 RS-232 cable
The RS-232 interface cable is used to connect the balance or weighing scale to other devices such as the ATP Thermal Printer or simply to a computer. Data collection and transmission is streamlined and you no longer have to input the readings manually.
|
|
more info
|

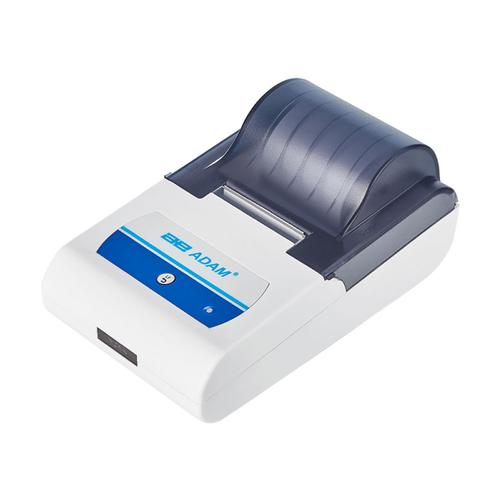

Adam Equipment - 1120014641 AIP dot matrix printer
The AIP is a compact, high-speed dot matrix printer that is both versatile and sturdy. Simple to use, AIP operates with only an on/off switch and a paper feed button. For efficient communication, the printer connects with any scale or balance having RS-232 or USB interface, and automatically detects the devices settings. AIP is powered by adapter or rechargeable battery, so it works even when electricity is unavailable. AIPs supports a variety of languages, and its software is compatible with Windows operating systems.
Features
- Printer method: 8 pin shuttle impact dot matrix Supplied with RS-232 interface and USB port which allows for connection between printer, computer and weighing device to update firmware and set parameters Auto-setting detection: Communication parameters can be automatically identified and set for quick configuration with devices Fast 1.7 lines/sec (approx) printing speed Printer digits: 24 digits / line or 40 digits / line, 5 x 7 dot matrix Printer paper size: 57mm width, 50mm in diameter
- AC adapter included
- Rechargeable battery included for operation almost anywhere
|
|
|
|
|
|
|
|
|
