AND Weighing SC-150KAL Washdown Scale 330lb x 0.05lb |
|
The SC/SE Series bench scale is constructed with a completely sealed indicator and a washdown base that meets IP68 standards. It provides exceptional performance with a stabilization speed of just 1 second! more ... |
Scales >
Industrial Scales >
Bench Scales
|
|
|
|
Features

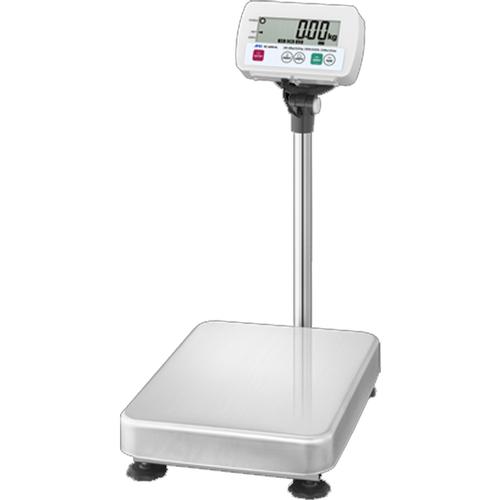

The SC/SE Series bench scale is constructed with a completely sealed indicator and a washdown base that meets IP68 standards. It provides exceptional performance with a stabilization speed of just 1 second!
- IP68 dust and water-proof
- Washdown construction for easy cleaning
- 4500 hours of continuous operation with 6 D batteries1
- Supersized LCD of 39 mm character height
- Easily switchable, multiple weighing units (kg, lb, oz, and pcs)
- Stabilization speed of 1 second
- Stainless steel weighing pan
- Waterproof and corrosion-resistant load cell2
- Quick USB interface3 or RS-232C + comparator relay output available as options
- Manual
1) Batteries are not included.
2) Aluminum anodized and coated with epoxy resin with protective silicon over wiring.
3) Cables are not included
Stainless Steel Construction Models |
SC-30KAM |
SC-60KAM |
SC-150KAM |
SC-60KAL |
SC-150KAL |
Mild Steel Construction Models |
SE-30KAM |
SE-60KAM |
SE-150KAM |
SE-60KAL |
SE-150KAL |
Capacity X Readability |
66 lb x 0.01 lb |
130 lb x 0.02 lb |
330 lb x 0.05 lb |
130 lb x 0.02 lb |
330 lb x 0.05 lb |
30 kg x 0.005 kg |
60 kg x 0.01 kg |
15 0kg x 0.02 kg |
600 kg x 0.01 kg |
150 kg x 0.02 kg |
Repeatability (Std. deviation) |
0.005 kg |
0.01 kg |
0.02 kg |
0.01 kg |
0.02 kg |
Linearity |
±0.01 kg |
±0.02 kgb |
±0.05 kg |
±0.02 kg |
±0.05 kg |
Sensitivity drift |
±20 ppm / °C (5°C to 35°C / 41°F to 95°F) |
No. of samples |
5 pieces (can be changed to 10, 20, 50 or 100) |
Max. count |
60,000 pcs |
60,000 pcs |
75,000 pcs |
60,000 pcs |
75,000 pcs |
Min. unit weight |
0.0005 kg |
0.001 kg |
0.002 kg |
0.001 kg |
0.002 kg |
Units of Measure |
lb, oz, kg |
Display |
7 segment LCD display (character height 39 mm) |
Display update |
10 times per second |
Operating temp. |
-10°C to 40°C / 14°F to 104°F, 85% R.H. or less (non-condensing) |
Power supply |
Size D batteries x6, Approximately 4,500 hours using alkaline batteries (models are battery power only) |
Weighing pan size |
300 x 380 mm 11.8 x 15 in. |
390 x 530 mm 15.4 x 20.9 in. |
Dimensions SC |
300(W) x 543(D) x 717(H) mm 11.8(W) x 21.4(D) x 28.2(H) in. |
390(W) x 688(D) x 717(H) mm 15.4(W) x 27.1(D) x 28.2(H) in. |
Dimensions SE |
300(W) x 582(D) x 722(H) mm 11.8(W) x 22.9(D) x 28.4(H) in. |
390(W) x 732(D) x 722(H) mm 15.4(W) x 28.8(D) x 28.4(H) in. |
Weight (approximately) |
26.5 lb /12 kg |
35.3 lb / 16 kg |
Calibration weight |
60 lb 30 kg |
120 lb 60 kg |
300 lb 150 kg |
120 lb 60 kg |
300 lb 150 kg |
|
|
