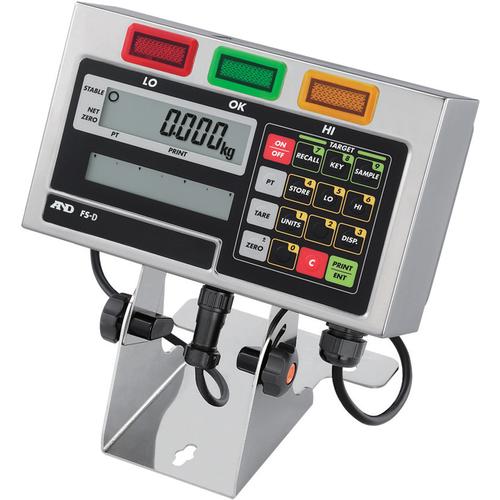

AND Weighing FS-D IP65 Weighing Indicator |
|
The FS-D indicator is ideal for today’s food processing industry and busy production environments. The 0.5 second measurement time and bright three color lights mean quick weighing and error-free comparator judgments. The refresh rate of 20 times/second allows fast data acquisition using optional serial interfaces. more ... |
Scales >
Indicators & Remote Displays >
Indicators & Remote Displays
|
|
|
|
Features
The FS-D indicator is ideal for today’s food processing industry and busy production environments. The 0.5 second measurement time and bright three color lights mean quick weighing and error-free comparator judgments. The refresh rate of 20 times/second allows fast data acquisition using optional serial interfaces. The FS-D comes with a desktop/wall mount stand and connector plug for use with platforms from A&D Weighing and most manufacturers
Stainless Steel and IP65
Water & Dustproof Construction NSF certifi ed and easy to wash and keep hygienic, the FS-D is reliable under harsh conditions.

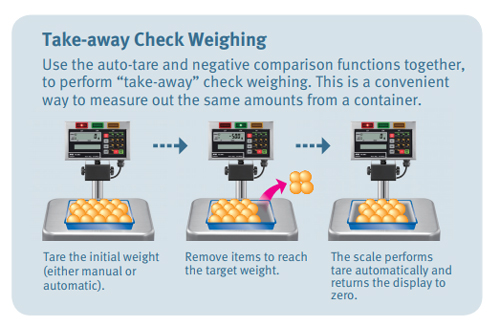

Auto-tare Function
Eliminate repeatedly pressing the TARE key in consecutive measurements – the FS-D can automatically perform a tare each time the weight reaches a target range.
Negative Comparison
You can now compare negative values by removing weights from the scale
Eight Fixed Capacities
Models can be confi gured to one of the following eight capacities in 3 different resolutions that range from 1/3000 to 1/12,000 to 1/15,000. |
Fixed Capacities |
Resolution |
Low |
Med |
High |
6 kg |
3,000 |
6,000 |
12,000 |
15 kg |
7,500 |
15,000 |
30 kg |
6,000 |
12,000 |
60 kg |
6,000 |
12,000 |
150 kg |
7,500 |
15,000 |
300 kg |
6,000 |
12,000 |
600 kg |
6,000 |
12,000 |
1,500 kg |
7,500 |
15,000 |
|
Weight:
6.00 lb
|
|
Specifications
Model |
FS-D |
Input sensitivity |
0.2 µV / d (d: the smallest min. display of kg) |
Input signal range |
0 mV to 13 mV |
Weighing resolutions |
1/3,000, 1/6,000 (or 1/7,500), and 1/12,000 (or 1/15,000) (Only one can be selected at a time.) |
Load cell excitation voltage |
DC 5 V ± 5% (no remote sensing) |
Load cell drive capacity |
Up to four 350 ω load cells |
Temperature coefficien |
Zero: ±(0.2 µV ± 0.001% of zero adjustment voltage) / °C (typ.) |
Span: ±0.001% / °C of reading (typ.) |
Available units of weighing |
lb, kg, g, oz, and lb-oz |
Linearity |
±0.01% of full scale |
Memory Capacity |
100 sets of comparator limits |
Display |
7-segment LCD (Character height: 18.6 mm) with backlight |
Dimensions |
250 (W) x 202 (D) x 266 (H) mm 9.8 (W) x 8.0 (D) x 10.5 (H) in. |
Power supply |

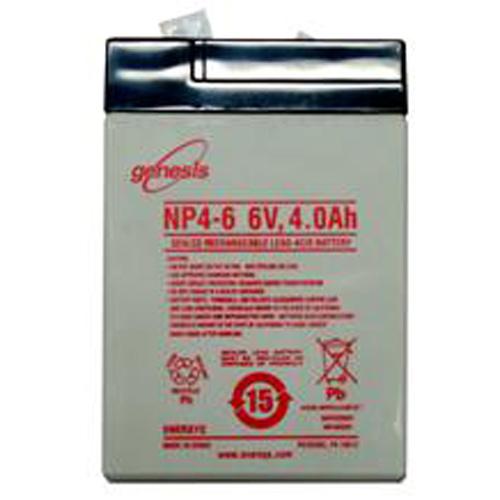

AC main (100 V to 240 V) or SLA rechargeable battery (option), approx. 80 hours (depends on usage) |
|
|
|
