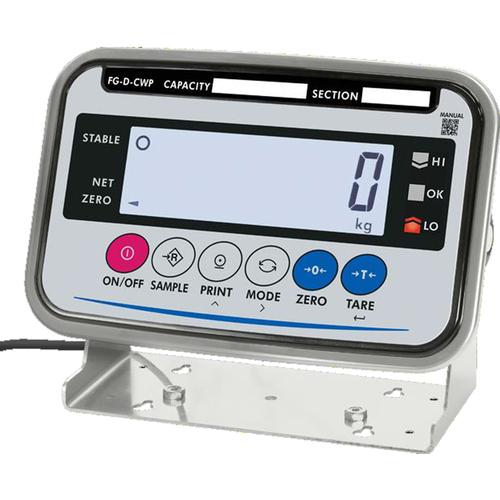

AND Weighing FG-D-CWP IP67 Weighing Indicator

A new solution for scale makers is here. This highly washable, alcohol cleanable, stainless steel indicator helps in not just designing scales that are easy to keep hygienic but also helps in making weighing highly accurate and productive in many different ways. more ...
Scales > Indicators & Remote Displays > Indicators & Remote Displays
AND Weighing FG-D-CWP IP67 Weighing Indicator

Specifications Chart

Have Questions?
Call USoremail Us
Our Staff will be glad to help

AND Weighing FG-D-CWP IP67 Weighing Indicator
FREE Ground Shipping
(48 US States Only)

Price: $475.20

Available to Ship

View Features

AND Weighing


Affordable Stainless Steel Indicator Idealfor Building Various Types of Waterproof Scales

A new solution for scale makers is here. This highly washable, alcohol cleanable, stainless steel indicator helps in not just designing scales that are easy to keep hygienic but also helps in making weighing highly accurate and productive in many different ways.

  • IP67 dust & waterproof, stainless steel (SUS304) construction In accordance with the IP67 rating of the IEC/EN standard 60529, the FG-D-CWP prevents the intrusion of water even while immersed to a depth of 1 meter for 30 minutes. It also permits no particulate matters, which can damage the device, inside the housing. The stainless steel surface is resistant to rust/corrosion and scratches, and even allows cleaning with alcohol (diluted to 70 % or less) as well as rinse with water
  • Drive capacity of up to four 350 Oload cells with a remote sensing function The FG-D-CWP is suitable for building various sizes of scales from a small bench scale that uses a single-point load cell to a large floor scale that uses four load cells. The remote sensing function minimizes error by compensating for the effect of resistance in wires, which is especially effective when using an extended length of load cell cable or connecting multiple load cells via asumming box.
Other Useful Features
  • Freely configurable capacity and scale division (max. display resolution: 1/100,000)
  • Clearly-visible, large LCD digits (30 mm character height) with white backlight
  • Bright and multi-colored LED comparator lights for intuitive HI/OK/LO judgments
  • Power supply from either the provided AC adapter, USB port on another device, or off-the-shelf mobile battery via USB cable (3 m)
  • Capable of both data communication and power supply at the same time when connected to a PC
  • Multiple units of measure: kg, g, lb, oz, t and pcs (for counting mode)
  • Stand for setting the indicator on the floor or up on a wall at an arbitrary angle
  • Password lock and key restriction functions to avoid unwanted changes to settings
  • Impact shock detection (ISD) function to prevent errors or damage due to impact loads
  • Display hold function, Auto power ON/OFF, GLP/GMP output, etc.

Weight: 6.00 lb


Model FG-D-CWP
Input sensitivity 0.1 µV/d min. (d: scale division)
Input signal range -16 mV to 16 mV
Load cell excitation DC 5 V ±10 %, Remote sensing function included Up to 4 load cells (350 Ω) can be connected
Temperature coefficients Zero: +0.02 µV/oC typ., +0.1 µV/oC max. - Span: +3 ppm/oC typ., +15 ppm/oC max.
Nonlinearity +0.01 % of full scale
Display 7 segment LCD with white backlight (character height: 30 mm))
Display refresh rate Approx. 10 times/second
Operating environment 10oC to 40oC / 14oF to 104oF, 85 % R.H. or less (no condensation)
Power supply AC adapter*i, USB port*iior mobile battery via USB Type-A USB cable length: Approx. 3 m
Dimensions 240 (W) ×76 (D) ×155 (H) mm
Net weight Approx. 1.6 kg (including the stand)
  • *iProvided as standard
  • *iiData communication is also possible when connected to a USB port of a PC.
