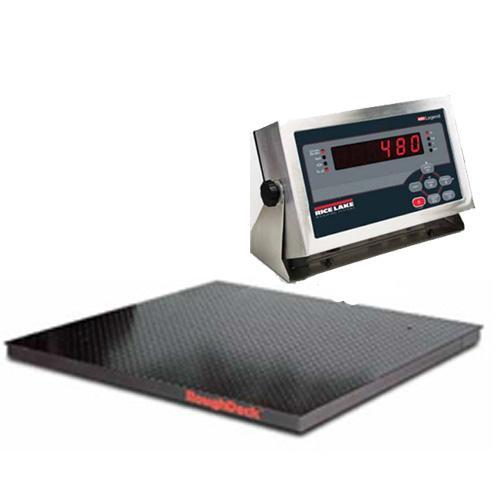

Rice Lake 155668 Roughdeck Floor Scale 4 x 4 Measurement Canada 2500 x 0.5 kg |
|
| The RoughDeck® Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 4 x 4-foot RoughDeck floor scale with one of four quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. more ... |
|
Scales >
Industrial Scales >
Floor Scales
|
|
|
|
|
|
Features
The RoughDeck® Rough-n-Ready System is a complete floor scale and indicator package. Match the durable design of our 4 x 4-foot RoughDeck floor scale with one of four quality Rice Lake indicators. Each scale and indicator arrives factory calibrated for quick setup. Calibrate and seal the scale for an NTEP-approved system. Mount the indicator remotely or use an optional floor stand. The RoughDeck Rough-n-Ready package is available in 5,000 or 10,000 lb capacities.
- Heavy-duty industrial design
- Structural steel channel frame
- Four NTEP Certified alloy steel, shear beam load cells
- 20?ft SURVIVOR® EL146HE hostile environment load cell cable with quick disconnect
- TuffSeal® JB4SS Stainless Steel, NEMA 4X
- Junction box with signal trim card
- Rugged diamond deck safety treadplate
- Four adjustable stainless steel SUREFOOT™ support feet
- Threaded eyebolt hole for easy lifting
- Package configured and calibrated for 5,000 divisions
Standard Features
- Indicator: 480 Legend Series
- Power: Battery ,115V AC Adaptor
- Construction: Mild Steel
- Deck/Top Plate: Diamond tread
- Load Cells: Factory Mutual-approved,Alloy steel, nickel-plated
- Junction Box: Internal mount, side access
- 4 adjustable stainless steel SUREFOOT™ support feet
- 20 foot EL147HE Hostile Environment Load Cell Cable
- Threaded eyebolt holes for lifting
- Approvals:NTEP CC 92-001, FM Approved Load Cells
480 Legend Indicator Features
- Large 0.8 in LED display
- Time and Date, battery backed
- NEMA 4X/IP66 stainless steel washdown enclosure
- Password protection for user and configuration changes
- Operator functions through menu key for Audit Trail, Preset Tare, Unit ID, Accumulator, Time & Date, Setpoints, Serial Communications, and Print Formats.
- Two independent serial ports, RS-232 and 20 mA
- Programmable ticket formats for Gross, Net, Accumulator, and Setpoints
- Local/Remote operation
- Hardware or Audit Trail sealed
- Filter settings for light, medium and heavy noise
- Selectable Conversion Rate and Display Update Rate
- Eight Setpoints, sequenced batch engine
- Configurable with Revolution software
- Numeric keypad
- Keyed entries for Tare and Setpoint values
Options
- Digital weight indicators
- Indicator floor stand
- Floor anchor plates
- Pit frame
- Access ramps
- Bumper guards
- Portability frames
|
2 Year Manufacture Warranty
|
Other Rice Lake 4 x 4 Measurement Canada Roughdeck Floor Scales
|
Specifications
| Model Legal for Trade Canada |
94693 |
94697 |
94694 |
94698 |
94695 |
94698 |
155668 |
155669 |
Capacity
Readability |
2500 x 0.5 kg |
5000 x 1 kg |
2500 x 0.5 kg |
5000 x 1 kg |
2500 x 0.5 kg |
5000 x 1 kg |
2500 x 0.5 kg |
5000 x 1 kg |
Legal for Trade
Indicator: |
Measurement Canada AM-5300, Class IIII 10,000d and IIIHD 20,000d |
Measurement Canada AM-5554, Class III/IIIHD 10,000d |
Measurement Canada AM-5892, Accuracy Class III/IIIHD, 10 000d
OIML R76/2006-NL1-12.48, T5692, TC8322 Accuracy Class III, 10 000d |
Legal for Trade
Base |
>Measurement Canada AM-4827, 5000d |
| Indicator |
IQ plus 590 |
IQ plus 390 |
420 Plus |
480 Legend |
| Display |
1 in LCD |
1 in LCD |
1 in LCD |
1 in LCD |
0.8 in LED |
0.8 in LED |
0.8 in LED |
0.8 in LED |
| Size |
4ft x 4ft |
| Keyboard |
19-key flat membrane panel, tactile feel |
6-key flat membrane panel, tactile feel |
21-key flat membrane panel |
6-key flat membrane panel, embossed keys, tactile fee |
| Communications |
RS-232 |
2 x RS-232 |
| Package Includes |
Indicator, Roughdeck 4ft x 4ft floor scale, 20ft EL147HE Hostile Environment Load Cell Cable and quick disconnect |
|
|
|
|
|
|
|
