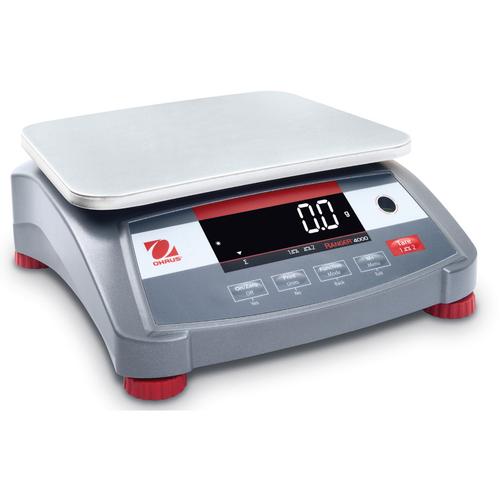

Ohaus R41ME6 - Ranger 4000 Compact Bench Scale 15 x 0.0005 lb Legal for Trade 15 x 0.005 lb |
|
The multipurpose Ranger 4000 is the right tool for industrial weighing applications in which value is important but quality, durability, and functionality cannot be compromised. Portable with die-cast metal housing and a rechargeable battery, this scale is equipped with seven application modes that can provide results for many industrial weighing and measurement needs. more ... |
Industrial Scales >
Bench Scales >
Compact Bench Scale
|
Specifications Chart
View Full Detail Page
|
 Legal for Trade |
Have Questions? Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:15 lbx 0.0005 lb
Legal For Trade: 15 lb x 0.005 lb
Pan Size
11.8 x 8.9 in
|
|
|
|
|
|
|
Optional Warranty
|
Features
The Best Value for Durable Industrial Weighing - The multipurpose Ranger 4000 is the right tool for industrial weighing applications in which value is important but quality, durability, and functionality cannot be compromised. Portable with die-cast metal housing and a rechargeable battery, this scale is equipped with seven application modes that can provide results for many industrial weighing and measurement needs.
Standard Features Include -
- Full Metal Housing Offers Strength and Protection and Maximizes Product Life — Sturdy metal housing and slip-resistant rubber feet provide protection and stability necessary for tough industrial weighing, while extending the product’s usable life.
- A Bright White LED Display Makes the Scale Usable Even in Dim Conditions — The largest, white LED display on any scale in its class, combined with checkweighing LEDs and audible indicators, make Ranger 4000 highly functional in loud and dim industrial settings.
- User-Friendly Software Makes Ranger 4000 Very Easy to Operate — Spend time on your work, not on mastering the technicalities of the scale. SmarText™ software makes scale setup and use very simple.
- Extremely Fast One Second Stabilization Time Increases Efficiency — With a stabilization time of just one second, Ranger 4000 works efficiently to enhance productivity levels.
Metal Housing Ensures Protection
With die-cast sealed metal housing and slip-resistant rubber feet, Ranger 4000 was built to maximize product life and withstand heavy duty use to ensure accurate operation in industrial environments.
White LED Display Illuminates Results
Ranger 4000’s bright white 1.5" LED display is 57% larger than displays
on other scales in its class. Coupled with checkweighing LEDs and
audible indicators, Ranger 4000 was built to stand up to the challenges
often faced in industrial weighing.
Intuitive Software Supports Simple Navigation
Powered by SmarText™ software, Ranger 4000’s simple navigation
works in tandem with the scale’s dedicated keys to create a user
experience that requires minimal effort.
Rapid Stabilization
Ranger 4000 produces accurate results within one second. The rapid
stabilization virtually eliminates your wait time and allows you to move
at a pace determined by you and not your weighing equipment. Work
efficiently and with confidence to ensure accurate results. Maximize
your throughput without sacrificing accuracy with the Ranger 4000
Application Modes
- Weighing — Determine the weight of items in the selected unit of measure.
- Percent Weighing — Measure the weight of a sample displayed as a percentage of a pre-established Reference Weight.
- Parts Counting — Count samples of uniform weight.
- Check Weighing/Percent/Counting — Compare the weight/percent/count of a sample against target limits. Choose from Checkweight, Checkpercent or Checkcount
- Accumulation — Totalization of weight, count or percent. Calculates total accumulated weight, count or percent of separate items.
- Dynamic Weighing — Weigh an unstable load. Scale takes an average of weights over a time period.
- Display Hold — Manually or automatically holds the last stable weight on the balance display. Activated by setting time interval of Dynamic Weighing to zero.
Standard Connectivity with Flexible Options
Standard RS232 with optional Ethernet, second RS232 and USB offers
additional data transfer capabilities and allows connection to multiple
peripherals.
Connect a large, high capacity platform through the 2nd platform
option, utilizing the precision and advanced features of Ranger 4000
for high capacity weighing.
Internal Power Supply and Rechargeable Battery
Say goodbye to being restricted to working only near power outlets!
Ranger 4000 is equipped with a rechargeable lead acid battery that
can provide power for more than 100 hours! It can also be powered
through the easy connect power cord that takes up minimal space and
automatically adapts to different power line voltages and frequencies,
eliminating disruptions in workflow due to power outages and shortages.
Metrology
The Ranger 4000 meets the Class III requirements of OIML R76, NIST
Handbook 44 and Canada Weights and Measures Regulations.
Dimensions X:
17.00
Y:
8.00
Z:
16.00
Weight:
12.00 lb
|
2 Year Manufacture Warranty
|
Other Ohaus Ranger 4000 Compact Bench Scale
Image |
Name |
Price |
|
|
$798.21
|
|
|
$837.90
|
|
|
$798.21
|
|
|
$798.21
|
|
Specifications
Model |
R41ME3 |
R41ME6 |
R41ME15 |
R41ME30 |
Capacity × Readability |
6 × 0.0002 lb 3 × 0.0001 kg 3,000 × 0.1 g 96 × 0.005 oz |
15 × 0.0005 lb 6 × 0.0002 kg 6,000 × 0.2 g 240 × 0.01 oz |
30 × 0.001 lb 15 × 0.0005 kg 15,000 × 0.5 g 480 × 0.02 oz |
60 × 0.002 lb 30 × 0.001 kg 30,000 × 1 g 960 × 0.05 oz |
Legal for Trade Capacity × Readability |
6 × 0.002 lb 3 × 0.001 kg 3,000 × 1 g 96 × 0.05 oz |
15 × 0.005 lb 6 × 0.002 kg 6,000 × 2 g 240 × 0.1 oz |
30 × 0.01 lb 15 × 0.005 kg 15,000 × 5g 480 × 0.2 oz |
60 × 0.02 lb 30 × 0.01 kg 30,000 × 10 g 960 × 0.5 oz |
Legal for Trade |
OIML R76 (R76/2006-NL1-15.21) NTEP (CC 13-022) Measurement Canada (AM-5907C) |
Maximum Displayed Resolution |
1:30,000 |
Certified/Approved Resolution |
1:3,000 |
Construction |
Stainless steel platform, Die cast aluminum housing |
Weighing Units |
kg, g, lb, oz, lb:oz |
Application Modes |
Weighing, Percent Weighing, Parts Counting, Checkweighing, Checkcounting, Checkpercent, Accumulation, Dynamic Weighing/Display Hold |
Display |
1.5-inch / 40mm high White LED display, 6-digit, 7-segment |
Checkweighing Indicators |
3 LED (yellow, green, red) with configurable operation and alert beeper |
Keyboard |
5 mechanical keys |
Zero Range |
4% or 20% of full scale capacity |
Tare Range |
Full capacity by subtraction |
Stabilization Time |
1 second |
Auto-Zero Tracking |
Off, 0.5, 1 or 3 divisions |
Safe Overload Capacity |
150% of capacity |
Power |
100-240 VAC / 50-60 Hz internal universal power supply, internal rechargeable lead acid battery |
Battery Life |
100 hours continuous use with 12 hour recharge time |
Calibration |
External, with user-selectable calibration weight |
Interface |
Built-in RS232, optional 2nd platform, 2nd RS232, USB, Ethernet |
Operating Temperature Range |
14°F to 104°F / -10°C to 40°C |
Platform Size (W × L) |
11.8 × 8.9 in / 300 mm × 225 mm |
Scale Dimensions (W × L × H) |
12.4 × 12.9 × 4.8 in / 315 × 327 × 122 mm |
Shipping Dimensions (W × L × H) |
15.6 × 17.6 × 7.7 in / 397 × 447 × 195 mm |
Net Weight |
13 lb / 5.9 kg |
Shipping Weight |
15.9 lb / 7.2 kg |
Other Standard Features and Equipment Stainless steel platform, integral weigh-below hook, sealed front panel, menu lock switch, up front level
indicator, adjustable leveling feet, selectable environmental and auto-print settings, stability indicator,
overload and underload indicators, low battery indicator, auto shut-off, auto tare
Compliance
- Metrology: OIML R76 (R76/2006-NL1-15.21); NTEP (CC 13-022); Measurement Canada (AM-5907C)
- Product Safety: IEC/EN 60950-1; CAN/CSA C22.2 60950-1; UL 60950-1
- Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic environments; FCC Part 15 Class B; Industry Canada ICES-003 Class B
- Other: WEEE/ROHS
Optinal Accessories
- 2nd Platform, Kit - 30037446
- Ethernet,Kit - 30037447
- Second RS232 Kit - 30037448
- USB Kit - 30037449
- In Use Cover - 30240697
- SF40A Impact Printer with Cable - 30064203
|
|
|
* within the 48 continental US States
|
Optional Accessories
more info
|
Ohaus SF40A (30064203) Portable Dot-Matrix Impact Printer
OHAUS Value in a Full-Featured, Portable Printer The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
- Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
- Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
- Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
|
|
more info
|

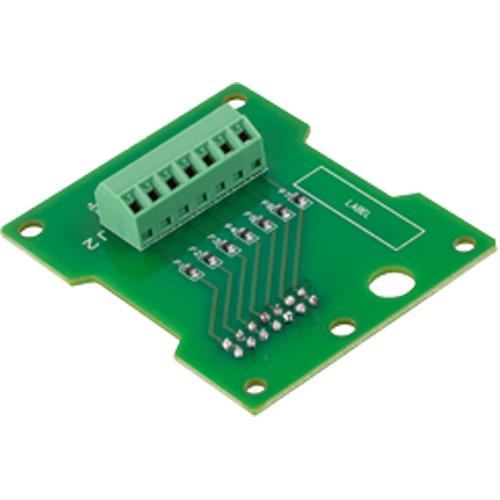

Ohaus 30037449 USB Interface Kit for VALOR 7000 - Ranger
Ohaus 30037449 VALOR 7000 - Ranger 3000 USB Interface Kit
|
|
more info
|
Ohaus 30037447 Ethernet Interface Kit for VALOR 7000 and Ranger
Ohaus 30037447 VALOR 7000 Ethernet Interface Kit
|
|
more info
|
Ohaus 30037448 Second RS232 Interface Kit for VALOR 7000 Ranger
Ohaus 30037448 VALOR 7000 Ranger 3000 Second RS232 Interface Kit
|
|
more info
|
Ohaus 30037446 Second Scale Kit for Ranger
Ohaus 30037446 Second Scale Kit for Ranger Count 3000
|
|
|
|
|
|
|
