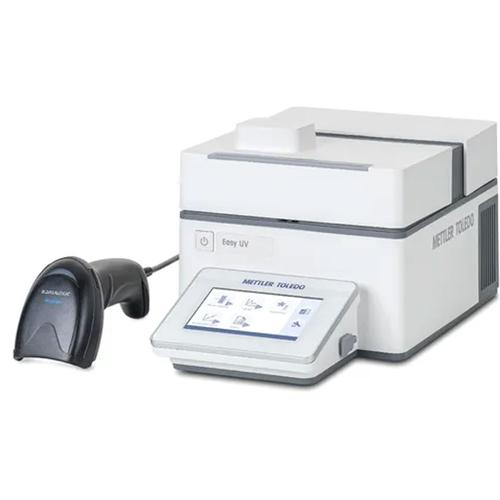

Mettler Toledo 30997809 Spectrophotometer Easy UV ScanStart |
|
| Easy UV and Easy VIS instruments both offer 3-in-1 functionality and are designed to greatly facilitate routine spectroscopic workflows. The instruments are simple and easy-to-use and assure accurate, repeatable measurements. Built-in methods also eliminate calculation and transcription errors. These versatile instruments help you more ... |
|
Laboratory Equipment >
Spectrophotometers >
Spectrophotometers
|
Note: This product can only be shipped Ground Delivery.
|
|
|
|
|
|
|
|
Features
Easy UV and Easy VIS instruments both offer 3-in-1 functionality and are designed to greatly facilitate routine spectroscopic workflows. The instruments are simple and easy-to-use and assure accurate, repeatable measurements. Built-in methods also eliminate calculation and transcription errors. These versatile instruments help you
- Enjoy fast, compliant color measurement. Includes 30 color scales (e.g. CIELAB, APHA, Gardner, etc.).
- Avoid errors. PathDetect™ securely checks the path length so your results are accurate.
- Fast and flexible water testing: The SQKitReader™ accessory provides access to over 150 Spectroquant® water test kit methods. ScanStart™ bundles, including a barcode scanner, are the flexible solution for using NANOCOLOR® test kits.
- Access methods easily. Built-in features such as a favorite list and LongClick™ speed up routine analyses.
- Clean up quickly thanks to a washable drip tray.
- Measurement versatility - Conventional spectrophotometry, color measurements, and water analyses can be performed using one instrument. This saves bench space and reduces your investment in equipment and service. Exchangeable XPathHolders™ allow you to shift quickly between seven different path lengths to suit a wide application and concentration range.
- Efficient accuracy - Photometric data is automatically calculated using pre-programmed methods so you obtain results quickly (e.g. concentration or tristimulus values). Methods that are compliant to standards such as ASTM, DIN, ISO, and EPA eliminate the need for post-measurement calculation and data transcription to achieve accurate results efficiently
- Data management - Data acquisition, storage, and display are efficiently performed by EasyDirect™ UV/VIS PC software. Result data can also be automatically exported to a memory stick or integrated into an external centralized data management system (e.g. LIMS)
- Verified, up-to-date methods - Software updates, competent application support, and verified methods allow you to update the instrument to support new analytical needs. EasyDirect™ customers receive an automated notification when a new update is available for download.
- Intuitive operation - The intuitive user interface with workflow guidance and integrated tutorials allow you to simply plug-and-measure. Additional functions such as closing the SmartLid™ to automatically start the measurement, increase productivity, and avoid time-consuming task repetition.
|
|
Other Mettler Toledo Spectrophotometer Easy
|
Specifications
| Model |
UV/Vis
30997809 |
Vis
30997810 |
| Light source |
Xenon flash lamp |
Tungsten lamp |
| Detector |
Dual silicon photodiodes |
| Optical system |
Dual beam with reference detector |
| Spectral bandwidth (SBW) [nm] |
3 |
4 |
| Photometric display range [A] |
–3.0 ... +5.0 |
| Photometric accuracy [A] |
at 0.5 A |
+ 0.002 |
| at 1.0 A |
+ 0.005 |
| at 2.0 A |
+ 0.005 |
| at 2.5 A |
+ 0.010 |
| Photometric repeatability at 1 A (neutral density filter) [A] |
< 0.001 |
| Wavelength range [nm] |
190–1,000 |
330–1,000 |
| Wavelength accuracy (holmium oxide) [nm] |
+ 1.5 |
| Wavelength repeatability (holmium oxide) [nm] |
< 0.5 |
| Stray light [%T] |
at 340 nm (sodium nitrite) |
< 0.1 |
< 0.1 |
| at 220 nm (sodium iodide) |
< 0.5 |
- |
| at 198 nm (potassium chloride) |
< 2.5 |
- |
| Scanning speed [nm/min] |
max 2,000 |
max 2,800 |
| Noise [A] |
at 0 A |
< 0.001 |
| at 1 A |
< 0.002 |
| at 2 A |
< 0.004 |
| Drift [A/h] |
< 0.002 |
| Baseline flatness [A] |
+ 0.003 |
| Applications and methods |
Max. user-defined methods |
80 |
| Built-in color scales (e.g. CIELAB) |
30 |
25 |
| NANOCOLOR® 1) water testing methods |
Free and available on METTLER TOLEDO website |
| Spectroquant® 2) water testing methods |
Covers all test kits (>150 methods) |
| NuNumber of user-defined methods in favorite list |
10 |
| Firmware and method upgrade |
Free and available on METTLER TOLEDO website |
| Automatic path length detection |
Enabled |
| PC software |
EasyDirect™ UV/VIS |
| Result |
Automatic export to USB (.csv file) |
Enabled |
| Automatic export to EasyDirect (.xml file) |
Enabled |
| Cuvette dimensions supported by the XPathHolders™ |
10, 16, 20, 30, 40, 50 mm and 1 inch |
| Display |
4.3" capacitive touchscreen |
| Connectivity |
USB-A |
× 3 (keyboard, mouse, barcode reader, printer) |
| USB-B |
× 1 (EasyDirect™ PC software) |
| Pogo Pin |
× 1 (SQKitReader™ for water testing methods) |
| Languages |
Bahasa Indonesia, Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Spanish, Thai, Turkish |
| Dimensions (width × depth × height mm) |
201 × 362 × 176 (7.9 × 14.2 × 6.9 inches) |
| Weight (kg) |
4.25 |
| Power requirements |
AC to DC converter included, 100–240 V, 50–60 Hz |
|
|
|
|
* within the 48 continental US States
|
|
