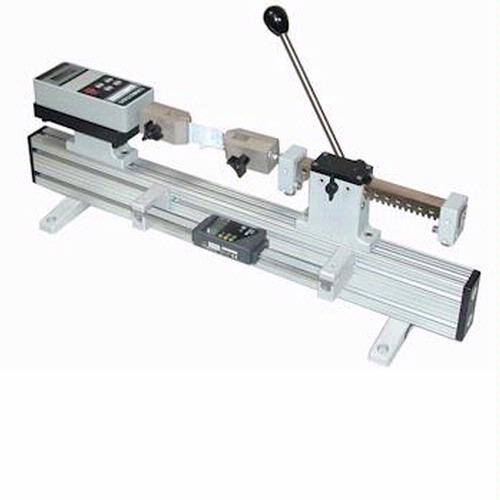

Mark-10 TSA750H Lever Operated Manual Test Stands, 750 lb, Horizontal

The lever operated Force Measurement Test Stand Model TSA is a perfect solution for quick-action pull testing and compression testing of up to 750 lb of tensile or compressive force. Made of rugged, machined aluminum components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The test stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations.

Features / Specifications:

• Maximum force: 750 lb [3.75 kN]
• Maximum travel, with stops: 3.75 [95 mm]
• Maximum travel, without stops: 6 [152 mm]
• Travel rate: 3 [76.2 mm]/lever revolution
• Compatible with all Mark-10 force gauges, accessories and grips
• Loading lever can be positioned in 30° increments for ease of operation
• Threaded holes for bench mounting
• Adjustable travel stops
• Precision ground rack and pinion mechanism
• Adjustable wear plates for smooth, precise motion
• Optional digital travel display
• Friction brake
• The TSA / TSAH is supplied with a tool kit, medium hook, large hook, and a 2 diameter compression plate

Optional Equipment

• A wide range of force gauges and gripping fixtures
• Digital travel display (shown right) - 6 [152 mm] travel, 0.0005 [0.01 mm] resolution, 0.001 [0.03 mm] accuracy, SPC output for automated data collection
• Horizontal / wall mounting kit - Set of mounting legs that attach to the test stand column in place of the base
• Custom modifications - Special modifications are available, including custom-designed fixtures, increased column length, and more. Call 1-800-336-5900 for more information.
