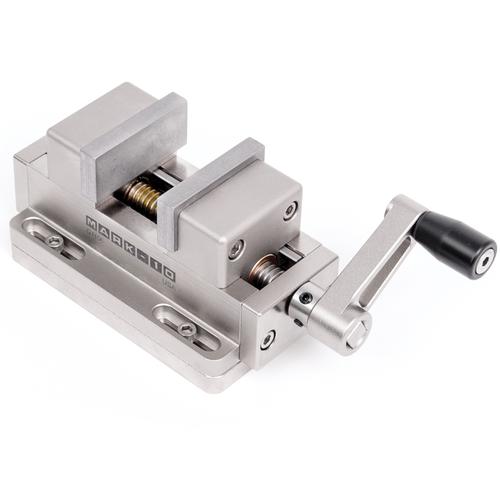

Mark-10 G1106 Self-centering Vise Grip |
|
| This general purpose self-centering vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N). Smooth removable jaws can be field-modified to improve sample gripping characteristics as required for pull testing applications. more ... |
|
Test Equipment >
Grips and Attachments >
Vise - Parallel Jaw
|
|
|
|
|
|
Features
This general purpose self-centering vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF (2,500 N). Smooth removable jaws can be field-modified to improve sample gripping characteristics as required for pull testing applications.
Use this grip with a choice of test stand and force gauge to create a complete testing system.
Replaces Model G1106.
- Maximum tension force: 500 lbF (2,500 N)
- Removable jaws
- Celf-centering design
- Ergonomic lever, smooth operation
- Mounts directly to the following test stands: ESM303, ESM750, ESM1500, ES30, TSC1000, TSF. Also compatible with ES10/ES20 when ordered with optional AC1060 mounting plate.
- Weight: 3.00 lb [1.36 kg]

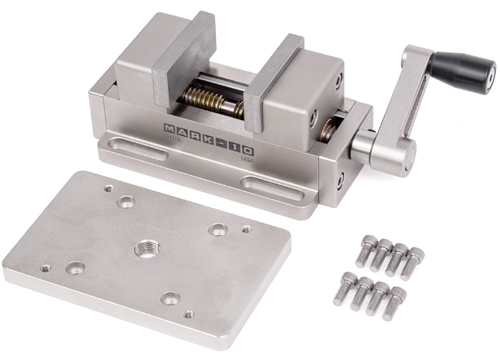

The G1106 vise is shipped as shown at left, and includes the following accessories:
- (1) Vise assembly
- (1) Test stand adapter plate
- (8) #10-32 mounting screws
Weight:
6.00 lb
|
|
|
|
|
|
