Mark-10 G1096 High Capacity Bend Fixture for ASTM C393, C1161, D790

This family of bend fixtures is designed for 3-point and 4-point bend testing of plastics, metals, ceramics, tubing, and many other materials. Two base sizes are available, along with an upper anvil, and optional roller diameters. Use a base-anvil combination for 3-point bend testing or two bases for 4-point bend testing. The fixtures conform to ASTM C393, C1161, D790, and related standards.

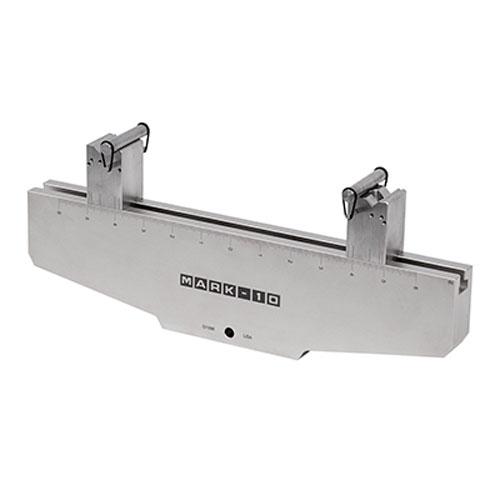

Bases feature movable blocks with multiple V-grooves to accept several roller diameters. 10 mm dia. rollers are included, and other sizes are available.

The bases feature engraved rulers, dual-graduated with an inch scale on one side and mm scale on the other. Integrated eye end receptacles facilitate mounting to load cells, force gauges, and test stands. The bases also include thru-holes and mounting screws for direct mounting to certain test stands.

• Designed for 3-point and 4-point bend testing
• Accommodate a broad sample size range
• Rugged design
• Dual graduated rulers - in and mm
• Compatible with the following test stands: ESM303, ESM1500, TSFM500-DC, ES30, TSA750 (with optional loading table), TSC1000, TSF. Recommended for use with a motorized test stand.
• May be used with eye end adapters or mounted to test stands with mounting screws (except anvil - eye end mounting only).

*Including two blocks and 10 mm dia. rollers
