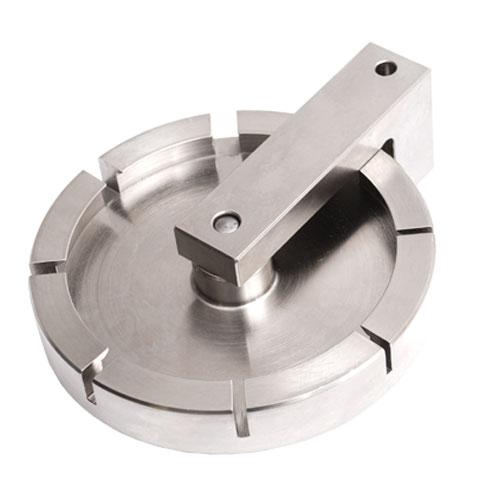

Mark-10 G1093 High Capacity Wire Terminal Grip |
|
The grip secures wire terminals, cables, connectors, and other samples for high capacity wire terminal pull tests. more ... |
Test Equipment >
Grips and Attachments >
Wire - Rope - Yarn - Tubing
|
|
|
|
Features
The grip secures wire terminals, cables, connectors, and other samples for high capacity wire terminal pull tests.
To operate, simply rotate the turret wheel to the desired size. For unique sample shapes and sizes, the wheel may be machined as required.
Includes an integrated eye end, and requires an eye end adapter to mount to Mark-10 force gauges, load cells, and test stands.
FEATURES
- Groove sizes: 0.08 (2.0), 0.12 (3.0), 0.16 (4.0), 0.20 (5.0), 0.24 (6.0), 0.31 (8.0), 0.39 (10.0), 0.46 (11.8)
- Capacity: 2,000 lbF (9 kN)
- Weight: 6.4 lb (2.9 kg)
Weight:
6.00 lb
|
|
|
|
|
