Mark-10 G1076 Wire Terminal Grip |
|
This grip is designed for wire pull testing applications. The grip secures wire terminals, cables, connectors, and other samples for wire pull tests. Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.25 in. (6.3 mm). more ... |
Test Equipment >
Grips and Attachments >
Wire - Rope - Yarn - Tubing
|
|
|
|
Features
This grip is designed for wire pull testing applications. The grip secures wire terminals, cables, connectors, and other samples for wire pull tests. Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.25 in. (6.3 mm). Simply rotate the turret wheel to the desired size. Integrated magnets hold the wheel in place to help prevent accidental rotation to a different sized groove. For unique sample shapes and sizes, a blank machinable terminal fixture is also available.

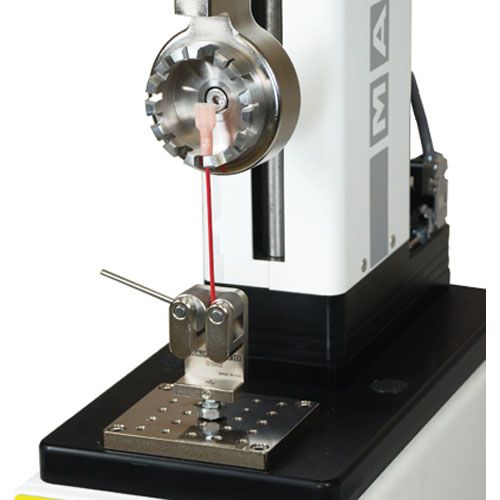

Use this grip with the G1002 dual roller grip, and choice of test stands and force gauges to create a complete terminal and crimp testing system.
FEATURES
- Wire diameter range: 0 - 0.25 in (6.3 mm)
- Groove sizes [in(mm)]: 0.01 (0.3), 0.03 (0.7), 0.04 (1.0), 0.06 (1.5), 0.08 (2.0), 0.09 (2.3), 0.11 (2.8), 0.12 (3.0), 0.14 (3.5), 0.15 (3.8), 0.17 (4.3), 0.18 (4.5), 0.20 (5.1), 0.21 (5.3), 0.23 (5.8), 0.25 (6.3)
- Rugged design
- Capacity: 200 lbF (1,000 N)
Weight:
1.00 lb
|
|
|
|
|
* within the 48 continental US States
|
Optional Accessories
more info
|
Mark-10 G1002 Dual Roller Grip
This cam grip secures the ends of wire, cable, and tubing samples for pull testing. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. Use this grip with a G1001 wire terminal grip, force gauge, and test stand to create a complete terminal and crimp testing system.
Model |
Capacity (lb / N) |
Weight (lb / kg) |
A |
B |
C |
D |
E |
F |
G |
G1002 |
200 / 1000 |
0.19 / 0.09 |
1.18 / 30.0 |
2.0 / 50.8 |
0.75 / 19.1 |
0-0.25 / 0-6.3 |
0.25 / 6.4 |
0.64 / 16.3 |
1.0 / 25.4 |
|
|
|
|
|
|
