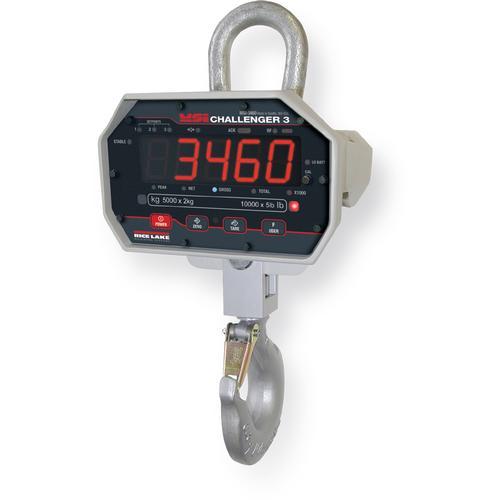

MSI MSI-3460C1K CHALLENGER 3 Crane Scale Legal For Trade 1000 x 0.5 lb

The MSI-8000 is a wireless remote display for viewing and control of any RF compatible MSI-3460 Challenger 3 or MSI-4260 Port-A-Weigh overhead crane scale, or MSI-7300 Dyna-Link 2 tension dynamometer. Just one MSI-8000 communicates wirelessly with up to four compatible MSI devices

Compact and portable, the MSI-8000’s heavy-duty NEMA 4/IP65 industrial-grade enclosure makes it ideal for use in nearly any operating environment. The MSI-8000 features a large five-digit 1.25 inch (31 mm) LCD display for improved visibility, and a user-friendly keypad for simple configuration and operation. Standard function keys include: Power, Zero, and Tare and three programmable keys for functions like Peak Hold, Totalizing, Unit Select, Print and Setpoints.

The MSI-8000 operates on a license-free 2.4 GHz frequency with a typical application range exceeding 100 feet (33 m). Power is supplied by an internal rechargeable lithium polymer battery, which provides up to 24 hours continuous use between charging. An integrated RS-232 data port allows the MSI-8000 to easily interface with peripheral devices such as printers, PCs and scoreboards

Fortified by the acclaimed reputation of its star precursor, MSI-8000HD is the heavyduty version of the reputable handheld MSI-8000 RF Remote Display. The milled anodized aluminum, IP68-rated, enclosure is mountable in either a direct panel mount or optional tilt stand. The full waterproof construction resists most elements making it especially appealing to the petro-chemical, energy, marine, and aerospace industries. Fully compatible with all MSI ScaleCore-based crane scales and dynamometers, the MSI-8000HD provides utmost versatility for any application.

Fully ergonomic with user-definable function keys and a bold six-digit one inch display ease usability and readability. Process control, safety and other systems benefit with optional relays installed to optimize workflow and operator ease. The MSI-8000HD-1 and MSI-8000HD-2 may be used as a fully functional weigh meter with the standard inclusion of a precision 24-bit A/D. Additionally, the MSI-8000HD-2 has RF capability to transmit data to a secondary MSI-8000 or non-A/D MSI-8000HD.

Wi-Fi, Ethernet, or serial option cards are available for direct connections to networks and computers for advanced traceability and reporting

• IP68 Rugged Milled Aluminum enclosure
• Membrane Keypad for User Control Functionality
• User Definable Function Keys for added versatility

• Indicator or RF remote display with six-digit 1.0 in (26.4 mm) LCD screen
• IP68 milled aluminum enclosure
• Membrane keypad for remote-control functionality
• User definable function keys for added versatility
• Compatible with all ScaleCore™-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001
• Swivel tilt stand

Prominently display weight, numeric data and messages with the LaserLight2 remote display. A super-bright LED display with non-glare lens provides sharp seven-segment, six-digit characters that are easy to read. Never lose visibility in dark conditions or experience wash-out in direct sunlight. Simply power up a LaserLight2 remote display in your application and the benefits are clearly visible.

A redesigned enclosure provides easy access to internal components. The front panel swings open for convenient setup and service, yet is securely held in place. The weather-tight, IP66 rated enclosure provides superior protection for worry-free daily use. The external keypad makes navigating configuration options safe and easy with up, down, left and right arrow keys as well as Enter, Setup, Mode, Set and Learn buttons.

Available in four-inch or six-inch character sizes, LaserLight2 remote displays include annunciators for gross, net, pounds, and kilograms. For added convenience, time and date is also included.

• Six high-intensity red digits (double-row discrete LED)
• Auto Learn mode of communication protocol
• Hold displayed weight (demand input)
• Software selectable standstill mode for no updates while in motion
• Mirror (reverse image) feature, auto mode
• Durable weather-tight IP66 enclosure
• Adjustable daylight/night intensity
• Non-glare contrast filtered lens
• RS-232, 20 mA, and RS-485 communications
• Auto sensing 115/230 VAC power supply
• PEMs locations accomdate flange or VESA mounting brackets
• Polyethylene breather vent inhibits internal moisture buildup
• Red, green and arrow lights in Stop/Go model

Prominently display weight, numeric data and messages with the LaserLight2 remote display. A super-bright LED display with non-glare lens provides sharp seven-segment, six-digit characters that are easy to read. Never lose visibility in dark conditions or experience wash-out in direct sunlight. Simply power up a LaserLight2 remote display in your application and the benefits are clearly visible.

A redesigned enclosure provides easy access to internal components. The front panel swings open for convenient setup and service, yet is securely held in place. The weather-tight, IP66 rated enclosure provides superior protection for worry-free daily use. The external keypad makes navigating configuration options safe and easy with up, down, left and right arrow keys as well as Enter, Setup, Mode, Set and Learn buttons.

Available in four-inch or six-inch character sizes, LaserLight2 remote displays include annunciators for gross, net, pounds, and kilograms. For added convenience, time and date is also included.

• Six high-intensity red digits (double-row discrete LED)
• Auto Learn mode of communication protocol
• Hold displayed weight (demand input)
• Software selectable standstill mode for no updates while in motion
• Mirror (reverse image) feature, auto mode
• Durable weather-tight IP66 enclosure
• Adjustable daylight/night intensity
• Non-glare contrast filtered lens
• RS-232, 20 mA, and RS-485 communications
• Auto sensing 115/230 VAC power supply
• PEMs locations accomdate flange or VESA mounting brackets
• Polyethylene breather vent inhibits internal moisture buildup
• Red, green and arrow lights in Stop/Go model

The MSI-8004HD has all of the heavy duty versatility of the MSI-8000HD with the added beneft of extreme high visibility in indoor and outdoor applications. The MSI-8004HD features 1.5-inch high characters on its LED display. The display is available in either red/green, allowing the controller to be clearly visible in many environments. The red/green display can be confgured to change color based on weight and setpoint conditions, making the MSI-8004HD a natural t for safety-critical industrial applications.

The milled anodized aluminum, IP65-rated enclosure is mountable in either a direct panel mount or included tilt stand. The MSI-8004HD is highly adaptable for integration with overhead crane weighing systems, providing visibility for crane cab and ?oor operators. The MSI-8004HD is compatible with all MSI-ScaleCore™ crane scales, dynamometers and TranSend™ systems. The meter version can also be used with any standard load cell or scale base, supporting up to four independent measurement channels.

• LED display
• IP65 rugged milled aluminum enclosure
• Backlit membrane keypad for user functioning and controls
• Tilt bracket included
• Color changing display (via setpoints)

Wi-Fi, Bluetooth® or serial RF options are available for direct connections to networks and computers. The MSI-8004HD includes user-depnable function keys, and optional relays for safety, operator interfaces and process work ?ow. The MSI-8004HD meter can also be a functional weigh controller with the inclusion of a precision, four-channel multi-deck 24-bit A/D.

Options (Contact Scalesgalore)
• Expanded relay outputs
• Battery pack for mobile operation
• Second radio module for additional network connectivity
