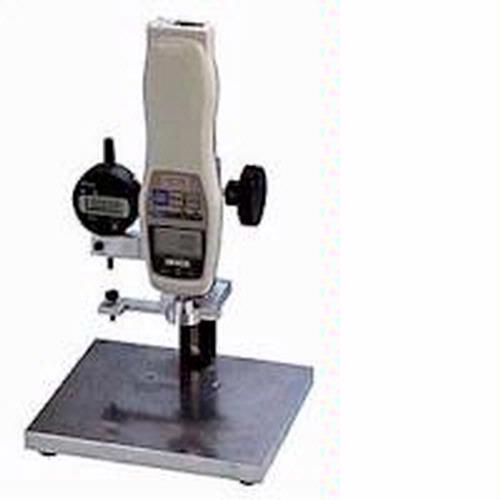

Imada SV-05 Micro Movement Wheel Test Stand, 4.4 lbs

• One stand does both compression (push) and tension (pull) tests
• Reduced backlash and fine movement for highly precise measurements
• Stroke 2.75 (travel distance per knob rotation 0.9”/22.5mm)
• Maximum Load 4.4 lbs (2 kg)

The SV-05S Micro-Movement Test Stand is designed for small deflection measurements such as membrane switches and other small micro switches. The minimal backlash is ideal for bi-directional testing where both the compression and tension measurements are made during the same test. The standard model SV-05S includes a highly accurate digital distance meter. Both models accept any Imada force gauge with a maximum capacity of 4.4 lbs (2 kg).

Distance Meter Specifications
