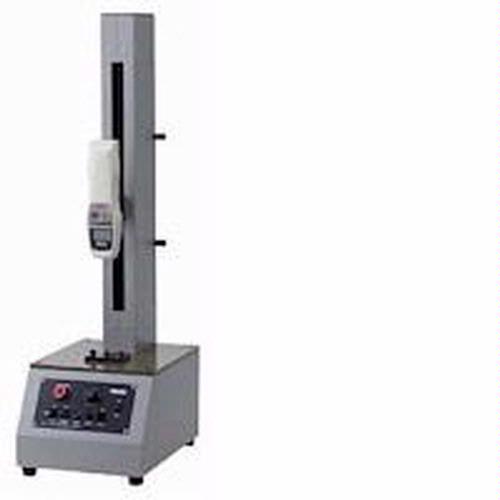

Imada MV-110 Vertical Motorized Test Stand
Vertical Motorized test stand with auto-cycle and maximum 110 lb load more ...

Imada MV-110 Vertical Motorized Test Stand

Have Questions?

email Us

Our Staff will be glad to help

Features

One stand for both compression (push) and tension (pull) tests
Maximum clearance 9
(with extender 14)
Maximum load 110 lbs
Screw feeder for smooth, positive movement
Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
No programming required
Optional digital distance meter

Speed Configurations

Standard Speed	0.4 ~ 11.5 / min
Optional High Speed	0.8 ~ 23.6 / min
Optional Low Speed	0.26 ~ 8 / min

MV-110 test stands offer consistent and reliable testing. Combination of screw system and state of the art brushless motor provides extremely smooth and powerful operation over the entire speed range. The MV-110 accepts any of the standard range Imada force gauges. Quick switch and Emergency Stop features are also included
