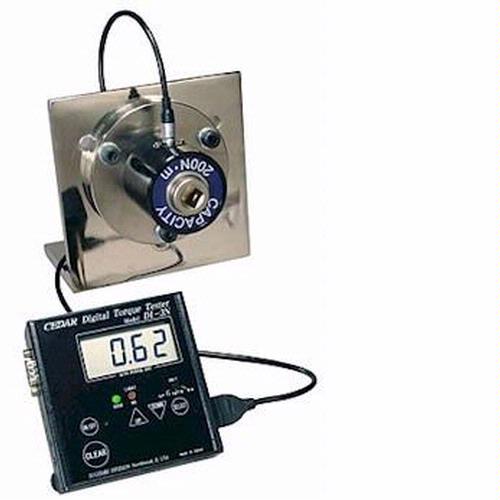

Imada DI-3N-1P-5 Digital Torque Tester with Remote Sensors, 0.3 - 44 lb-in |
|
| Imada DI-3N-IP digital torque testers with a flanged remote sensor calibrates torque tools up to 362 lb-ft with accuracy of +/- 5% FS. Measures in peak, real time and peak down modes. 400 internal memory and RS-232 more ... |
|
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Features
Imada DI-3N-IP Digital Torque Testers with flanged remote sensor calibrates torque tools up to 362 lb-ft. It has an accuracy of ± .5% F.S., ± 1 LSD and measures torque in Peak, Real Time and Peak Down modes (selectable). Do not use with impact tools (See the DI-1M impact wrench torque tester).
Use the 400 internal memory for peak data recall or RS-232 download for analysis by Imada data acquisition software SW-1S.
-
Heavy duty metal construction
-
lbf-in, kgf-cm, N-cm, or lbf-ft, kgf-m, N-m (see table below)
-
Peak, Real Time and Peak Down measuring modes (selectable)
-
Accuracy: ±0.5% F.S. ±1 LSD ( 32° to 100°F)
-
400 data memory for recall or for SPC download
-
Both clockwise and counterclockwise operation
-
RS-232 output for SPC capability (peak data only)
-
Runs on internal NiCad batteries (8 hour use)
-
AC adapter/charger included
Digital Torque Tester Ranges
Accuracy ± 0.5% F.S., ±1 LSD
|
Model |
Capacity |
Drive |
| |
lbf-in |
kgf-cm |
N-cm |
|
| DI-3N-1P5 |
0.30~44.00 |
0.30~50.00 |
3.0~500.0 |
1/4" |
| DI-3N-1P50 |
3.0~440.0 |
3.0~500.0 |
30~5000 |
3/8" |
| DI-3N-1P200A |
30~1800 |
30~2000 |
3.0~200.0 (N-m) |
1/2" |
| |
lbf-ft |
kgf-m |
N-m |
|
| DI-3N-1P200 |
3.0~145.0 |
0.30~20.00 |
3.0~200.0 |
1/2" |
| DI-3N-1P500 |
3.0~362.0 |
0.30~50.00 |
3.0~500.0 |
3/4" |
Weight:
10.00 lb
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
