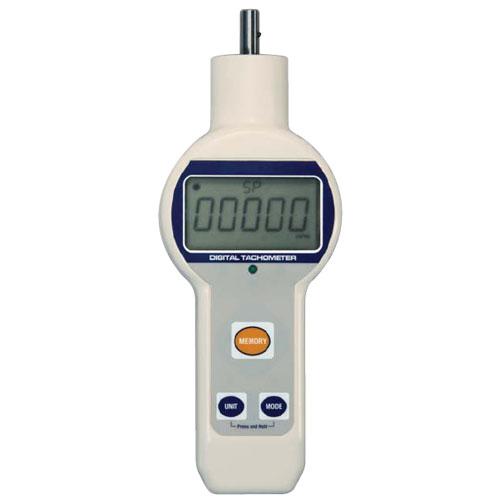

Hoto Instruments EHT-601 Digital Tachometer / Lengthmeter rechargeable batteries & charger |
|
| The EHT-600 tachometer features exceptional resolution at low speeds and statistics. It also features four measuring modes: Real time displays the current value, Maximum displays the highest value, Minimum displays the lowest value and Mean displays the average value taken during the test.rechargeable batteries & charger more ... |
|
Test Equipment >
Tachometers >
Tachometers
|
|
|
|
|
|
Features
The EHT-600 tachometer features exceptional resolution at low speeds and statistics. It also features four measuring modes: Real time displays the current value, Maximum displays the highest value, Minimum displays the lowest value and Mean displays the average value taken during the test. Its built with a ergonomic metal housing and operates on two standard AA batteries
- Rugged metal housing
- Ergonomic design fits comfortably in your hand and lessens fatigue
- Four measuring modes: Real time, maximum, minimum and mean
- Auto measuring range of 0 to 25,000 rpm with up to 0.01 rpm resolution up to 2,000 fpm using the optional 12" wheel
- 15 different measuring units: RPM, rev/sec, FPM, in/min, yd/min, in/sec, m/min, cm/min, cm/sec, revolutions, ft, in, yd, m, cm
- Last reading recall and 99 data memory
- Auto statistics: Max, Min and Mean
- Easy-to-read 5 digit 0.47" (12 mm) high LCD l Low battery indicator
Weight:
5.00 lb
|
|
Other Hoto Instruments Digital Tachometer / Lengthmeter
|
Specifications
| Specifications |
| Model |
EHT-600 |
EHT-601 |
EHT-602 |
EHT-603 |
| Tach, cone & funnel adapters, carrying case |
Included |
Included |
Included |
Included |
| 12" Wheel |
- |
- |
Included |
Included |
| 4-AA rechargeable batteries & charger |
- |
Included |
- |
Included |
| Measuring Range |
0.40 - 25000 RPM (floating decimal point)
0.40 - 2000.0 ft/min (w/12" wheel) |
| Accuracy: |
0.01% of reading ± 1 digit |
| Display: |
5 digit LCD 12mm Character Height |
| Measuring Unit* |
Speed Mode: RPM, rev/sec, FPM, in/min, yd/min, in/sec, m/min, cm/min, cm/sec
Counter Mode: revolutions, ft, in, yd, m, cm |
| Measuring Mode: |
MEAN, MAX, MIN (speed measure mode) |
| Memory: |
Short Term Auto Memory: MAX, MIN, MEAN and last 9 data
Long Term On-Demand memory: 99 data |
| Display Update: |
0.5 sec or 1.0 sec selectable |
| Power: |
2 - AA Battery, Approx. 80 hrs continuous operation |
| Indicators: |
LOW BATT, Units, MAX, MIN, MEAN and memory location |
| Operating Temp: |
0 - 45°C (32 - 113°F) |
| Construction: |
Die-cast aluminum housing |
| Standard Accessories: |
Cone adapter, funnel adapter, 2-AA Batteries, NIST traceable Certificate |
| Optional Accessories: |
12" wheel (surface speed measuring wheel is necessary to measure linear speed), 3-1/2" Extension Shaft |
|
|
|
|
|
|
| |
|
|
|
|
|
