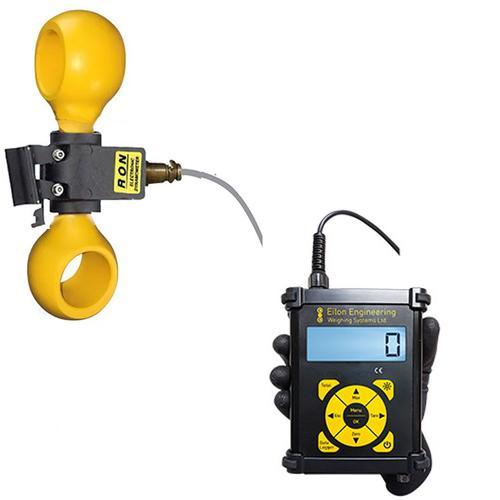

Eilon Engineering Ron2125S01 1t Wired Dynamometer for Shackles 2000 x 0.5 lb

Robust aluminum indicator with backlit 1”/25mm display

Exceedingly small and lightweight, the Ron 2125 is a high accuracy (0.1% of full scale) portable wired dynamometer that is perfect for low headroom applications.

Display can be attached to the load cell for convenience (up 12.5t capacities)

Often used in offshore, wind turbines maintenance and other heavy industries.

90 degree shackle hole design reduces bending for increased accuracy and safety.

Up to 2000 hours of battery life.

Fatigue rated load cells produced from aerospace steel for safety and long working life.

Internal dampening mounts for protecting electronics from external shock.

Additional options for data logging, additional displays, serial data output and more. 40 years of measuring excellence.

• Warranty: 5 year
• Portable: Lightweight and small. Available with Pelican™ carrying case.
• Highly Accurate: ± 0.1% of full range - important for early overload detection.
• Readable: Larger digits and backlit display
• Flexible: Indicator can be hand-held or attached to load cell (up 12.5t)
• Excellent battery life: Up to 2000 Hours (3x AA batteries)
• Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies
• Meets Standards: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1-2017, ASME B30.26 and IEC 61508.
• Robust: Heavy duty designs with shock absorbing mechanisms.
• Unique: Shackle holes offset 90 degrees reduce external moments for greater safety and accuracy.
• Minimal Headroom loss: Smallest on the market - important for indoor applications.
• Advanced options: Auto/Manual Data Logger, RS232, Additional Displays.
• Short delivery time: In most cases 48-72 hours.
• More than 40 years in the market with repeat customers such as NASA, Boeing, Cirque du Soleil, Disney, GE, Lockheed Martin, other Fortune 500 companies, as well as numerous small businesses.

• 1 or 2 user-adjustable set points
• Additional 0.5"/12mm LCD display with cable connection to indicator or wireless
• Additional 1"/25mm LCD display with cable connection to indicator or wireless
• Additional 2"/50mm LCD display with cable connection to indicator or wireless
• Additional 5"/125mm LED display with cable connection to indicator or wireless
• Additional extension cable in 15ft/5m increments
• Analog output: 0 to 3V
• Analog output: 4 to 20 mA
• Robust sealed carrying case: Pelican or equivalent.
• Dampened display for unstable load
• Automatic/Manual Data Logger - Up to 50,000 measurements
• IP 67 load cell with special off-shore capability
• Longer extension cable in 15ft/5m increments
• Number of measurements per second: 1, 2, 3, factory set
• Real-time clock: date, hour, minute, second adds time stamp to RS-232 output
• Rechargeable batteries with an external charger
• Rope falls multiplier, user selectable
• RS-232 - continuous or on demand data output, user-selectable
• RS-485 - continuous or on demand data output, user-selectable
• Totalizer
• Totalizer with Data Logging
• Wireless communication to additional display or PC
• USB
