Name: Eilon Engineering Ron2125H10 10t Wired Crane Scale 20000 x 10 lb
Brand: Eilon Engineering
SKU: 62467
Price: 2907.63 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

Eilon Engineering Ron2125H10 10t Wired Crane Scale 20000 x 10 lb
Featuring extremely long battery life, the Ron 2000 can operate up to 2000 hours on AA disposable batteries. Made from aerospace steel, the Ron 2000 includes fatigue rated load cells for increased safety. Unique in its design, the Ron 2000 features 90 degrees between shackle hooks for increased safety and accuracy by reducing bending of the load cell. more ...

Industrial Scales > Crane Scales & Dynamometers > Digital Crane Scales

Eilon Engineering Ron2125H10 10t Wired Crane Scale 20000 x 10 lb

Specifications Chart View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

Eilon Engineering Ron2125H10 10t Wired Crane Scale 20000 x 10 lb
FREE Ground Shipping
(48 US States Only)

Price: $2,907.63

Available to Ship

Optional Accessories

	Eilon Engineering RS-232 Output w/ DB-9 to USB Adaptor for Ron2501S, Ron2501H, Ron2150S, Ron2125, Ron2000H or Ron2000S , $266.49

	Eilon Engineering Automatic/Manual Data Logger w/ RS232 and USB Adaptor for Ron2501S, Ron2501H, Ron2125S or Ron2000S , $466.36

	Eilon Engineering Rechargeable batteries for Ron2125S, Ron2000H or Ron2150S , $78.04

	Eilon Engineering IP67 Offshore Sealing for Ron2125S, Ron2000H or Ron2150S , $148.47

View Features

Eilon Engineering
SKU: Ron2125H10

Features

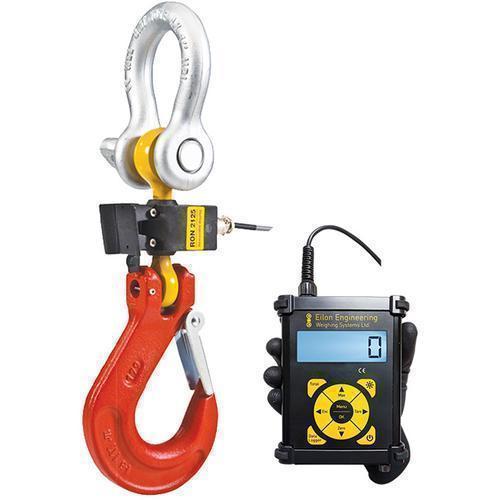

Ron 2125 Wired Crane Scale with 1"/25mm Attachable Display Robust aluminum indicator with backlit 1”/25mm display Ron 2125 is a high accuracy (0.1% of full scale) crane scale designed for use in heavy industries. Display can be attached to the load cell for convenience (up 12.5t capacities) Often used in offshore, wind turbines maintenance and other heavy industries. 90 degree design reduces bending for increased accuracy and safety. Up to 2000 hours of battery life. Fatigue rated load cells produced from aerospace steel for safety and long working life. Internal dampening mounts for protecting electronics from external shock. Additional options for data logging, additional displays, serial data output and more. 40 years of measuring excellence

Warranty: 5 years
Portable: Lightweight and small.
Highly Accurate: ± 0.1% of full range - important for early overload detection.
Readable: Larger digits and backlit display
Flexible: Indicator can be hand-held or attached to load cell (up 12.5t)
Excellent battery life: Up to 2000 Hours (3x AA batteries)
Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies
Meets Standards: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1-2017, ASME B30.26 and IEC 61508.
Robust: Heavy duty designs with shock absorbing mechanisms.
Minimal Headroom loss: Smallest on the market - important for indoor applications.
Advanced options: Auto/Manual Data Logger, RS232, Additional Displays.
Short delivery time: In most cases 48-72 hours
More than 40 years in the market with repeat customers such as NASA, Boeing, Cirque du Soleil, Disney, GE, Lockheed Martin, other Fortune 500 companies, as well as numerous small businesses.

Safety factor: Load cell body - 5:1. Hook - at least 4:1
Accuracy: 0.1% of full range.
Calibration: User calibration. Initial factory calibration, fully traceable (certified).
Load Cell Material: high-strength, aerospace quality, alloy steel, polyurethane coated.
Proof Load: Each system proof-loaded to 200% of capacity (certified)
Display: 6 digits, 1" (25mm) liquid crystal display. Overload warnings (100%/130%), Max (peak hold), low battery indication, Gross/Net. Refresh rate 1Hz.
Cable: 15” / 5m cable.
Sampling Rate: 200 per second.
Functions: Zero. Tare. Battery charge level indication. Low battery warning. Max. (peak hold). Sleep mode, wakes automatically when loaded.
Units: User selectable units (metric tons, short tons, kgs., Ibs., Newtons, Deca-Newtons, Kilo-Newtons.
Housing: Aluminum indicator, ABS load cell.
Temperature Range:Load cell: -15°F to +175°F (-25°C to +80°C).
Indicator: -4°F to +158°F (-20°C to +70°C).
Environmental: IP65 (Optional IP67 Load Cell).

OPTIONS - Please Call 718-336-5900 for more Info

1 or 2 user-adjustable set points
Additional 0.5"/12mm LCD display with cable connection to indicator or wireless
Additional 1"/25mm LCD display with cable connection to indicator or wireless
Additional 2"/50mm LCD display with cable connection to indicator or wireless
Additional 5"/125mm LED display with cable connection to indicator or wireless
Additional extension cable in 15ft/5m increments
Analog output: 0 to 3V
Analog output: 4 to 20 mA
Dampened display for unstable loads
Automatic/Manual Data Logger - Up to 50,000 measurements
IP 67 load cell with special offshore capability
Longer extension cable in 15ft/5m increments
Number of measurements per second: 1, 2, 3, factory set
Real-time clock: date, hour, minute, second adds time stamp to RS-232 output
Rechargeable batteries with an external charger
RS-232 - continuous or on demand data output, user-selectable
RS-485 - continuous or on demand data output, user-selectable
Totalizer
Totalizer with Data Logging
USB

Weight: 30.80 lb

5 Year Manufacture Warranty

Other Eilon Engineering Ron 2125H Wired Crane Scales with 1 inch Display

Ron2125H005 0.5t Wired Crane Scale 1000 x 0.5 lb $2,459.96	Ron2125H01 1t Wired Crane Scale 2000 x 1 lb $2,465.30	Ron2125H012 1.25t Wired Crane Scale 2500 x 1 lb $2,471.53	Ron2125H016 1.6t Wired Crane Scale 3200 x 2 lb $2,476.87	Ron2125H02 2t Wired Crane Scale 4000 x 2 lb $2,481.32
Ron2125H025 2.5t Wired Crane Scale 5000 x 2 lb $2,521.37	Ron2125H03 3t Wired Crane Scale 6000 x 2 lb $2,554.30	Ron2125H0315 3.15t Wired Crane Scale 6300 x 5 lb $2,573.88	Ron2125H05 5t Wired Crane Scale 10000 x 5 lb $2,745.65	Ron2125H10 10t Wired Crane Scale 20000 x 10 lb $2,907.63 You are viewing this product
Ron2125H12 12.5t Wired Crane Scale 25000 x 10 lb $3,066.94	Ron2125H15 15t Wired Crane Scale 30000 x 10 lb $3,126.57	Ron2125H20 20t Wired Crane Scale 40000 x 20 lb $3,674.81	Ron2125H25 25t Wired Crane Scale 50000 x 20 lb $4,500.73	Ron2125H30 30t Wired Crane Scale 60000 x 20 lb $5,202.94
Ron2125H315 31.5t Wired Crane Scale 63000 x 20 lb $5,440.57

Specifications

Model	Capacity in Metric Tons	Capacity x Readability	Type	Cable length	Weight
Ron2125H005	0.5t	1000 x 0.5 lb	Wired	16 ft / 5 m	13.2 LB
Ron2125H01	1t	2000 x 1 lb	Wired	16 ft / 5 m	13.2 LB
Ron2125H012	1.25t	2500 x 1 lb	Wired	16 ft / 5 m	13.2 LB
Ron2125H016	1.6t	3200 x 2 lb	Wired	16 ft / 5 m	13.2 LB
Ron2125H02	2t	4000 x 2 lb	Wired	16 ft / 5 m	13.2 LB
Ron2125H025	2.5t	5000 x 2 lb	Wired	16 ft / 5 m	13.2 LB
Ron2125H03	3t	6000 x 2 lb	Wired	16 ft / 5 m	13.2 LB
Ron2125H032	3.2t	6400 x 5 lb	Wired	16 ft / 5 m	13.2 LB
Ron2125H05	5t	10000 x 5 lb	Wired	16 ft / 5 m	15.4 LB
Ron2125H10	10t	20000 x 10 lb	Wired	16 ft / 5 m	37.4 LB
Ron2125H12	12.5t	25000 x 10 lb	Wired	16 ft / 5 m	37.4 LB
Ron2125H15	15t	30000 x 10 lb	Wired	55 LB
Ron2125H20	20t	40000 x 20 lb	Wired	16 ft / 5 m	55 LB
Ron2125H25	25t	50000 x 20 lb	Wired	16 ft / 5 m	140.8 LB
Ron2125H30	30t	60000 x 20 lb	Wired	16 ft / 5 m	140.8 LB
