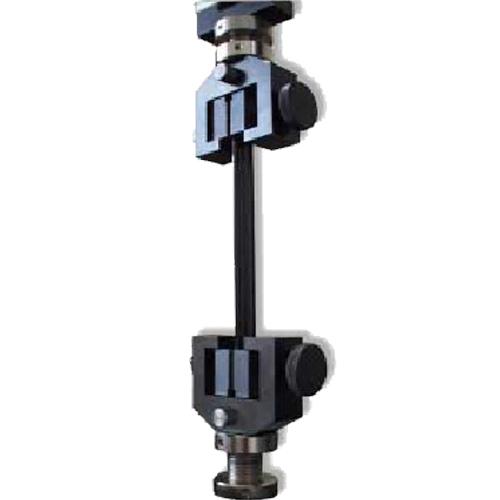

Chatillon 01-1590 (TG-74) Adjustable Rear Face Vice Grips

This vice action grip has fully adjustable faces to help with alignment. The grip is supplied with 25mm x 25mm (1.0 x 1.0 in) standard plain jaw faces. Optional jaw faces are available.

Accepts samples up to 4 (100 mm) with a maximum sample thickness of 0.5 (12 mm). Has a gripping length of 0.5 (12 mm).  Capacity: 220 lb (1 kN); Minimum load cell: 10 lb (50 N); Weight: 2.2 lb (1 kg); Length: 6 (150 mm)

Packaging: includes upper and lower grips with standard straight cut faces.

Applications: Used for the tensile testing of paper, rubber, thin plastic film, woven and non-woven textiles, and foils
