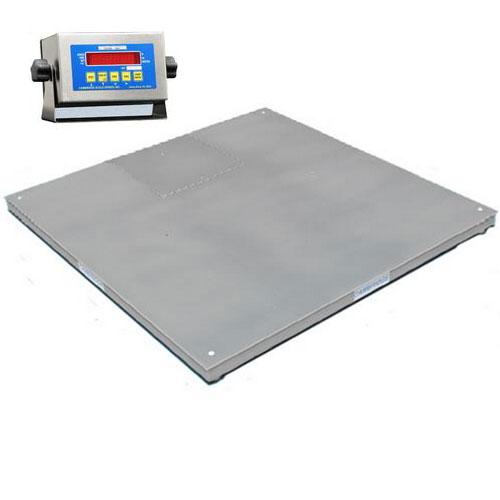

Cambridge 66060605kS MODEL SS660-OB NTEP Low Profile 60x60x3 Stainless Steel Floor Scale 5000 x 1 lb |
|
Cambridge Scale MODEL SS660 Series Low Profile Floor Scales with Shock Load Protection, 20 Foot Shielded Indicator Cable, Top Access Plastic NEMA 4x Junction Box, Heavy Diamond Tread Deck Plate ,Heavy Structural Tubular Steel Construction.
Also included is a Cambridge SSCSW-10AT Stainless Steel LED Digital Weight Indicator more ... |
Industrial Scales >
Floor Scales >
0 lb to 5000 lb
|
Specifications Chart
View Full Detail Page
|
Legal for Trade |
Have Questions? Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:5000 lbx 0.5 lb
Legal For Trade: 5000 lb x 1 lb
Pan Size
5 x 5 ft
|
Note: This product can only be shipped Ground Delivery.
|
|
This Item Contains the following items
|
|
|
|
Features
Cambridge Scale MODEL SS660 Series Low Profile Stainless Steel Floor Scales with Shock Load Protection, 20 Foot Shielded Indicator Cable, Top Access Plastic NEMA 4x Junction Box, Heavy Diamond Tread Deck Plate ,Heavy Structural Tubular Steel Construction. Including the Cambridge CSW-10AT Digital Weight Indicator are a perfect match. You will also receive a Cambridge SSCSW-10AT Stainless Steel LED Digital Weight Indicator
Cambridge Scale MODEL SS660 Stainless Steel Series Low Profile Floor Base
Cambridge Scale MODEL SS660 Series Low Profile Floor Scales with Shock Load Protection, 20 Foot Shielded Indicator Cable, Top Access Plastic NEMA 4x Junction Box, Heavy Diamond Tread Deck Plate ,Heavy Structural Tubular Steel Construction.
STANDARD FEATURES (only NTEP market models are Legal For Trade)
- 1 Part in 5,000 Accuracy (NTEP)
- 1 Part in 10,000 Accuracy (Non-NTEP)
- Heavy Structural Tubular Steel Construction
- Heavy Diamond Tread Deck Plate
- Top Access Plastic NEMA 4x Junction Box
- Top Access Leveling
- Stainless Steel Captive Ball Leveling Feet
- 150% Overload Protection
- 100% End Loading Capacity
- Low Profile Design Allows Easy Incline Ramping
- Eye-Bolt Holes for Easy Set-Up and Moving
- 20 Foot Shielded Indicator Cable
- Shielded signal and load cell cables protected inside tubular steel frame.
- Shock Load Protection
- Four Internally Mounted
Shear Beam Load Cells:
- NTEP Certified-5,000 Division
- Class III/III L
- Environmentally Protected
- IP 67 Water Resistant Rated
OPTIONS
- Remote junction box.
- Harsh environment package.
- Fork lift package
ACCESSORIES
- Easy incline ramps
- Bumper guards
- Pit forms
- Indicator/Printer stands
- Locator brackets
Cambridge SSCSW-10AT Stainless Steel LED Digital Weight Indicator Legal For Trade
- Stainless Steel NEMA 4X Enclosure with Stainless Steel Swivel Stand
- Selectable NTEP 5,000 Divisions Non-NTEP 20,000 Divisions
- Net/Gross Display Modes
- Full Range Auto Tare
- Adjustable Digital Filtering
- All Pushbutton Controls
- LED Display (Bright)
- Printer Data Output on Demand
- Clearly, Visible Center of Zero Indication on Display
- Lb/Kg Conversion
- Keypad Calibration with Audit Trail
- Weight Totalization
- 1 to 5 points of Digital Calibration
- Span Adjustment at Increasing or Decreasing Weights
- Full Range Push Button Zero
- (1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
- 120 VAC Cord with Ground
- Auto Zero Tracking
- Adjustable Motion Detection
- (6) Pin Water Tight Signal Connection
- RFI / EMI Screened
- Options: Models SSCSW-10AT
- 110 VAC Dry Contact Set Point
- Peak Weight Hold
- Digital Scroll Tare
- WiFi transmitter to customers wireless hub
Dimensions X:
60.00
Y:
60.00
Z:
3.00
|
1 Year Manufacture Warranty
|
Other Cambridge Scale Model SS660 Stainless Steel Low Profile Floor Scales
|
Specifications
Cambridge Scale MODEL SS660-OB Series Low Profile STAINLESS STEEL Floor Scales
ON-BOARD STAINLESS STEEL JUNCTION BOX
Model |
Size (Inch) |
Capacity x Readability |
Legal For Trade |
66024241kS |
24 x 24 x 3 |
1,000 x 0.1 lb |
NO |
- |
660242425kS |
24 x 24 x 3 |
2,500 x 0.2 lb |
NO |
- |
66030301kS |
30 x 30 x 3 |
1,000 x 0.1 lb |
NO |
- |
660303025kS |
30 x 30 x 3 |
2500 x 0.2 lb |
NO |
- |
66036361kS |
36 x 36 x 3 |
1,000 x 0.1 lb |
NO |
- |
660363625kS |
36 x 36 x 3 |
2500 x 0.2 lb |
NO |
- |
66036365kS |
36 x 36 x 3 |
5,000 x 0.5 lb |
NO |
- |
66048481kS |
48 x 48 x 3 |
1,000 x 0.1 lb |
NO |
- |
660484825kS |
48 x 48 x 3 |
2,500 x 0.2 lb |
NO |
- |
66048485kS |
48 x 48 x 3 |
5,000 x 0.5 lb |
#96-157A1, #06-070A1 |
5,000 x 1 lb |
660484810kS |
48 x 48 x 3 |
10,000 x 1 lb |
#96-157A1, #06-070A1 |
10,000 x 2 lb |
66048605kS |
48 x 60 x 3 |
5,000 x 0.5 lb |
#96-157A1, #06-070A1 |
5,000 x 1 lb |
660486010kS |
48 x 60 x 3 |
10,000 x 1 lb |
#96-157A1, #06-070A1 |
10,000 x 2 lb |
66048725kS |
48 x 72 x 3 |
5,000 x 0.5 lb |
#96-157A1, #06-070A1 |
5,000 x 1 lb |
660487210k |
48 x 72 x 3 |
10,000 x 1 lb |
#96-157A1, #06-070A1 |
10,000 x 2 lb |
66060605k |
60 x 60 x 3 |
5,000 x 0.5 lb |
#96-157A1, #06-070A1 |
5,000 x 1 lb |
660606010kS |
60 x 60 x 3 |
10,000 x 1 lb |
#96-157A1, #06-070A1 |
10,000 x 2 lb |
660606020kS |
60 x 60 x 4 |
20,000 x 2 lb |
#96-157A1, #06-070A1 |
20,000 x 4 lb |
660608410k |
60 x 84 x 4 |
10,000 x 1 lb |
#96-157A1, #06-070A1 |
10,000 x 2 lb |
660608420kS |
60 x 84 x 4 |
20,000 x 2 lb |
#96-157A1, #06-070A1 |
20,000 x 4 lb |
|
|
|
|
|
|
|
|
