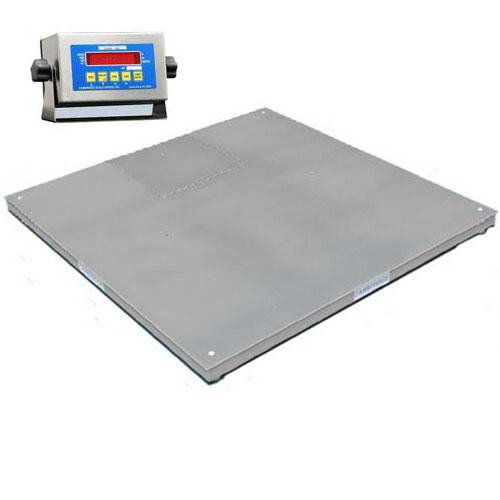

Cambridge 66048485kS MODEL SS660-OB NTEP Low Profile 48x48x3 Stainless Steel Floor Scale 5000 x1 lb |
|
Cambridge Scale MODEL SS660 Series Low Profile Floor Scales with Shock Load Protection, 20 Foot Shielded Indicator Cable, Top Access Plastic NEMA 4x Junction Box, Heavy Diamond Tread Deck Plate ,Heavy Structural Tubular Steel Construction. Also included is a Cambridge CSW-10AT Digital Weight Indicator Legal for Trade more ... |
Industrial Scales >
Floor Scales >
0 lb to 5000 lb
|
Specifications Chart
View Full Detail Page
|
Legal for Trade |
Have Questions? Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:5000 lbx 0.5 lb
Legal For Trade: 5000 lb x 1 lb
Pan Size
4 x 4 ft
|
Note: This product can only be shipped Ground Delivery.
|
|
This Item Contains the following items
|
|
|
|
Features
Cambridge Scale MODEL 660SS Series Low Profile Floor Scales with Shock Load Protection, 20 Foot Shielded Indicator Cable, Top Access Plastic NEMA 4x Junction Box, optional Heavy Diamond Tread Deck Plate , Stainless steel Type 304 construction.
STANDARD FEATURES (only NTEP market models are Legal For Trade)
- 1 Part in 5,000 Accuracy (NTEP)
- 1 Part in 10,000 Accuracy (Non-NTEP)
- “ON-BOARD” stainless steel NEMA IV, water seal rated junction box
- Smooth plate stainless steel Type 304
- Stainless steel Type 304 construction
- Capped and sealed stainless steel structural tubing
- Stainless steel IP67 waterseal rated load cells
- 20 ft. shielded signal cable
- Eye bolt lift holes for easy set-up
- 100% end loading protection
- 200% overload & shock load protection
- Easy access leveling
Shear Beam Load Cells:
- NTEP Certified-5,000 Division
- Class III/III L
- Environmentally Protected
- IP 67 Water Resistant Rated
OPTIONS
- Diamond deck plate
- Type 316 construction
- Hermetically sealed and/or "FM" approved load cells
- Fork lift skid package
- 48" indicator column (attached)
- Captive ball leveling feet
ACCESSORIES
- Ramp
- Pit form
- Bumper guard
- Bumper guard surround
- 48" indicator column (free standing)
- Lag down bracket
- Portability cart
Cambridge CSW-10AT Digital Weight Indicator Legal for Trade
- Stainless Steel NEMA 4X Enclosure with Stainless Steel Swivel Stand
- Selectable NTEP 5,000 Divisions Non-NTEP 20,000 Divisions
- Net/Gross Display Modes
- Full Range Auto Tare
- Adjustable Digital Filtering
- All Pushbutton Controls
- LED Display (Bright)
- Printer Data Output on Demand
- Clearly, Visible Center of Zero Indication on Display
- Lb/Kg Conversion
- Keypad Calibration with Audit Trail
- Weight Totalization
- 1 to 5 points of Digital Calibration
- Span Adjustment at Increasing or Decreasing Weights
- Full Range Push Button Zero
- (1) RS-232 Port for Interface with:
- Printer Output of Gross/Tare/Net
- Computer Data Output
- Scoreboard Continuous Output Alphanumeric or Numeric
- 120 VAC Cord with Ground
- Auto Zero Tracking
- Adjustable Motion Detection
- (6) Pin Water Tight Signal Connection
- RFI / EMI Screened
Options:
Models SSCSW-10AT
- 110 VAC Dry Contact Set Point
- Peak Weight Hold
- Digital Scroll Tare
- WiFi transmitor to customers wireless hub
Dimensions X:
48.00
Y:
48.00
Z:
3.00
|
1 Year Manufacture Warranty
|
Other Cambridge Scale Model SS660 Stainless Steel Low Profile Floor Scales
|
Specifications
Cambridge Scale MODEL SS660-OB Series Low Profile STAINLESS STEEL Floor Scales
ON-BOARD STAINLESS STEEL JUNCTION BOX
Model |
Size (Inch) |
Capacity x Readability |
Legal For Trade |
66024241kS |
24 x 24 x 3 |
1,000 x 0.1 lb |
NO |
- |
660242425kS |
24 x 24 x 3 |
2,500 x 0.2 lb |
NO |
- |
66030301kS |
30 x 30 x 3 |
1,000 x 0.1 lb |
NO |
- |
660303025kS |
30 x 30 x 3 |
2500 x 0.2 lb |
NO |
- |
66036361kS |
36 x 36 x 3 |
1,000 x 0.1 lb |
NO |
- |
660363625kS |
36 x 36 x 3 |
2500 x 0.2 lb |
NO |
- |
66036365kS |
36 x 36 x 3 |
5,000 x 0.5 lb |
NO |
- |
66048481kS |
48 x 48 x 3 |
1,000 x 0.1 lb |
NO |
- |
660484825kS |
48 x 48 x 3 |
2,500 x 0.2 lb |
NO |
- |
66048485kS |
48 x 48 x 3 |
5,000 x 0.5 lb |
#96-157A1, #06-070A1 |
5,000 x 1 lb |
660484810kS |
48 x 48 x 3 |
10,000 x 1 lb |
#96-157A1, #06-070A1 |
10,000 x 2 lb |
66048605kS |
48 x 60 x 3 |
5,000 x 0.5 lb |
#96-157A1, #06-070A1 |
5,000 x 1 lb |
660486010kS |
48 x 60 x 3 |
10,000 x 1 lb |
#96-157A1, #06-070A1 |
10,000 x 2 lb |
66048725kS |
48 x 72 x 3 |
5,000 x 0.5 lb |
#96-157A1, #06-070A1 |
5,000 x 1 lb |
660487210k |
48 x 72 x 3 |
10,000 x 1 lb |
#96-157A1, #06-070A1 |
10,000 x 2 lb |
66060605k |
60 x 60 x 3 |
5,000 x 0.5 lb |
#96-157A1, #06-070A1 |
5,000 x 1 lb |
660606010kS |
60 x 60 x 3 |
10,000 x 1 lb |
#96-157A1, #06-070A1 |
10,000 x 2 lb |
660606020kS |
60 x 60 x 4 |
20,000 x 2 lb |
#96-157A1, #06-070A1 |
20,000 x 4 lb |
660608410k |
60 x 84 x 4 |
10,000 x 1 lb |
#96-157A1, #06-070A1 |
10,000 x 2 lb |
660608420kS |
60 x 84 x 4 |
20,000 x 2 lb |
#96-157A1, #06-070A1 |
20,000 x 4 lb |
|
|
|
|
|
|
|
|
