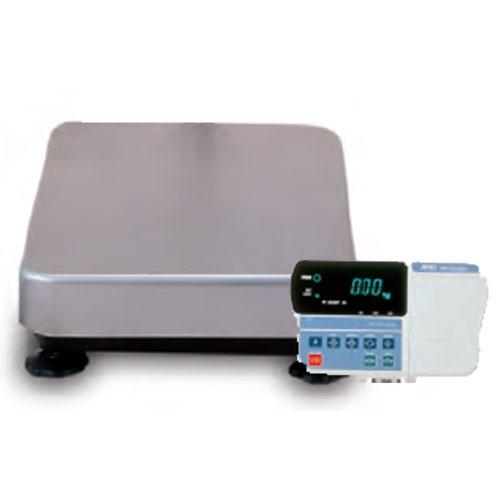

AND Weighing HV-15KGV-NC, 6-15-30 lb without Column, VFD |
|
| Triple range with either LCD or VFD display, stainless steel platform, standard RS-232 interface. Weighs in lb, kg, oz. With comparator, counting and percentage modes. Available with or without column. Legal for Trade. more ... |
|
|
|
|
|
|
|
Features
The AND Weighing HV-G Series NTEP Legal for Trade industrial platform scales provide counting, percentage, and comparator functions. These versatile platform scales are useful for packaging, shipping, pharmaceutical, and other applications.
- Comparator - Set the high and low weight targets and show HI/OK/LO on the disipaly
- Triple Range - Resolution can be changes automatically for three capacity levels
- Large and clear LCD or VFD display: 1 inch (25 mm) high digits on the LCD / 0.8 inch (20 mm on VFD
- Stainless Steel weighing pan
- Water and dust protection for Load Cell sensor: the Gore-tex® membrane wicks moisture away and keeps it away
- Optional comparator buzzer - optional comparator output sounds buzzer on selected comparator sounds
- Setpoint control for simple batching - The weighing data can be controlled at three setpoints: Full Flow, Preliminary, Zero Band outputs
- Tilting meter head - Meter head tilts on the column to adjust for the best viewing angle. Relieves neck and eye strain
- Standard RS-232C - Bidirectional RS232C interface to connect with printer or PC
- Measures in lbs, kgs, oz
- Works with WinCT Software
- Counting and percent functions
- M+ function for totaling weighing data
- Water and dust resistant
- 2 year warranty
With LCD Display:
| Model |
HV-15KGL |
HV-60KGL |
HV-200KGL |
| Price with Column |
$612 |
$660 |
$744 |
| Price without Column (-NC) |
$523 |
$572 |
$655 |
| Capacity x Readability (lb) |
30 x 0.01 |
15 x 0.005 |
6 x 0.002 |
150 x 0.05 |
60 x 0.02 |
30 x 0.01 |
500 x 0.2 |
300 x 0.1 |
150 x 0.05 |
| Capacity x Readability (kg) |
15 x 0.005 |
6 x 0.002 |
3 x 0.001 |
60 x 0.02 |
30 x 0.01 |
15 x 0.005 |
220 x 0.1 |
150 x 0.05 |
60 x 0.02 |
| Operating Temperature |
-10 C to 40 C
|
| Linearity (±g) |
5 |
2 |
1 |
20 |
10 |
5 |
100 |
50 |
20 |
| Pan Size (in/mm) |
9.8 x 9.8 /
250 x 250 |
13 x 16.7 /
330 x 424 |
15.4 x 20.9 /
390 x 530 |
| Physical Dimensions (in/mm) |
10.8 x 18.7 x 14.5 / 275 x 474 x 368
|
13 x 24.4 x 30 / 330 x 621 x 771
|
15.4 x 28 x 30.4 / 390 x 712 x 773
|
| Power |
AC adapter or 6 DD alkaline batteries (600 hrs)
|
| Approximate Weight |
13.2 lb / 6 kg
|
24.3 lb / 11 kg |
37.5 lb / 17 kg |
| Standard Accessories |
AC adapter, Display cover, Manual
|
With VFD Display:
| Model |
HV-15KGV |
HV-60KGV |
HV-200KGV |
| Price with Column |
$655 |
$699 |
$787 |
| Price without Column (-NC) |
$567 |
$612 |
$699 |
| Capacity x Readability (lb) |
30 x 0.01 |
15 x 0.005 |
6 x 0.002 |
150 x 0.05 |
60 x 0.02 |
30 x 0.01 |
5000 x 0.2 |
300 x 0.1 |
150 x 0.05 |
| Capacity x Readability (kg) |
15 x 0.005 |
6 x 0.002 |
3 x 0.001 |
60 x 0.02 |
30 x 0.01 |
15 x 0.005 |
220 x 0.1 |
150 x 0.05 |
60 x 0.02 |
| Operating Temperature |
-10 C to 40 C |
| Linearity (±g) |
5 |
2 |
1 |
20 |
10 |
5 |
100 |
50 |
20 |
| Pan Size (in/mm) |
9.8 x 9.8 /
250 x 250 |
13 x 16.7 /
330 x 4424 |
15.4 x 20.9 /
390 x 530 |
| Physical Dimensions (in/mm) |
10.8 x 18.7 x 14.5 / 275 x 474 x 368
|
13 x 24.4 x 30.4 / 330 x 621 x 771
|
15.4 x 28 x 30.4 / 390 x 712 x 773 |
| Power |
AC |
| Approximate Weight |
15.4 lb / 7 kg |
26.5 lb / 12 kg |
39.7 lb / 18 kg |
| Standard Accessories |
Display cover, Manual |
Weight:
16.00 lb
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
