Imada Cedar NTS-6 Motorized Rotating Friction Torque Tester

NTS-6 is a motorized friction torque tester that tests the smoothness of rotation of bearings, tightness of oil seals, etc. while turning the sample.

NTS-6 is a motorized friction torque tester that tests the smoothness of rotation of bearings, tightness of oil seals, etc. while turning the sample.

Torque data can be continuously output via RS-232 enabling you to display a torque profile using data acquisition software.

NTS-6 Ranges Accuracy: +1% F.S., 1LSD

Model		NTS-6-S1oz	NTS-6-S2oz	NTS-6-S5oz	NTS-6-S1	NTS-6-S2	NTS-6-S5	NTS-6-S10	NTS-6-S20
Model		$3,450.00	$3,450.00	$3,800.00	$3,450.00	$3,450.00	$3,800.00	$4,150.00	$4,350.00
Capacity	ozf-in	0.30 ~14.00	0.30 ~ 28.00	3.0 ~ 70.0	-	-	-	-	-
	lbf-in	-	-	-	0.030 ~ 0.900	0.030 ~ 1.740	0.30 ~ 4.50	0.30 ~ 9.00	0.30 ~ 17.40
	kgf-cm	-	-	-	0.030 ~ 1.000	0.030 ~ 2.000	0.30 ~ 5.00	0.30 ~ 10.00	0.30 ~ 20.00
	mN-m	-	-	-	3.0 ~ 100.0	3.0 ~200.0	-	-	-
	N-m	-	-	-	-	-	0.030 ~ 0.500	0.030 ~ 1.000	0.030 ~ 2.000
Accuracy		+1% F.S., 1LSD
Max. Speed (no-load)		85rpm	25rpm	13rpm	85rpm	25rpm	13rpm	18rpm	18rpm
Display		4 digit LCD display
Operation		Both CW and CCW motorized rotation
Measurement modes		PP: Peak Mode displays PEAK torque value that will not change until a higher value is measured. GO: Real Time Mode displays TRANSIENT torque values. RG: Output Torque Data every 1/100 seconds.
Measurement start time		Can be set up to 1 second in 0.1 second increments
Measuring time		Time can be programmed between 1 and 20 seconds
Go/No go testing		Programmable High and Low values; Green lamp (OK solid, NG blinking).
External input/output		Signal output (open collector): Go and No Go Data output: RS-232C (9600 baud) External start switch input
Power supply		AC100V~240V
Bit size		4mm diameter						HEX 6.35mm
Dimensions (indicator)		165mm W x 110mm D x 58mm H
Dimensions (detector)		28mm dia. x 155mm		37mm dia. x 195mm	28mm dia. x 155mm		37mm dia. x 195mm	40mm dia. x 235mm

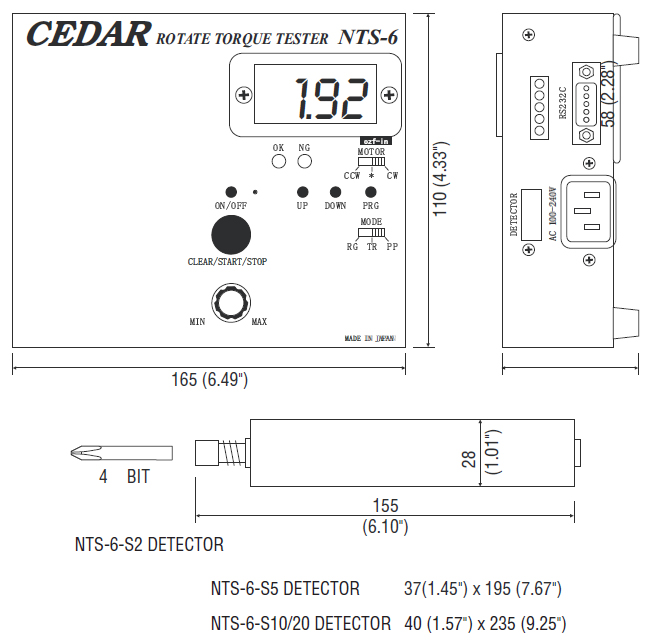

Dimensions
