Cambridge 610-10AT Bench Scales Cambridge Scales
Authorized Dealer
Cambridge Scale Works, Inc. Model 610 Series and 610-B Series single point platform scales feature a cast aluminum structure, durable painted steel shroud, and environmentally sealed load cell for accuracy and durability. 10-B Series has a 20 inch indicator column for easy eye level viewing.
Cambridge CSW-10AT-CS Legal for Trade Crane Scales
Have Questions?
Call USoremail Us
Our Staff will be glad to help

12 x 12 Specifications Chart

13 x 18 Specifications Chart

18 x 18 Specifications Chart

610 and 610-B Bases

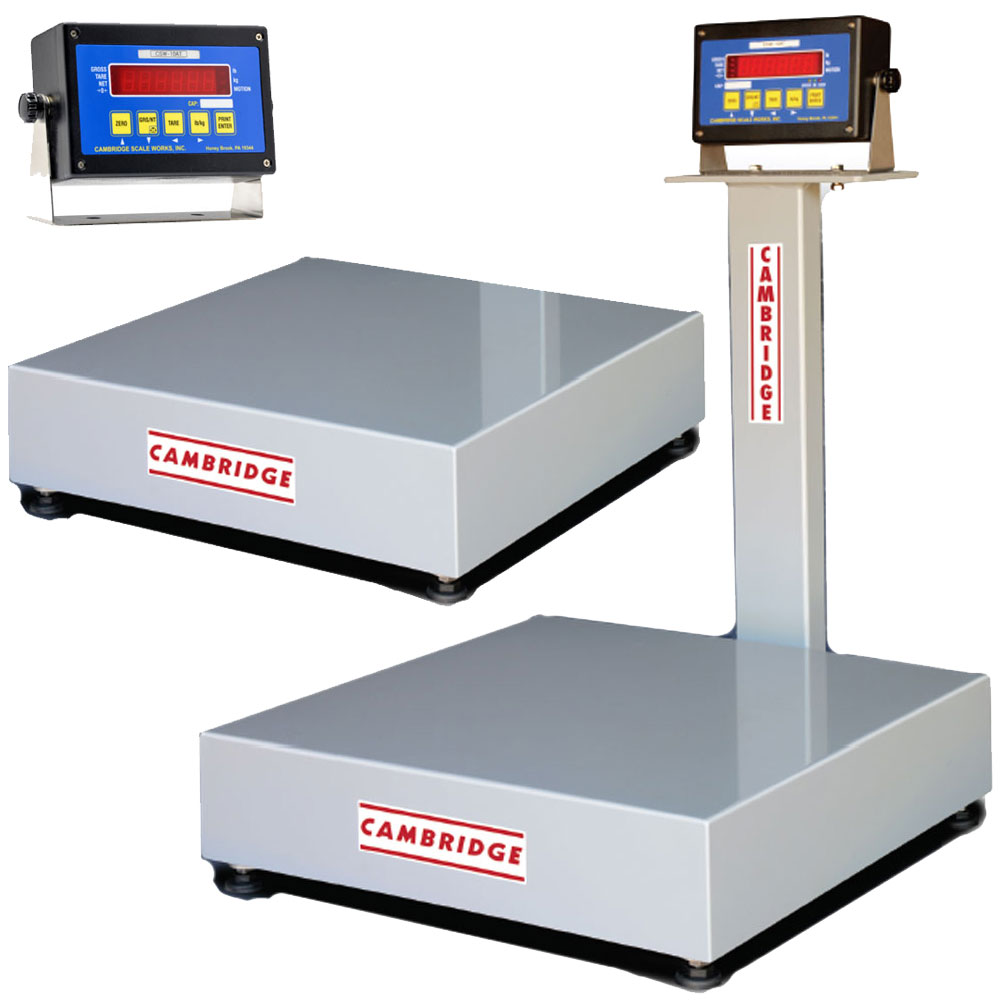

Cambridge 610-10AT Bench Scales

Price From: $909.00



Cambridge 1210-1007-00 Wifi- Transmitter to Customer Hub-802.11 B/G
Cambridge 1210-1007-00 Wifi- Transmitter to Customer Hub-802.11 B/G, add $445.50
Must be Orderd with Scale
Cambridge Scale Warning System for CSW-10AT
Cambridge Scale Warning System for CSW-10AT, add $355.50
Cambridge 110 VAC DRY Contact Set Point  for CSW-10AT
Cambridge 110 VAC DRY Contact Set Point for CSW-10AT, add $265.50
Cambridge Peak Weight Hold for CSW-10AT
Cambridge Peak Weight Hold for CSW-10AT, add $45.00
Cambridge Digital Scroll Tare for CSW-10AT
Cambridge Digital Scroll Tare for CSW-10AT, add $45.00
Cambridge 12 VDC Accessory Port Power Cable for CSW-10AT
Cambridge 12 VDC Accessory Port Power Cable for CSW-10AT, add $50.00
Cambridge Ethernet Connection for CSW-10AT
Cambridge Ethernet Connection for CSW-10AT, add $445.50
Cambridge Scale Works, Inc. Model 610 Series and 610-B Series single point platform scales feature a cast aluminum structure, durable painted steel shroud, and environmentally sealed load cell for accuracy and durability. 10-B Series has a 20 inch indicator column for easy eye level viewing.
  • 10 lb. to 500 lb. capacity.
  • High strength cast aluminum subframe.
  • Plated steel hardware.
  • Heavy gauge powder coated carbon steel cover.
  • IP 65 water seal rated aluminum load cell.
  • Ten foot indicator cable.
  • Overload and corner load protection.
  • Four vibration absorbant anti-skid leveling feet.
  • Rubber anti-vibration shock mounts.
  • Meets NIST HB-44 requirements for class III, 5000 division.
  • Model 610-B includes a 20" powder coated carbon steel column w/ 4" X 8" indicator mounting plate.
Cambridge CSW-10AT Digital Weight Indicator Legal for Trade
  • Selectable: NTEP 5,000 Division - Non-NTEP 20,000 Division
  • Net/Gross Display Modes
  • Full Range Auto Tare
  • Adjustable Digital Filtering
  • All Push-button Controls
  • LED Display (Bright)
  • Printer Data Output on Demand
  • 9 Pin Load Cell Connection
  • Simple No-Soldering Load Cell Connection
  • Clearly, Visible Center of Zero Indication on Display
  • Lb/Kg Conversion
  • Keypad Calibration with Audit Trail
  • Weight Totalization 1 to 5 points of Digital Calibration available
  • Span Adjustment at Increasing or Decreasing Weights
  • Full Range Push Button Zero
  • (1) RS-232 Port for Interface with:
  • Printer Output of Gross/Tare/Net
  • Computer Data Output
  • Scoreboard Continuous Output Alphanumeric or Numeric
  • AC Adapter Provided
  • Auto Zero Tracking
  • Adjustable Motion Detection
  • ABS Plastic Dust-Tight Enclosure with Stainless Steel Swivel Stand
Optional Features: Models CSW-10AT
  • 110 VAC Dry Contact Set Point
  • 12 VDC Accessory Port Power Cable
  • Peak Weight Hold
  • Digital Scroll Tare
  • Scale Warning System - strobe light with audible warns operator when sets limits have been exceeded
  • WiFi transmitter to customers wireless hub
  • Ethernet Connection
12 x 12 x 3.5 inch
Model 610-10AT-1212-10 610-10AT-1212-25 610-10AT-1212-50 610-10AT-1212-100 610-10AT-1212-200
Cambridge 610-10AT-1212-10 Low Profile Bench 12 x 12 Scale 10 x 0.002 lb
$909.00
Cambridge 610-10AT-1212-25 Low Profile Bench 12 x 12 Scale 25 x 0.005 lb
$909.00
Cambridge 610-10AT-1212-50 Low Profile Bench 12 x 12 Scale 50 x 0.01 lb
$909.00
Cambridge 610-10AT-1212-100 Low Profile Bench 12 x 12 Scale 100 x 0.02 lb
$909.00
Cambridge 610-10AT-1212-200 Low Profile Bench 12 x 12 Scale 200 x 0.05 lb
$909.00
Model with 20 inch Column 610-B-10AT-1212-10 610-B-10AT-1212-25 610-B-10AT-1212-50 610-B-10AT-1212-100 610-B-10AT-1212-200
Cambridge 610-B-10AT-1212-10 Bench 12 x 12 Scale with 20 Inch Column 10 x 0.002 lb
$1,021.50
Cambridge 610-B-10AT-1212-25 Bench 12 x 12 Scale with 20 Inch Column 25 x 0.005 lb
$1,021.50
Cambridge 610-B-10AT-1212-50 Bench 12 x 12 Scale with 20 Inch Column 50 x 0.01 lb
$1,021.50
Cambridge 610-B-10AT-1212-100 Bench 12 x 12 Scale with 20 Inch Column 100 x 0.02 lb
$1,021.50
Cambridge 610-B-10AT-1212-200 Bench 12 x 12 Scale with 20 Inch Column 200 x 0.05 lb
$1,021.50
Capacity x Readability 10 x 0.002 lb 25 x 0.005 lb 50 x 0.01 lb 100 x 0.02 lb 200 x 0.05 lb
Power 120 VAC Adapter / 12 VDC ±10%
Battery Operated NO
Humidity 0-90% Non-condensing
Enclosure ABS Plastic
Display High Efficient, Bright (Adjustable)LED—6 Digits—0.56" High
Input 0-15mv
Temperature 10¨ to +40¨ Celsius
Linearity 0.001% of Full Scale
Accuracy 0.001% of Full Scale
Load Cell Supply 5VDC at 150ma (8 each 350 ohm load cells)
Optional Features Scale Warning System, WiFi transmitter to customers wireless hub, Ethernet Connection
Ports RS-232
Country of Origin USA



13 x 18 x 3.5 inch
Model 610-10AT-1318-10 610-10AT-1318-25 610-10AT-1318-50 610-10AT-1318-100 610-10AT-1318-200
Cambridge 610-10AT-1318-10 Low Profile Bench 13 x 18 Scale 10 x 0.002 lb
$976.50
Cambridge 610-10AT-1318-25 Low Profile Bench 13 x 18 Scale 25 x 0.005 lb
$976.50
Cambridge 610-10AT-1318-50  Low Profile Bench 13 x 18 Scale 50 x 0.01 lb
$976.50
Cambridge 610-10AT-1318-100  Low Profile Bench 13 x 18 Scale 100 x 0.02 lb
$976.50
Cambridge 610-10AT-1318-200  Low Profile Bench 13 x 18 Scale 200 x 0.05 lb
$976.50
Model with 20 inch Column 610-B-10AT-1318-10 610-B-10AT-1318-25 610-B-10AT-1318-50 610-B-10AT-1318-100 610-B-10AT-1318-200
Cambridge 610-B-10AT-1318-10 Bench 13 x 18 Scale with 20 Inch Column 10 x 0.002 lb
$1,089.00
Cambridge 610-B-10AT-1318-25 Bench 13 x 18 Scale with 20 Inch Column 25 x 0.005 lb
$1,089.00
Cambridge 610-B-10AT-1318-50 Bench 13 x 18 Scale with 20 Inch Column 50 x 0.01 lb
$1,089.00
Cambridge 610-B-10AT-1318-100 Bench 13 x 18 Scale with 20 Inch Column 100 x 0.02 lb
$1,089.00
Cambridge 610-B-10AT-1318-200 Bench 13 x 18 Scale with 20 Inch Column 200 x 0.05 lb
$1,089.00
Capacity x Readability 10 x 0.002 lb 25 x 0.005 lb 50 x 0.01 lb 100 x 0.02 lb 200 x 0.05 lb
Power 120 VAC Adapter / 12 VDC ±10%
Battery Operated NO
Humidity 0-90% Non-condensing
Enclosure ABS Plastic
Display High Efficient, Bright (Adjustable)LED—6 Digits—0.56" High
Input 0-15mv
Temperature 10¨ to +40¨ Celsius
Linearity 0.001% of Full Scale
Accuracy 0.001% of Full Scale
Load Cell Supply 5VDC at 150ma (8 each 350 ohm load cells)
Optional Features Scale Warning System, WiFi transmitter to customers wireless hub, Ethernet Connection
Ports RS-232
Country of Origin USA



18 x 18 x 4.5 inch
Model 610-10AT-1818-50 610-10AT-1818-100 610-10AT-1818-250 610-10AT-1818-500
Cambridge 610-10AT-1818-50 Low Profile Bench 18 x 18 Scale 50 x 0.01 lb
$976.50
Cambridge 610-10AT-1818-100 Low Profile Bench 18 x 18 Scale 100 x 0.02 lb
$1,156.50
Cambridge 610-10AT-1818-250 Low Profile Bench 18 x 18 Scale 250 x 0.05 lb
$1,156.50
Cambridge 610-10AT-1818-500 Low Profile Bench 18 x 18 Scale 500 x 0.1 lb
$1,156.50
Model with 20 inch Column 610-B-10AT-1818-50 610-B-10AT-1818-100 610-B-10AT-1818-250 610-B-10AT-1818-500
Cambridge 610-B-10AT-1818-50 Bench 18 x 18 Scale with 20 Inch Column 50 x 0.01 lb
$1,269.00
Cambridge 610-B-10AT-1818-100 Bench 18 x 18 Scale with 20 Inch Column 100 x 0.02 lb
$1,269.00
Cambridge 610-B-10AT-1818-250 Bench 18 x 18 Scale with 20 Inch Column 250 x 0.05 lb
$1,269.00
Cambridge 610-B-10AT-1818-500 Bench 18 x 18 Scale with 20 Inch Column 500 x 0.1 lb
$1,269.00
Capacity x Readability 50 x 0.01 lb 100 x 0.02 lb 250 x 0.05 lb 500 x 0.1 lb
Power 120 VAC Adapter / 12 VDC ±10%
Battery Operated NO
Humidity 0-90% Non-condensing
Enclosure ABS Plastic
Display High Efficient, Bright (Adjustable)LED—6 Digits—0.56" High
Input 0-15mv
Temperature 10¨ to +40¨ Celsius
Linearity 0.001% of Full Scale
Accuracy 0.001% of Full Scale
Load Cell Supply 5VDC at 150ma (8 each 350 ohm load cells)
Optional Features Scale Warning System, WiFi transmitter to customers wireless hub, Ethernet Connection
Ports RS-232
Country of Origin USA



610 and 610-B Bases
Compatable Indicators
Model CSW-10AT Series SSCSW-10AT Series CSW-15AT Series CSW-20AT Series SSCSW-20AT Series
Price From Cambridge CSW-10AT LED Digital Weight Indicator Legal for Trade
$324.00
Cambridge SSCSW-10AT Stainless Steel LED Digital Weight Indicator Legal for Trade
$585.00
Cambridge CSW-15AT 1.5 LED Indicator Legal for Trade with Wireless Remote
$985.50
Cambridge CSW-20AT LED Indicator Legal for Trade with Full Numeric Keypad
$652.50
Cambridge SSCSW-20AT LED Indicator Stainless Steel Legal for Trade with Full Numeric Keypad
$855.00
Legal for Trade Yes Yes Yes Yes Yes
Enclosure ABS Plastic 304 Stainless Steel NEMA 4X Die Cast Aliminum Die Cast Aliminum 304 Stainless Steel Nema 4X
Ports RS-232 RS-232 RS-232 2 X RS-232 2 X RS-232
Unique Features - - Wireless Remote Control Full Numeric Keypad Full Numeric Keypad
more info more info more info more info more info
Platform Size Capacity Load Cell Approx Shipping Weight Low Profile 20" Column
12 x 12 x 3.5 Inch 10 lb 10 kg 20 lb Cambridge 610-1212-10 Low Profile Bench 12 x 12 Scale 10 lb - Base Only
$585.00
Cambridge 610-B-1212-10 Low Profile Bench 12 x 12 Scale with 20 inch Column 10 lb - Base Only
$697.50
12 x 12 x 3.5 Inch 25 lb 20 kg 20 lb Cambridge 610-1212-25 Low Profile Bench 12 x 12 Scale 25 lb - Base Only
$585.00
Cambridge 610-B-1212-25 Low Profile Bench 12 x 12 Scale with 20 inch Column 25 lb - Base Only
$697.50
12 x 12 x 3.5 Inch 50 lb 50 kg 20 lb Cambridge 610-1212-50 Low Profile Bench 12 x 12 Scale 50 lb - Base Only
$585.00
Cambridge 610-B-1212-50 Low Profile Bench 12 x 12 Scale with 20 inch Column 50 lb - Base Only
$697.50
12 x 12 x 3.5 Inch 100 lb 75 kg 20 lb Cambridge 610-1212-100 Low Profile Bench 12 x 12 Scale 100 lb - Base Only
$585.00
Cambridge 610-B-1212-100 Low Profile Bench 12 x 12 Scale with 20 inch Column 100 lb - Base Only
$697.50
12 x 12 x 3.5 Inch 200 lb 100 kg 20 lb Cambridge 610-1212-200 Low Profile Bench 12 x 12 Scale 200 lb - Base Only
$585.00
Cambridge 610-B-1212-200 Low Profile Bench 12 x 12 Scale with 20 inch Column 200 lb - Base Only
$697.50
13 x 18 x 3.5 Inch 10 lb 10 kg 30 lb Cambridge 610-1318-10 Low Profile Bench 13 x 18 Scale 10 lb - Base Only
$652.50
Cambridge 610-B-1318-10 Low Profile Bench 13 x 18 Scale with 20 inch Column 10 lb - Base Only
$765.00
13 x 18 x 3.5 Inch 25 lb 20 kg 30 lb Cambridge 610-1318-25 Low Profile Bench 13 x 18 Scale 25 lb - Base Only
$652.50
Cambridge 610-B-1318-25 Low Profile Bench 13 x 18 Scale with 20 inch Column 25 lb - Base Only
$765.00
13 x 18 x 3.5 Inch 50 lb 50 kg 30 lb Cambridge 610-1318-50 Low Profile Bench 13 x 18 Scale 50 lb - Base Only
$652.50
Cambridge 610-B-1318-50 Low Profile Bench 13 x 18 Scale with 20 inch Column 50 lb - Base Only
$765.00
13 x 18 x 3.5 Inch 100 lb 75 kg 30 lb Cambridge 610-1318-100 Low Profile Bench 13 x 18 Scale 100 lb - Base Only
$652.50
Cambridge 610-B-1318-100 Low Profile Bench 13 x 18 Scale with 20 inch Column 100 lb - Base Only
$765.00
13 x 18 x 3.5 Inch 200 lb 100 kg 30 lb Cambridge 610-1318-200 Low Profile Bench 13 x 18 Scale 200 lb - Base Only
$652.50
Cambridge 610-B-1318-200 Low Profile Bench 13 x 18 Scale with 20 inch Column 200 lb - Base Only
$765.00
18 x 18 x 4.5 Inch 50 lb 50 kg 44 lb Cambridge 610-1818-50 Low Profile Bench 18 x 18 Scale 50 lb - Base Only
$832.50
Cambridge 610-B-1818-50 Low Profile Bench 18 x 18 Scale with 20 inch Column 50 lb - Base Only
$945.00
18 x 18 x 4.5 Inch 100 lb 75 kg 44 lb Cambridge 610-1818-100 Low Profile Bench 18 x 18 Scale 100 lb - Base Only
$832.50
Cambridge 610-B-1818-100 Low Profile Bench 18 x 18 Scale with 20 inch Column 100 lb - Base Only
$945.00
18 x 18 x 4.5 Inch 250 lb 250 kg 44 lb Cambridge 610-1818-250 Low Profile Bench 18 x 18 Scale 250 lb - Base Only
$832.50
Cambridge 610-B-1818-250 Low Profile Bench 18 x 18 Scale with 20 inch Column 250 lb - Base Only
$945.00
18 x 18 x 4.5 Inch 500 lb 500 kg 44 lb Cambridge 610-1818-500 Low Profile Bench 18 x 18 Scale 500 lb - Base Only
$832.50
Cambridge 610-B-1818-500 Low Profile Bench 18 x 18 Scale with 20 inch Column 500 lb - Base Only
$945.00
Cable 10 Foot
Rated IP65
Country of Origin USA
