Adam Equipment AGB and AGF Bench and Floor Scales

Manufacturers

Adam Equipment AGB and AGF Bench and Floor Scales	Authorized Dealer

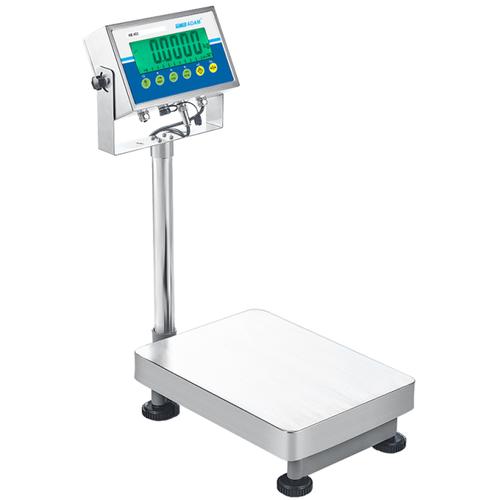

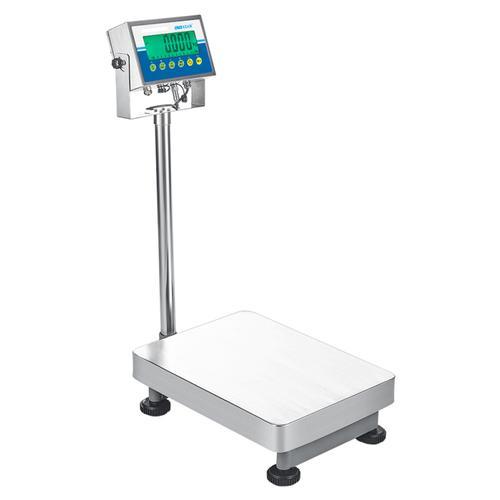

Ideal for industrial weighing and counting, AGB and AGF bench and floor scales feature sturdy construction and a rugged stainless steel indicator. The scales are available in a choice of platform sizes and a wide selection of capacities.

Adam Equipment

Specifications Chart

Have Questions?

email Us

Our Staff will be glad to help

Ideal for industrial weighing and counting, AGB and AGF bench and floor scales feature sturdy construction and a rugged stainless steel indicator. The scales are available in a choice of platform sizes and a wide selection of capacities. Operation is fast and easy, as results are readily visible on the backlit LCD that boasts 1.5in / 40mm-high digits. An internal rechargeable battery means the AGB/AGF can be used in locations where power is unavailable. Swiftly transmit results to computers or printers using the RS-232 interface.
Features and Benefits

Hardware

Color-coded keys facilitate quick recognition of the most frequently used buttons
Heavy-duty rubber feet ensure stability of unit
Large, grade 304 stainless steel pan allows swift cleaning
Rugged construction stands up to industrial use
RS-232 interface is available to provide speedy connection to computers and printers

Software

External calibration allows for verification and adjustment with weights
Hold function freezes the displayed weight, allowing time to elapse without losing the result
Checkweighing with audible alarm
Parts counting with preset sample sizes
Selectable digital filtering for animal/dynamic weighing enables consistent results for moving subjects

Display

Backlit display changes color for quick notification of checkweighing limits

Power

Rechargeable battery included for operation almost anywhere
Programmable auto power-off to save energy

Backlit LCD with sizeable digits means results are easy to read, speeding up weighing tasks Applications
Weighing
Parts counting
Percentage weighing
Checkweighing
Check counting
Display hold
Peak hold

Adam Equipment AGB and AGF Bench and Floor Scales

	Adam Equipment 600002028 AdamDU - Data Collection Program, add $90.00
	Adam Equipment - 1120014641 AIP dot matrix printer , add $310.50
	Adam Equipment - ATP Thermal Printer (1120011156), add $220.50
	Adam Equipment 700400103 RS-232 cable, add $35.00
	Adam Equipment 3074010507 RS-232 to USB Interface Cable , add $50.00
	Adam Equipment 3004013214 Light tower kit including relay box, add $706.50
	Adam Equipment 700660290 Calibration Certificate, add $81.00
Roller Deck by Size

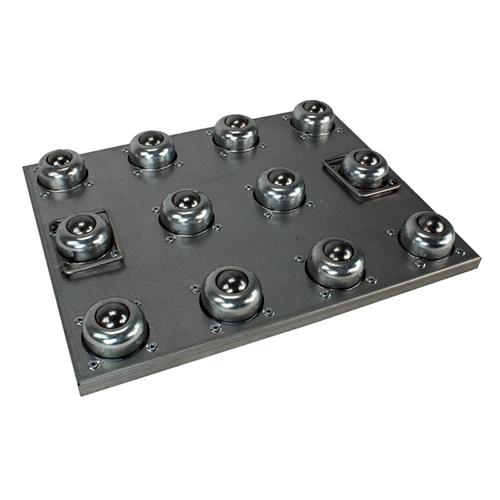

	Adam Equipment 1140013826 Roller deck 15.7 x 11.8 in, add $256.50
	Adam Equipment 1140013827 Roller deck 19.7 x 15.7 in, add $346.50
	Adam Equipment 1140013828 Roller deck 31.5 x 23.6 in, add $625.50

Specifications Chart

Model	AGB-16a	AGB-35a	AGB-65a	AGB-175a	AGB-260a	AGF-175a	AGF-350a	AGF-660a	AGF-1320a
Price	$908.00	$816.00	$876.00	$884.00	$908.00	$968.00	$968.00	$1,012.00	$1,192.00
Capacity x Readability	16 x 0.0005 lb 8 kg x 0.2 g	35 x 0.001 lb 16 kg x 0.5 g	65 x 0.002 lb 30 kg x 1 g	175 x 0.005 lb 80 kg x 2 g	260 x 0.01 lb 120 kg x 5 g	175 x 0.005 lb 80 kg x 2 g	350 x 0.01 lb 160 kg x 5 g	660 x 0.02 lb 300 x 0.01 kg	1320 x 0.05 lb 600 x 0.02 kg
Repeatability (S.D.)	0.001 lb / 0.5g	0.002 lb / 1g	0.004 lb / 2g	0.01 lb / 5g	0.02 lb / 10g	0.005 lb / 2g	0.01 lb / 5g	0.02 lb / 0.01kg	0.05 lb / 0.02kg
Linearity (+/-)	0.001 lb / 0.5g	0.002 lb / 1g	0.004 lb / 2g	0.01 lb / 5g	0.02 lb / 10g	0.01 lb / 5g	0.02 lb / 10g	0.05 lb / 0.02 kg	0.1 lb / 0.04 kg
Platform Size	11.8 x 15.7 in 300 x 400 mm					15.7 x 19.7 in 400 x 500 mm			23.6 x 31.5 in 600 x 800 mm
Stabilization Time	2 Sec
Weighing Units	g, kg, N, lb, lb:oz, oz, custom unit
Interface	RS-232
Calibration	External
Display	Backlit LCD with 1.6"/ 40mm -high digits
Power supply	12VDC 800mA adapter / Internal rechargeable battery
Operating temperature	-10^o to 40^oC / 14^o to 104^oF
Housing	Stainless steel indicator with die-cast aluminum base
Overall Dim.(wxdxh)	11.8 x 20.5 x 25.8 in 300 x 520 x 655 mm					15.7 x 24.6 x 33.7 in 400 x 625 x 855 mm			23.6 x 36.8 x 34.6 in 600 x 935 x 880 mm
Net Weight	30.9 lb / 14kg					39.7 lb / 18kg			77.1lb / 35kg

Accessories Item number...................... Description
700400103........................ RS-232 cable
3074010507....................... RS-232 to USB adapter (must order corresponding RS-232 cable)
3004013214....................... Light tower kit including relay box
1120014641....................... AIP impact printer
1120011156....................... ATP thermal printer
1100011297....................... Relay box
600002028........................ AdamDU Data Collection Program
700660290........................ Calibration certificate
