Mark-10 SBC10000 Compression Force Sensors, 10000 x 5 lb |
|
| Button sensor for compressive loads of up to 10,000 lb. Compact and rugged, the SBC is ideal for heavy duty applications with space constraints more ... |
|
Test Equipment >
Force Gauges >
Force Sensor
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Features

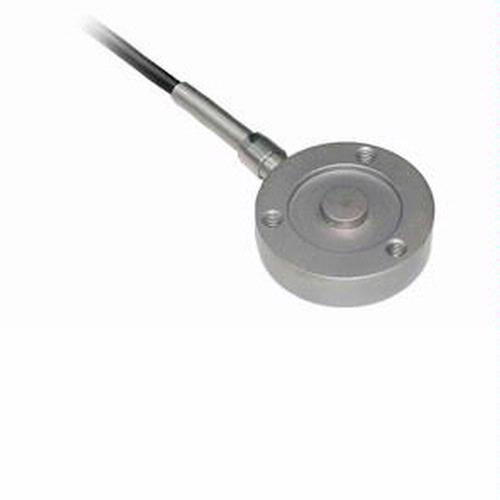

Button sensor for compressive loads of up to 10,000 lb. Compact and rugged, the SBC is ideal for heavy duty applications with space constraints
- Member of the BGI family of interchangeable sensors
- Personality module holds all calibration and configuration data
- Small size
- Stainless steel construction
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.5% of full scale ±1 digit + BGI
- Weight: 0.4 lbs (0.2 kg)
- Warranty: 3 years
| Model |
Capacity x Resolution |
ØA |
ØB |
C |
D |
ØE |
F |
ØG |
Price |
| SBC100 |
100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N |
1.23
(31.3) |
0.32
(8.1) |
0.05
(1.3) |
0.39
(9.9) |
1.0
(25.4) |
thru |
0.83
(21.1) |
$617 |
| SBC200 |
200 x 0.1 lb, 100 x 0.05 kgF, 1000 x 0.5 N |
$617 |
| SBC500 |
500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N |
$617 |
| SBC1000 |
500 x 0.2 lb, 250 x 0.1 kgF, 2500 x 1 N |
$617 |
| SBC1000 |
1000 x 0.5 lb, 500 x 0.2 kgF, 5000 x 2 N |
$617 |
| SBC2000 |
2000 x 1 lb, 1000 x 0.5 kgF, 10000 x 5 N |
$617 |
| SBC5000 |
5000 x 2 lb, 2500 x 1 kgF, 25 x 0.01 kN |
1.48
(37.6) |
0.43
(10.9) |
0.07
(1.8) |
0.62
(15.8) |
1.25
(31.8) |
0.25
(6.4) |
1.08
(27.4) |
$617 |
| SBC10000 |
10000 x 5 lb, 5000 x 2 kgF, 50 x 0.02 kN |
$617 |
Weight:
2.00 lb
|
|
|
|
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
