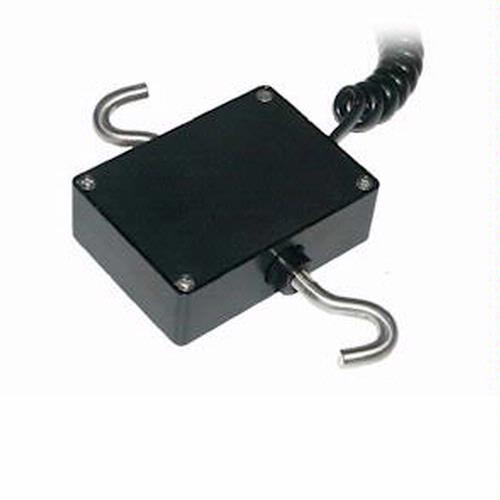

Mark-10 SSM20 Inline Compression and Tension Testing Sensor, 20 x 0.01 lb |
|
| Force measurement sensor for tensile and compressive loads in a wide variety of applications, available in capacities from 0.25 lb to 100 lb. Thread on two sides can accept a variety of hooks and implements, making this sensor well suited for inline tests more ... |
|
Test Equipment >
Force Gauges >
Force Sensor
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Features
Force measurement sensor for tensile and compressive loads in a wide variety of applications, available in capacities from 0.25 lb to 100 lb. Thread on two sides can accept a variety of hooks and implements, making this sensor particularly well suited for inline tests.
- Member of the BGI family of interchangeable sensors
- Personality module holds all calibration and configuration data
- Rugged aluminum housing
- Measures tensile and compressive forces
- Remote operation
- Small Size
- NIST-traceable certificate of calibration included
- Accuracy: ± 0.15% of full scale ±1 digit + BGI
- Weight: 0.4 lbs (0.2 kg)
- Warranty: 3 years
| Model |
Capacity x Resolution |
Price |
| SSM025 |
0.25 X 0.0001 lb, 100 x 0.05 gF, 1 x 0.0005 N |
$617 |
| SSM05 |
0.5 x 0.0002 lb, 250 x 0.1 gF, 2.5 x 0.001 N |
$617 |
| SSM2 |
2 x 0.001 lb, 1 x 0.0005 kgF, 10 x 0.005 N |
$617 |
| SSM5 |
5 x 0.002 lb, 2.5 x 0.001 kgF, 25 x 0.01 N |
$617 |
| SSM10 |
10 x 0.005 lb, 5 x 0.002 kgF, 50 x 0.02 N |
$617 |
| SSM20 |
20 x 0.01 lb, 10 x 0.005 kgF, 100 x 0.05 N |
$617 |
| SSM50 |
50 x 0.02 lb, 25 x 0.01 kgF, 250 x 0.1 N |
$617 |
| SSM100 |
100 x 0.05 lb, 50 x 0.02 kgF, 500 x 0.2 N |
$617 |
| AC1018 |
Mounting kit, SS/SSM to TS-Series test stands |
$95 |
Weight:
2.00 lb
|
|
|
|
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
