Mark-10 G1023 Bottle Grip
Torque and top-load testing of closures, bottles more ...

Test Equipment > Grips and Attachments > Torque - Force

Have Questions?

email Us

Our Staff will be glad to help

Features

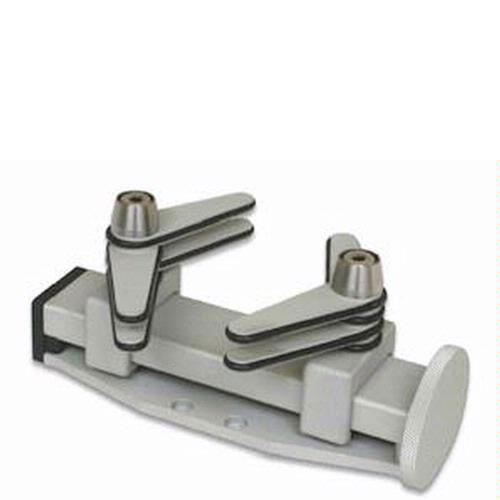

This unique grip is designed for securing bottles, containers, and other items for closure torque testing. Eight rubber edged gripping arms effectively grip a wide range of sample shapes and sizes and can be individually positioned at angles of up to 180°. The G1023 mounts directly to the Mark-10 TST, TSTH, TSTM, and TSTMH Torque Measurement Test Stands. The grip may also be mounted to a force measurement stand to secure closures in such applications as top load testing.

Capacity

lb-in / N-m

Weight

lb / kg

ØA

100 / 11.3

1.5 / 0.7

4.8 / 122.0 max

Weight: 4.00 lb

* within the 48 continental US States

Optional Accessories

more info

Mark-10 G1068 G1023 Bottle Grip to G1045 Peel Fixture Adapter

$76.00

G1068 includes mounting hardware for the G1023 fixture and the following test stands: ESM303, ESM1500 (when ordered with optional AC1055 mounting plate), ESM301, ESM, ES30, TSC1000, TSF, TSFM500, ES10/ES20 (when ordered with optional AC1060 mounting plate)
