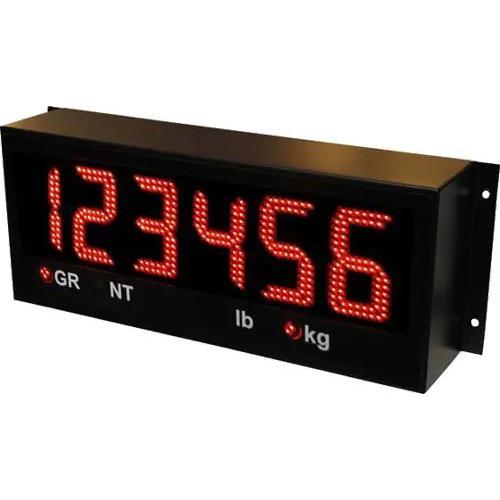

CAS B45RD Beacon 4.5 inch Remote Display for CAS wheel weighers and axle scales |
|
| The CAS Beacon Series Remote Displays are designed to work in conjunction with CAS wheel weighers and axle scales. When used with the CAS RW-2601P Indicator/Printer, the Beacon Series displays individual axle weights and vehicle total gross weight. For applications utilizing other scale indicators, the Beacon Series can be easily configured to read indicator data formats and output strings, more ... |
|
Wheel Weighing Scales >
Wheel Load Scales >
Indicators
|
|
|
|
|
|
Features
The CAS Beacon Series Remote Displays are designed to work in conjunction with CAS wheel weighers and axle scales. When used with the CAS RW-2601P Indicator/Printer, the Beacon Series displays individual axle weights and vehicle total gross weight. For applications utilizing other scale indicators, the Beacon Series can be easily configured to read indicator data formats and output strings, reducing set up time. Each Beacon Series Remote Display shares identical features and operate on the same hardware and software platforms. For standard time & date and optional temperature display capabilities, choose from the CAS Beacon 45 and 65 Series Remote Displays.
- Easy to See
- Super bright high intensity LEDs are easy to read even in direct sunlight
- Viewing range up to 300ft
- Energy efficient LED display segments
- Non-glare lens for optimal clarity
- Easy to Use
- Auto-Learn technology enables every Beacon Series Remote Display to learn indicator data formats and output strings - reducing configuration and set up time
- Command mode for custom strings
- Energy Efficient
- Power Save Mode reduces brightness and power consumption during inactivity
- Selectable day/night brightness levels
- Automatic sensor adjusts to ambient light conditions
- Durable and Dependable
- Weather proof enclosure with breather vent
- Optically isolated port for lightning protection
- 2 Year Standard Warranty
- Versatile
- Mirrored display mode
- Multi-drop capabilities
- 5 standard communication protocols
- 6 ft power cable
- Optional stainless steel enclosure
- Optional Time & Date/Temperature display modules
- Bluetooth Wireless options (Consult Factory)
- Utility software programs (Consult Factory)
Weight:
18.00 lb
|
|
Other CAS Beacon Remote Displays
|
Specifications
| Model |
B20RD |
B45RD |
B65RD |
| Display Size |
2 inch |
4.5 inch |
6.5 inch |
| Viewing Range |
50 ft |
250 ft |
300 ft |
| Display Ttype |
LED
6 Digit (7 segments each)
1 or 2 Decimal Places
4 Annunciator Lights (GR, NT, lb, kg) |
| Enclosure |
Mild Steel with Powder Coated Finish
Breather Vent (prevents condensation)
Tough, Dependable, & Weatherproof |
| Communications |
RS-232 / RS-422 / RS-485 Multi-drop
20mA Current Loop (Active & Passive) |
| Operating Temperature |
-40oF to 120oF (-40oC to 50oC) |
| Dimensions (inch/mm) |
12 7/8" x 6" x 2 1/4"
(327 x 152 x 57) |
24" x 10" x 5"
(610 x 255 x 127) |
32" x 12" x 5"
(812 x 305 x 127) |
| Weight |
6 lb. (3 kg) |
18 lb. (9 kg) |
32 lb. (15 kg) |
| Warranty |
2 Year |
|
|
|
|
* within the 48 continental US States
|
| |
|
|
|
|
