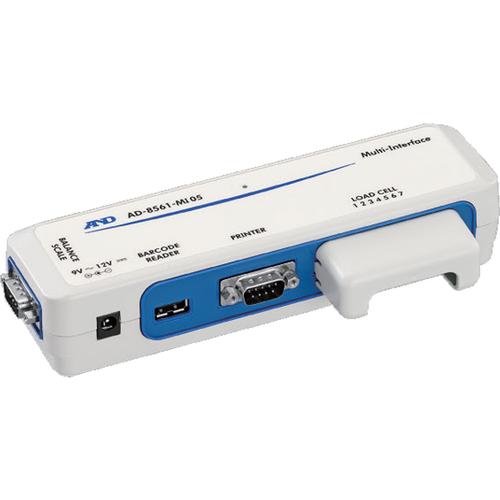

Name: AND Weighing AD-8561-MI05 Multi-Interface incl. Terminal (7-pin) block
Brand: AND Weighing
SKU: 63095
Price: 268.80 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturers

Other Products

AND Weighing AD-8561-MI05 Multi-Interface incl. Terminal (7-pin) block
AND Weighing AD-8561-MI05 Multi-Interface incl. Terminal (7-pin) block The AD-8561-MI05 can be used for analog connection with an external scale (load cell) more ...

Industrial Scales > Counting Scales > Accessories

AND Weighing AD-8561-MI05 Multi-Interface incl. Terminal (7-pin) block

Have Questions?

email Us

Our Staff will be glad to help

Features

The AD-8561-MI05 can be used for analog connection with an external scale (load cell)

Expanded scope of application using the AD-8561 series of Multi-Interfaces (sold separately)
With one of the following Multi-Interface options (connected to the RS-232C interface of the scale), multiple different devices can be used with the GC series. All of these options have one RS-232C (D-Sub 9-pin) interface and one USB (Type-A) interface, in addition to one interface specific to each model, as shown in the table below.

Model		Equipped with	Intended for
AD-8561	Common	RS-232C (D-sub 9-pin) × 1	Printer/PC (bi-directional)
	Common	USB (Type-A) × 1	Barcode scanner/keyboard input
	-MI02	USB (Type-micro B) × 1	PC (bi-directional)
	-MI04	Terminal (4-pin) block × 1	Comparator relay output
	-MI05	Terminal (7-pin) block × 1	External scale (load cell) input

Discover increase in value through connectivity and augmentation with various other devices

Weight: 1.00 lb
