Seca ONSMMIUTNN 654 EMR-Validated Digtital Scale with ID-Display and Ultrasonic Height Measurement - 800 lbs x 0.1 lbs |
|
| The seca Scale-up Line is probably the most modern and future-oriented way to determine height and weight. Firstly, because of the contactless, fast and highly precise ultrasound measurement. more ... |
|
Medical Equipment >
Medical Scales >
Physician Scales - Digital
|
|
|
|
|
|
Features

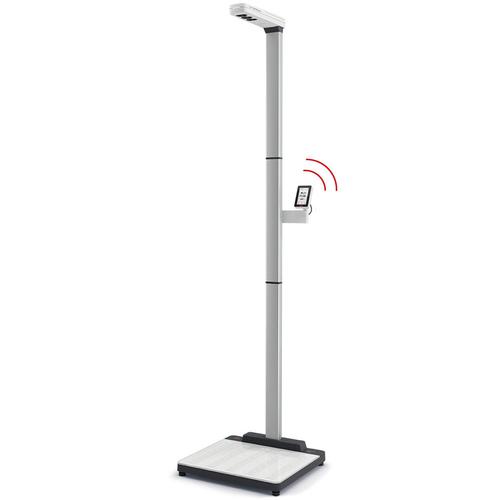

The seca Scale-up Line is probably the most modern and future-oriented way to determine height and weight. Firstly, because of the contactless, fast and highly precise ultrasound measurement. Secondly, because of the ID display that displays the names or IDs of patients and users during data transfer into the digital patient file (EMR). This means that this measuring station from the seca Scale-up Line is the ideal choice for EMR-integrated weighing and measuring.
Product Properties
- Display shows user and patient names or IDs for increased patient safety
- Outstanding precision and high-speed measuring thanks to perfected ultrasound technology
- Large platform made of tested seca Bearclaw Glass® for absolute breakage resistance and perfect hygiene
- Voice guidance to support the measurement process
- Convenient transport with extremely robust rubber wheels
- Optional panda bear facilitates measuring and weighing of children
- EMR-validated: transmit measured data directly to any electronic medical record system or printer
Key-Technical Data
- Net weight: 48.5 lbs / 22.0 kg
- Product width: 23.6 inch / 600 mm
- Product height: 94.0 inch 2,387 mm
- Product depth: 24.2 inch / 614 mm
- Graduation: 50 g / 0.1 lbs
- Capacity: 360 kg / 800 lbs
| Options |
ultrasonic height measurement |
| Net weight |
48.5 lbs / 22.0 kg |
| Measuring Range |
100 - 220 cm / 40 - 87 inch |
| Platform width |
23.6 inch / 600 mm |
| Platform height |
2.8 inch / 70 mm |
| Platform depth |
18.4 inch / 467 mm |
| Product width |
23.6 inch / 600 mm |
| Product height |
94.0 inch / 2,387 mm |
| Product depth |
24.2 inch / 614 mm |
| Ports |
LAN
USB bar code scanner
Wi-Fi |
| Power supply |
Power adapter |
| Graduation |
50 g / 0.1 lbs |
| Graduation measuring range |
1 mm / 1/8 inch |
| Capacity |
360 kg / 800 lbs |
Functions and Properties
- EMR-validated
- Wi-Fi
- Acoustic signals can be activated
- Auto-BMI
- Auto-CLEAR
- Auto-HOLD
- Extra rugged
- Confirm button
- CLEAR
- Adjustable damping
- Backlighting
- HOLD
- cm/inch switch-over
- Mother+child function
- Pre-TARE
- RESET
- TARE
- Transport wheels
- Display of user and patient name or ID
- Display date of birth patient
- Rotatable and tiltable display
- Standby mode
- Ethernet
- Touchscreen
- lbs/kg switch-over
- Auto-BSA (Body surface area)
- Customizable shortcut buttons
|
|
Specifications
|
SECA 650
6501321009 |
Seca 654HR
ON SHM INT NN |
Seca 654S
ON SMM IUT NN |
Seca 654HRS
ON SHM IUT NN |
| Capacity x Readability |
800 x 0.1 lb
360 kg x 50 g |
800 x 0.1 lb
360 kg x 50 g |
800 x 0.1 lb
360 kg x 50 g |
800 x 0.1 lb
360 kg x 50 g |
| Height Measurement |
- |
- |
Ultrasonic |
Ultrasonic |
| Handrail |
- |
YES |
- |
YES |
| Wheels |
- |
YES |
YES |
YES |
| Height Measuring range |
|
60 – 220 cm / 24 – 87" |
| Height Graduation of measuring range |
|
1 mm / 1/8" |
| EMR-validated |
YES |
YES |
YES |
YES |
| Display type |
Shows name or identifi cation number (ID) of users and patients for enhanced safety |
| Ports |
LAN, USB bar code scanner, Wi-Fi |
| Functions and Properties |
TARE, Auto-clear, Clear, Pre-TARE, Mother/Child function, HOLD, Auto-HOLD, Auto-BMI, kg/lbs switch-over, Autom. Calibration, cm/inch-switch-over, Damping |
| Accessories |
Ultrasonic height measurement seca 257, Seca 459 Panda Bear, Seca 463 Barcode Scanner Mount |
|
|
|
|
|
|
|
|
|
|
|
|
