Rice Lake 199318 iDimension PWD System Legal for TradePallet Weighing and Dimensioning System 5000 x 1 lb

Rice Lake - Calibration Weights - Medical Scales
The iDimension PWD system includes a 5 ft x 5 ft (1.52 m x 1.52 m), 5,000 lb (2,500 kg) capacity floor scale with built-in forklift bumper guards, a weight indicator, a USB-connected touchscreen display and an overhead dimensioning system. more ...
Shipping and Receiving > Shipping > Dimensional Scales
Rice Lake 199318 iDimension PWD System Legal for TradePallet Weighing and Dimensioning System 5000 x 1 lb

Specifications Chart


Have Questions?
Call USoremail Us
Our Staff will be glad to help


Please call 1-800-832-0055 if you need help with your order.

Rice Lake 199318 iDimension PWD System Legal for TradePallet Weighing and Dimensioning System 5000 x 1 lb

Price: $29,529.50


In Stock - Ships within 24 hours

View Features

Rice Lake
SKU: 199318

Features

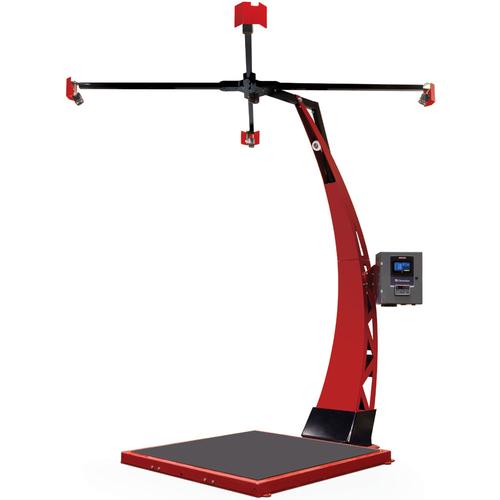

The iDimension PWD system includes a 5 ft x 5 ft (1.52 m x 1.52 m), 5,000 lb (2,500 kg) capacity floor scale with built-in forklift bumper guards, a weight indicator, a USB-connected touchscreen display and an overhead dimensioning system.

The iDimension PWD can be front-loaded with a forklift or side-loaded using a pallet jack with optional access ramps. Simply place the pallet on the floor scale and trigger the PWD less than two seconds, the iDimension PWD measures and provides dimensions, weight and images

Dimensions Pallets in Less
The iDimension PWD dimensioner and scale system provides shippers with the dimensions and weight of palletized shipments, empowering users to identify the correct freight class and reduce the risk of non-compliance fees from carriers. Ensure invoiced freight charges are accurate at the time of shipment and receive a measurable, nearly instantaneous return on investment with the iDimension PWD.

Same day installation and Operation.
In less than a day, the iDimension PWD can be unboxed, set up and put to work.

Straightforward Operation
The iDimension PWD can be loaded with a forklift or side-loaded with a pallet jack and optional access ramps. Simply place the pallet on the floor scale and use the USB-connected display, optional bar code scanner or web browser to trigger the PWD to capture dimensions. In less than two seconds, the iDimension PWD measures and provides dimensions and weight, and takes a digital picture the item with the optional high-resolution camera.

Versatile Item Sizes
iDimension PWD is capable of measuring pallets up to six feet and packages as small as six inches, cubed.

Convenient Pallet Tare Mode
For non-Legal for Trade applications, iDimension PWD can tare pallet measurements to provide only the dimensions of objects on the pallet.

High-Resolution CameraEasy Network Integration
The iDimension PWD is designed to easily transfer dimensions, weight and images to a network, simplifying claims processes. Built with a web server interface, iDimension PWD offers simple integration using configurable capture definitions through HTTP requests, status checking and XML parsing. The iDimension PWD optional high-resolution camera quickly captures images of freight condition at time of shipment.

Standard Features
  • Versatile Uses iDimension PWD is capable of measuring pallets up to six feet (1.82 m) cubed—or packages as small as six inches (15.24 cm).
  • Convenient Pallet Tare Mode For non-Legal for Trade applications, iDimension PWD can measure objects on a pallet by excluding their length and width and subtracting the known pallet height.
  • Easy Network Integration The iDimension PWD is designed to easily transfer images and dimensions to a network, simplifying claims processes. Built with a web service interface, iDimension PWD offers simple integration using configurable capture definitions through HTTP requests, status checking and XML parsing.
  • Quick, Simple Installation In less than a day, the iDimension PWD can be set up, configured and put to work.
Options
  • High Resolution Camera Capture an image of each piece of freight to provide proof of condition to simplify the freight damage claim process. Produces a 2.4 mm color image at 2688 x 1606 pixels
  • Wired or Wireless Barcode Scanner Keyboard wedge emulation will manually trigger the iDimension PWD to dimension and add barcode text data into web service API
  • Access Ramps One or two side-mounted ramps provide access for pallet jacks
  • Overhead 5th Sensor Increases performance when dimensioing highly reflective and IR sensitive pallet shrink wrap material and small protrusion located on top of freight pallets
  • Software Programs QubeVu Desktop for use as a software keyboard wedge, transferring weight and dimensions to connected terminal. iDimension Software Suite for storing data and images transferring data to ERP and WMS systems.
  • Software Maintenace and Support Annual software maintenace, extended warranty and 24/7 factory technical support available
  • Versatile Uses iDimension PWD is capable of measuring pallets up to six feet (1.82 m) cubed—or packages as small as six inches (15.24 cm).
  • Convenient Pallet Tare Mode For non-Legal for Trade applications, iDimension PWD can measure objects on a pallet by excluding their length and width and subtracting the known pallet height.
  • Easy Network Integration The iDimension PWD is designed to easily transfer images and dimensions to a network, simplifying claims processes. Built with a web service interface, iDimension PWD offers simple integration using configurable capture definitions through HTTP requests, status checking and XML parsing.
  • Quick, Simple Installation In less than a day, the iDimension PWD can be set up, configured and put to work.

Dimensions
X:
25.50   Y: 14.00   Z: 67.00
1 Year Manufacture Warranty
Other Rice Lake iDimension Trade Pallet Dimensioning Systems
Rice Lake 199318 iDimension PWD System Legal for TradePallet Weighing and Dimensioning System 5000 x 1 lb
199318
iDimension PWD System Legal for TradePallet Weighing and Dimensioning System 5000 x 1 lb

$29,529.50

You are viewing this product
Rice Lake 194205 iDimension LTL Legal for Trade Pallet Dimensioning System
194205
iDimension LTL Legal for Trade Pallet Dimensioning System

$46,309.35

Specifications

199318
iDimension PWD System
Capacity x Readability 5000 x 1 lb
2500 x 0.5 kg
Pan Size 5 ft x 5 ft (1.52 m x 1.52 m)
Legal for Trade Measurement Range (L x W x H): Maximum freight size: 72 in x 72 in x 72 in (182 cm x 182 cm x 182 cm)
Minimum freight size: 6 in x 6 in x 6 in (15 cm x 15 cm x 15 cm)
Measurement Capabilities 48 in x 42 in x 84 in (120 cm x 105 cm x 210 cm)
Measurement Increment 0.5 in (1 cm)
Performance Characteristics Most surfaces are captured, transparent/translucent and glossy surfaces may provide a variance.
Item Placement Single pallet centered on the floor scale for best performance
Minimum Pallet Height 4.25 in (10.80 cm) wood pallets
Shapes Solid shapes, (3-inch (7.62 cm) protrusions or more) will be included in dimensions
Lighting Conditions Operates in any indoor lighting environment
System Contents Dimension PWD Calibration object 12 in x 12 in x 12 in (30.5 cm x 30.5 cm x 30.5 cm) test box
Network Interface One static IP address required when used with a mobile PC. Up to 11 IP addresses reserved when connected directly to the network
Power Requirements Single power source (96-264 VAC), with 25 ft (7.62 m) power cable
Optional Network Camera 2.4 mm POE network color camera with 3-axis camera angle adjustment. IP24 rating. Standard 2688 x 1606 pixels, 96 dpi @ 751kb standard output in .jpeg format. Configurable for time and date, scan ID, system serial #, dimensions and dimensional indicators.
Operating Temperature 14°F to 104°F (-10°C to 40°C)
Humidity 0-90% non-condensing
Warranty Two-year limited warranty
Five-year limited warranty, sensors only
Approvals: NTEP

Options

System Options
200168 2.4 mm POE network camera – up to 1 optional
199320 Data Logic PM 9100RB wireless scanner kit
176307 Datalogic QuickScan QD2131 KBW, wired USB cable
199665 iDimension PWD pallet jack ramp
199666 Optional 5th overhead sensor



Optional Integration Solutions
175812 iDimension Software Suite, Windows 10



Optional Factory Service and Support
202029 Factory software integration remote support
202027 Factory assembly, setup and configuration remote support
194215 Annual Software Maintenance
171666 iDimension field install and training/day, T & E not included



Extended Warranty – 2 year standard
202033 iDimension PWD/LTL additional 1 year extended warranty
202034 iDimension PWD/LTL additional 2 year extended warranty
202035 iDimension PWD/LTL additional 3 year extended warranty
