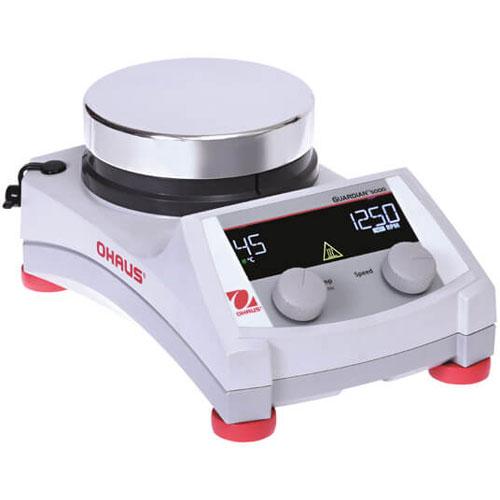

Ohaus e-G51HSRDM Guardian 5000 120v Hotplate Stirrer - (60 rpm – 1,600 rpm / Ambient + 5 °C – 380 °C) |
|
| OHAUS Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications. more ... |
|
Laboratory Equipment >
Hotplates and Stirrers >
Hotplates and Stirrers
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Features
OHAUS Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications.
Reliable Hotplate Stirrers with Exceptional Safety Features for Everyday Use
- Safeguard operators! The SmartHousing™ remains cool to the touch at all temperature settings. The large hot top light can be seen across the lab and illuminates when the heater is above 40°C.
- All sizes feature the exclusive SafetyHeat™ - an industry leading internal protection system that assures safety in heating applications with dual monitoring of system health to protect the lab.
- The unique SmartHousing™ stays cool to the touch and is chemical-resistant. The easy to clean innovative design channels spills away from internal components and the chemical-resistant control panel.
| Function |
Heating and Stirring |
| Capacity (text) |
20 L |
| Plate Construction |
Aluminum |
| Plate Size (Ø_Diameter) |
135.0 mm (5.3 mm) |
| Temperature Range |
Ambient + 5°C – 500°C |
Ambient + 5°C – 500°C
| Speed Range |
60 rpm – 1,600 rpm |
| Speed Stability |
+/-2% |
| Temp. Stability |
+/-3% Plate, below 100°C +/-2°C
+/-1% Probe, below 100°C +/-1°C |
| Control |
Digital |
| Dimensions (Width) |
173.0 mm (6.8 in) |
| Temperature probe |
Available as an Accessory |
| Display |
Custom Backlit LCD |
| Dimensions (Length) |
267.0 mm (10.5 in) |
| Working Environment |
41°F – 104°F, 80%RH, non-condensing
5°C – 40°C, 80%RH, non-condensing |
| Dimensions (Height) |
126.0 mm (5.0 in)) |
| Net Weight |
2.6 kg (5.7 lb)) |
| Safety Certification |
TUV |
| In-use cover |
Available as an Accessory |
| Power |
120V, 8.3A, 50/60Hz |
| Power Consumption |
896 W |
Weight:
6.00 lb
|
|
