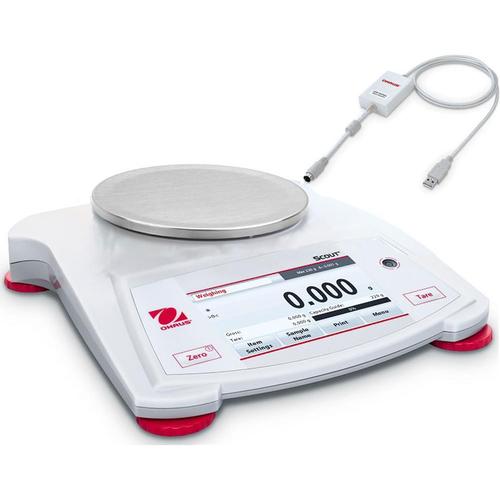

Ohaus Scout STX622 Touch Screen Portable Balance 620 x 0.01 g with USB Interface Device
Ideal for laboratory & industrial applications, the OHAUS Scout features an easy to navigate color touchscreen display & a slim design which allows stackable storage. Geared for superior performance with fast stabilization time and high resolution weighing results, these portable balances set a new standard for a broad range of weighing applications. Features also include superior overload protection and expanded connectivity options. more ...
Setting New Standards in Laboratory & Industrial Weighing — The Next Generation of Scout Balances
Ideal for laboratory & industrial applications, the OHAUS Scout features an easy to navigate color touchscreen display & a slim design which allows stackable storage. Geared for superior performance with fast stabilization time and high resolution weighing results, these portable balances set a new standard for a broad range of weighing applications. Features also include superior overload protection and expanded connectivity options.
Standard Features Include:
Quick and Efficient Navigation with the Informative Color Touchscreen Display - Large, resilient color touchscreen allows for effortless operation of the Scout through its informative icon driven menu structure, guiding the user through every step of the weighing application.
Fast Weighing Speed and High Resolution Deliver Repeatable and Reliable Results - Stabilization time as fast as 1 sec means increased productivity in your facility. Equipped with advanced weighing technology, the Scout also ensures repeatable and reliable weighing results .
Superior Overload Protection & Stackable Storage Drive Overall Durability - Integrated superior overload protection system rated at 10 times the capacity protects the balance in rugged and demanding environments. The space-saving, slim design allows for stackable storage.
Multiple Connectivity Options for Greater Flexibility in Communication - With expanded connectivity options including RS232, USB Host, USB Device, Ethernet and Bluetooth®, the Scout provides added versatility to your data collection and transfer needs
Navigate and Operate the Balance Easily with the Informative Touchscreen Display
Portable balance operation has never been easier, faster or as intuitive as the new OHAUS Scout with color touchscreen display. You’ll navigate easily through the Scout’s resistive touchscreen interface and icon-driven menu structure, maneuver efficiently in and out of application modes, change weighing units with a simple press of the screen and execute setup and calibration functions in no time. The OHAUS Scout with color touchscreen display creates a new level of unmatched efficiency and functionality in portable weighing.
A real-time clock function keeps accurate time even during power loss. Additionally, GLP/GMP tracking capabilities assist in the monitoring and reporting of data.
Increased Efficiency and Productivity in your Facility
It’s all about accuracy and efficiency with the OHAUS Scout Touchscreen balance. Stabilization time as fast as 1 sec means increased productivity in the lab, or on the line. With improved resolution, you can count on extremely precise and repeatable weighing results time and time again.
Scout’s Signature Durability Remains Unrivaled
You would expect nothing less from OHAUS than the most durable portable weighing product - that’s why we’ve included our superior overload protection rated at 10 times the capacity of the balance, high strength stainless steel pan, impact-resistant pan support and integrated transportation/storage lock. We’ve even ensured that the high quality, resistive touchscreen is built to last. To complement our signature durability, the Scout Touchscreen is designed to be stackable when utilizing the included stacking and storage cover, which also protects the balance when not in use.
Versatile Data Collection and Transfer
With expanded connectivity options now featuring Bluetooth®, the OHAUS Scout offers more versatility for convenient data logging, communication and remote functionality. Utilize the Bluetooth® accessory to remotely control the balance from your mobile device or tablet for Android™*. Perform functions such as Zero, Tare, Print, Power Off and more. Other accessories include RS232, USB Device, USB Host and Ethernet. With the USB Host option, you can simply save and transfer data from the balance to a USB drive.
Draftshield Model Available
Scout’s ingenious draftshield (1mg models only) was designed with an easy to remove top cover piece. This serves as a wind protection ring which keeps the weighing surface stable in rough environments, while maintaining weighing speed.
Built-in Application Modes
Weighing — Determines the weight of items on the pan in the selected unit of measure.
Parts Counting — Counts the number of pieces on the pan using a uniform weight.
Percent Weighing — Measures the weight of a sample displayed as a percentage of a pre-established reference weight.
Check Weighing — Compares the weight of a sample against target limits.
Totalization — Measures cumulative weight of multiple items. Cumulative total may exceed balance capacity.
Dynamic Weighing - Weighs an unstable sample load. The balance takes an average of weights over a period of time.
Density Determination - Determines density of solids or liquid. With the integrated weigh below hook, it is possible to perform specific gravity tests for objects that cannot be easily placed on the weighing pan
Display Hold — Manually holds the last stable weight or the first highest stable weighing value on the display.
Mole Weighing — Measures the weight of a sample and calculates it into Moles automatically.
2 Year Manufacture Warranty
Other Ohaus Scout STX Portable Balance with Touch Screen
50°F / 10°C to 104°F / 40°C at 10% to 85% relative humidity, non-condensing
-20°C (-4°F) to 55°C (131°F) at 10% to 90% relative humidity, non-condensing
Pan Size (W × D)
3.7in 93 mm diameter
4.7in 120 mm diameter
6.7 x 5.5 in 170 × 140 mm
4.7in 120 mm diameter
6.7 x 5.5 in 170 × 140 mm
Dimensions W x H x D
8 × 8.7 × 4.1 in 202 × 222 × 103 mm
8 × 8.8 × 2.1 in 202 × 224 × 54 mm
Dimensions W x H x D
11.8 × 9.8 × 5.1 in 300 × 250 × 129 mm
* Calibration weights are included with models up to 620g capacity.
Other Standard Features and Equipment
Transportation lock, stainless steel pan, menu & calibration lockout switch, slip-resistant and adjustable feet, leveling bubble, mechanical and software overload/underload protection, stability indicator, auto tare, low battery indicator, auto shut-off, user selectable printing options, user selectable communication settings
If ya worry about your concoctions spilling over on your scale, this is a great accessory for you. This clear, in-use cover protects your scales display and keypad from accidental spills. And it makes cleanup a breeze. For use with the Ohaus Scout SPX and Scout STX balances.
OHAUS Value in a Full-Featured, Portable Printer The all-new SF40A combines high performance and multiple functions to offer OHAUS quality and durability in a portable dot-matrix impact printer. The SF40A offers advanced functionality in an easy-to-use and set up printer at an exceptional value. This versatile printer is ideal for use in conjunction with OHAUS balances and scales in laboratory, industrial, and educational applications to ensure accurate documentation of weighing results.
Standard Features Include
Multiple Application Modes and Features Support the Data Reporting Process — SF40A is equipped with statistics and totalization modes that provide additional functionality for QA/QC and reporting processes. SF40A also offers a real-time clock with battery backup and date and time on printouts
Easy Setup And Configuration Eliminate Wasted Time — Don’t let your printer inhibit the efficiency of your weighing process. OHAUS balances and scales improve productivity and increase throughput and SF40A speeds recordkeeping to keep your job on track and get it completed as proficiently as possible. PC configuration software makes connecting the printer between balance or scale and computer a fast and convenient process and also makes setting up date, time, and baud rate hassle-free. The SF40A combined with GLP/GMP data output can help meet traceability and compliance requirements.
Multi-Language Printing Supports Universal Operation — SF40A supports printing in the language of the connected device in 13 different languages.
Other Standard Features
Status indicator, compatible with continuous label paper, perform zero and tare operations directly from the printer. Full functionality with Discovery, Adventurer™ Pro, Explorer®, Navigator®, MB Series Moisture Analyzers, Trooper®, Ranger®, Valor™ 7000, Defender™ bench and floor scales and “T” Series indicators. Statistics and Totalization not supported on other OHAUS products with RS232.
Multi-Language Printing: English, Spanish, French, German, Italian, Chinese, Korean, Japanese, Russian, Polish, Portuguese, Hungarian and Czech.
