MSI RF Scoreboard 139055 Green LED 4 inch 6 digit display for CellScale |
|
| MSI Scoreboards are an accessory of the CellScale and wireless weighing systems that provide remote indication of weight information. Units come from the factory with an internal built-in CellModem for wireless communication with any CellScale network component; including the MSI-9000 CellScale and MSI crane scales (MSI-6260CS, MSI- 9300, MSI-9300HT and MSI-9260). more ... |
|
Industrial Scales >
Crane Scales & Dynamometers >
Accessories
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Features

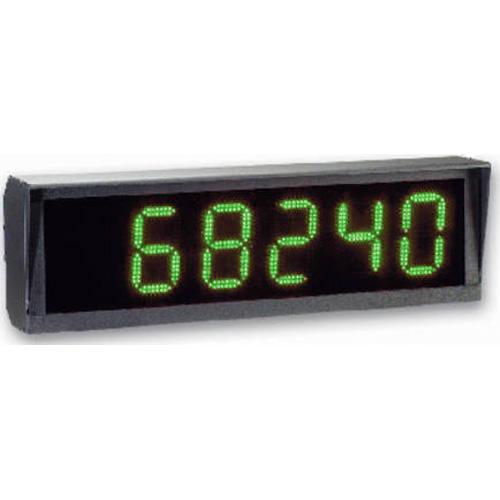

MSI Scoreboards are an accessory of the CellScale and wireless weighing systems that provide remote indication of weight information. Units come from the factory with an internal built-in CellModem for wireless communication with any CellScale network component; including the MSI-9000 CellScale and MSI crane scales (MSI-6260CS, MSI- 9300, MSI-9300HT and MSI-9260).
The electronic displays feature high intensity red or green LEDs that are designed to last 100,000 hours and offer a wide viewing angle that can be read in direct sunlight. The rugged NEMA 4 case and internal lightning protection circuitry ensure years of reliable operation in demanding applications. A swivel mounting bracket is included that provides flexible installation virtually anywhere
- Enclosure: NEMA Type 4, IP56 rugged aluminum extruded case with integrated hood
- Display: Six-digit long-life LED 4 in or 6 in, and red or green characters available
- Power: AC/DC power supply 85-265 VAC, 47-440 Hz/130-300 VDC
- Radio Link: Frequency hopping spread spectrum at 2.4 GHz
- Radio Link Effectice Range: Typically 500 ft (150 m) indoors, 1000 ft (300 m) outdoors with standard antennas (see optional antennas for longer range)
- Standard Antenna: 1/2 wave 2 dBi, articulated
- Warranty: One-year limited
- Echo Data Output: RS-232
Dimensions
X:
28.70
Y:
9.00
Z:
14.00
Weight:
21.00 lb
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
