Intercomp 181541 PT-300DW 4 Scale Sys Complete System w / Cables 80,000 x 10 lb |
|
| PT300DW™ scales have been setting the bar for portable, self-contained, compact wheel load scales for decades. Used to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment, these all aluminum, fully electronic scales are capable of weighing up to 40,000lbs (18,000kgs) with an accuracy of ± 1%. more ... |
|
Wheel Weighing Scales >
Wheel Load Systems >

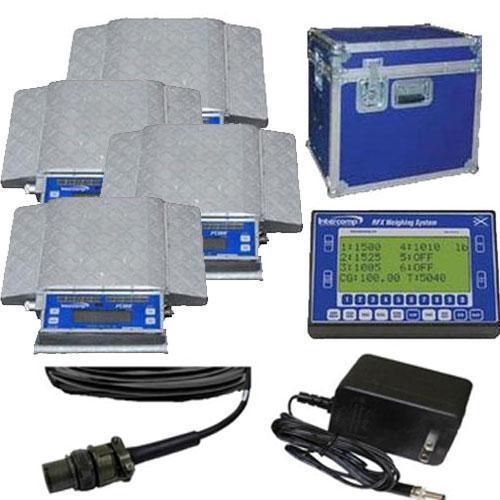

4 Scale Wheel Load System
|
|
|
|
This Item Contains the following items
|
|
|
|
|
Features
PT300DW™ scales have been setting the bar for portable, self-contained, compact wheel load scales for decades. Used to maximize legal payloads with concern for violations and reduction of maintenance due to overload stress on equipment, these all aluminum, fully electronic scales are capable of weighing up to 40,000lbs (18,000kgs) with an accuracy of ± 1%.
The scales are fully battery operated and only require infrequent recharging through 12V, 110V, or 220V power sources. Standard Rechargeable AA Batteries last up to 300 Hours in the Scales.
Fully Integrated RFX™ Wireless Weighing Technology, using no antennas and makes it possible to sequentially couple and number PT300™ scales in the series for the purpose of obtaining a total vehicle weight through the total button or by linking the scales to a computer, display, or Intercomp’s complete line of weighing indicators. For customers whose local regulations prevent the use of any wireless radio communication, radios can be disabled or you can select from hardwired alternatives.
- 5,000 lb (2,500 kg) to 40,000 lb (20,000 kg) Pad Capacities
- Accuracy of ±1% of Reading
- Large, Easy-to-Read, LCD Display
- Standard AA Rechargeable Batteries Last up to 300 Hours in Scales
- Solar Boost Provides up to One Year of Battery Life with Daytime, Outdoor Use
In addition, battery life has been significantly enhanced with the use of solar panels that will power the scales for up to a year before needing direct power charging with daytime outdoor use.
PT300DW ™ Scales are sturdy, portable and compact. Lightweight and accurate, this all-aluminum design is ideal for uneven surfaces and withstands most weather conditions.
The PT300DW ™ is designed to maximize legal payloads with concerns for violations and reduction of maintenance due to overload stress on equipment.
PT300 ™ Scales are now standard with Fully Integrated RFX ™ Wireless Weighing Technology and encryption ensures secure wireless communication. Cabled models are also available when wireless is not an option. Batteries last up to 300 hours in scales.
|
|
Other Intercomp PT-300DW Wheel Load Scale Systems with 4 Scales
|
Specifications
| Intercomp PT-300DW Double-Wide Solar-Powered Wheel Load Scale With 4 Scales |
| Model |
181501-RFX-K2
PT300 |
181502-RFX-K2
PT300 |
181503-RFX-K2
PT300 |
181504-RFX-K2
PT300 |
181505-RFX-K2
PT300 |
181506-RFX-K2
PT300 |
| Connection Type |
RFX™ Wireless |
RFX™ Wireless |
RFX™ Wireless |
RFX™ Wireless |
RFX™ Wireless |
RFX™ Wireless |
| Wired |
Wired |
Wired |
Wired |
Wired |
Wired |
| Capacity |
60,000 x 50 lb
(2 x 30,000 lb) |
80,000 x 100 lb
(2 x 40,000 lb) |
40,000 x 20 lb
(2 x 20,000 lb) |
40,000 x 10 lb
(2 x 20,000 lb) |
20,000 x 5 lb
(2 x 10,000 lb) |
10,000 x 5 lb
(2 x 5,000 lb) |
30,000 x 25 kg
(2 x 15000 kg) |
40,000 x 50 kg
(2 x 20,000 kg) |
20,000 x 10 kg
(2 x 10,000 kg) |
20,000 x 5 kg
(2 x 10,000 kg) |
10,000 x 1.5 kg
(2 x 5,000 kg) |
5,000 x 1.5 kg
(2 x 2,5000 kg) |
| Legal for Trade |
- |
- |
- |
- |
- |
- |
| Accuracy |
±1% of Reading |
| Display |
Large, Easy-to-Read, 1 " (25mm) LCD Display with Backlight |
| Push Button Controls |
On/Off, Local/Total, Zero & Print/Accum |
| Power |
Solar Power
Standard AA Rechargeable Batteries Provide up to 300 Hours of Continuous Use & Display Shows Battery Life |
| Platform Size |
12 " x 12 " (305 x 305 mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
)
)
)
)
