Intercomp 170151 SW Series Vehicle Scale System

High capacity, portable scale system, is ideal for wind tunnel testing, weighing trailers, tractors, coaches, mobile homes and other large wheeled vehicles. This system has a capacity of 20,000 lb (10,000 kg) and eliminates the need to guess your corner weights.

Best Features in Class:

• 5,000 lb (2,500 kg) Capacity Pad
• 20,000 lb (10,000 kg) System Capacity
• Military Grade Cables & Connections
• Certified to 0.1% Accuracy
• Serial Output
• Giant 0.5" Display Characters
• 15" x 15" x 4" (381 mm x 381 mm x 100 mm)
• Billet Platforms
• Standard Rechargeable 9-volt
• Battery Operation
• 4 Adjustable Feet Per Scale Pad

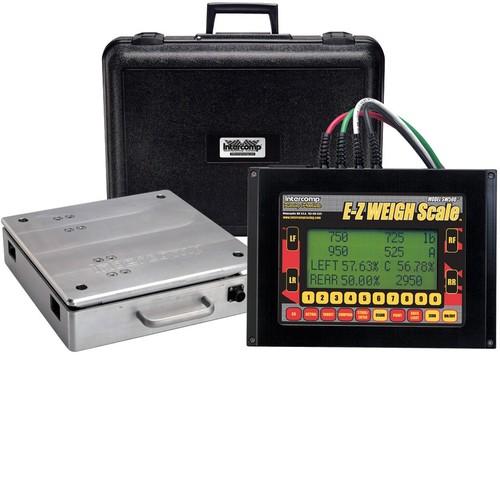

SYSTEM INCLUDES:

1. Four Heavy Duty Scale Pads
2. Indicator
3. Charger
4. Case

Part#	100336	100337	100314	100315	100155	100156	170180	170151
Description	SWII-4K 4" lightWeight Pads	SWII-6K 4" lightWeight Pads	SWI-6K 4" Heavy Duty Pads	SWI-6K 8.8K" Heavy Duty Pads	SW-6K Deluxe 4" Heavy Duty pads	SW-8.8K Deluxe 4" Heavy Duty pads	SW-12K High Capacity W/Heavy Duty Pads	SW-20K High Capacity W/Heavy Duty Pads
Capacity/ Graduation	4,000 x 1 Ib/ 1,800 x 0.5 kg	6,000 x 1 Ib/ 2,800 x 0.5kg	6,000 x 1 Ib/ 2,800 x 0.5kg	8,800 x 1 Ib/ 4,000 x 0.5kg	6,000 x 1 Ib/ 2,800 x 0.5kg	8,800 x 1 Ib/ 4,000 x 0.5 kg	12,000 x 1 Ib/ 5,455 x 0.5kg	20,000 x 1 Ib/ 10,000 x 0.5kg
Weight	105 Ib/ 48kg	105 Ib/ 48kg	145 Ib/ 66kg	145 Ib/ 66kg	155 Ib/ 70kg	155 Ib/ 70kg	165 Ib/ 75kg	165 Ib/ 75kg
