Intercomp LP600 170102 Low Profile Wheel Load Scale Systems (2 Scales), 2-20K-40000 x 20 lb |
|
| Includes: Two Scales with Output, Interconnecting Cable, Charging Cable and Carrying Case. Specify the appropriate battery charger for your application.Weighing a mere 49 lb/22 kg and only 1.5"/38 mm high, this sturdy, all aluminum, fully electronic, self-contained wheel load scale is capable of weighing loads up to 30,000 lb/15,000 kg with an accuracy of ± 1%. more ... |
|
Scales >
Industrial Scales >
Digital Platform Scales
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
This Item Contains the following items
|
|
|
|
|
Features

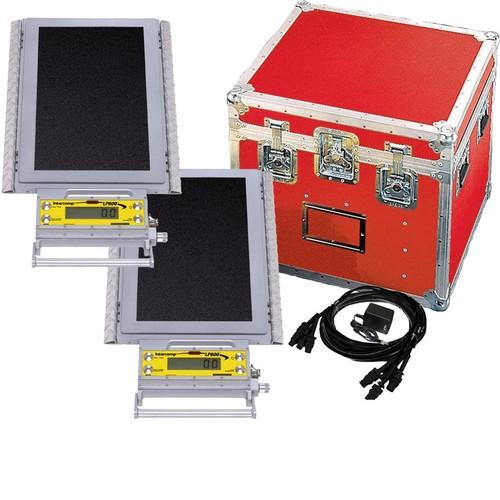

Includes: Two Scales with Output, Interconnecting Cable, Charging Cable and Carrying Case. Specify the appropriate battery charger for your application.
Weighing a mere 49 lb/22 kg and only 1.5"/38 mm
high, this sturdy, all aluminum, fully electronic,
self-contained wheel load scale is capable of
weighing loads up to 30,000 lb/15,000 kg with
an accuracy of ± 1%.
The scale is fully battery operated and only
requires infrequent recharging from a 12, 110,
or 220 volt power source. A charger is provided.
Compact, hand-held infrared remote control
enables user to control all functions of the scale
from a standing position. Jumbo size 1"/25 mm
LCD display is readable from 25 feet/8 meters and
automatically illuminates during use in
low-light conditions.
For the purpose of obtaining an axle weight,
it is possible to interconnect up to 32–LP600
scales. You can view the wheel or total weight
of all interconnected scales at any location. Axle
and axle group weights can be accumulated by
using two or more scales. The scales are linked at
the I/O terminal jack with an optional cable.
| LP600 Wheel Load Scales |
| Self Contained Digital Wheel Load Scale System for Portable Weighing. |
|
Includes: Two Scales with Output, Interconnecting Cable, Charging Cable and Carrying Case. Specify the appropriate battery charger for your application.
|
| Model |
Description |
Capacity/Graduation |
Weight |
| 170100 |
Low Profile Wheel Load Scale System |
2-20K-40,000 x 100 lb/20,000 x 50 kg |
100 lb |
| 170101 |
Low Profile Wheel Load Scale System |
2-20K-40,000 x 50 lb/20,000 x 20 kg |
100 lb |
| 170102 |
Low Profile Wheel Load Scale System |
2-20K-40,000 x 20 lb/20,000 x 10 kg |
100 lb |
| 170103 |
Low Profile Wheel Load Scale System |
2-20K-40,000 x 10 lb/20,000 x 5 kg |
100 lb |
| 170004 |
Low Profile Wheel Load Scale System |
2-10K-20,000 x 5 lb/10,000 x 2 kg |
100 lb |
| 170005 |
Low Profile Wheel Load Scale System |
2-5K-10,000 x 5lb/5,000 x 2 kg |
100 lb |
| 170000-RF |
Wireless Wheel Load Scale w/Handheld Computer |
2-20K-40,000 x 100 lb/20,000 x 50 kg |
100 lb |
| 170001-RF |
Wireless Wheel Load Scale w/Handheld Computer |
2-20K-40,000 x 50 lb/20,000 x 20 kg |
100 lb |
| 170002-RF |
Wireless Wheel Load Scale w/Handheld Computer |
2-20K-40,000 x 20 lb/20,000 x 10 kg |
100 lb |
| 170003-RF |
Wireless Wheel Load Scale w/Handheld Computer |
2-20K-40,000 x 10 lb/20,000 x 5 kg |
100 lb |
| 170004-RF |
Wireless Wheel Load Scale w/Handheld Computer |
2-10K-20,000 x 5 lb/10,000 x 2 kg |
100 lb |
| 170005-RF |
Wireless Wheel Load Scale w/Handheld Computer |
2-5K-10,000 x 5 lb/5,000 x 2 kg |
100 lb |
|
|
