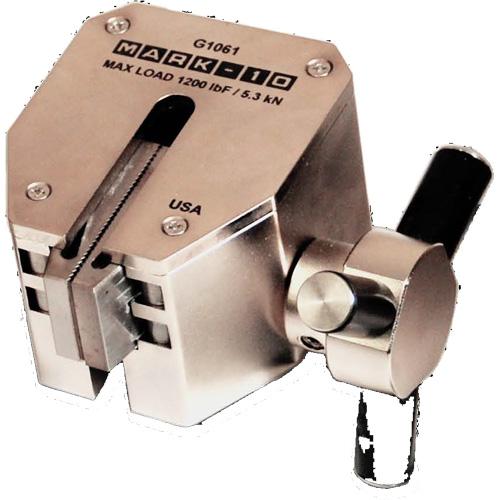

Mark-10 G1061 Self-Tightening Wedge Grip 1200 lb (5.3 kN) Capacity,3/4`` jaw width

Mark-10 - Force and Torque Measurement Products
This heavy duty self-tightening grip with a capacity of 1200 lb (5.3 kN) is ideal for a range of tensile testing requirements. The serrated steel jaws are easily opened with an ergonomic spring loaded knob and rack and pinion type mechanism. The jaws ride on rollers instead of sliding along the surface of the housing, as with conventional wedge grips. This unique design prevents jamming and improves gripping characteristics. more ...
Scales > Crane Scales & Dynamometers > Dynamometers
Mark-10 G1061 Self-Tightening Wedge Grip 1200 lb (5.3 kN) Capacity,3/4`` jaw width

Specifications Chart



Mark-10 G1061 Self-Tightening Wedge Grip 1200 lb (5.3 kN) Capacity,3/4`` jaw width
FREE Ground Shipping *


Price: $470.25


In Stock - Ships within 24 hours

View More Pictures
View Features

Mark 10
SKU: G1061

Features

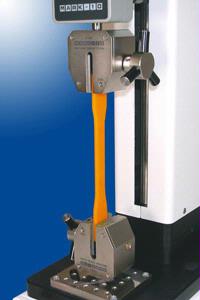

These heavy duty self-tightening grips with a capacity range of 200 lbf to 2,000 lbF (1 kN to 10 kN) are ideal for tensile testing of a wide range of materials. The serrated 55 RC hardened steel jaws ride on rollers instead of sliding along the surface of the housing, as with conventional wedge grips. This unique design prevents jamming and improves gripping characteristics.

The spring loaded jaws open with a highly ergonomic rack and pinion lever mechanism. The smooth and easy operation of the lever greatly reduces operator hand fatigue.

Features/Specifications
  • 3 capacities
  • Unique jam-free design
  • Fully enclosed
  • Hardened, serrated steel jaws
  • Thru slot for samples of unlimited width
  • Ergonomic handle
  • Weight:
    • G1061-1: 0.5 lb [0.23 kg]
    • G1061:0.8 lb [0.36 kg]
    • G1061-2: 0.9 lb [0.41 kg]
  • Jaw material / hardness: 416 SS / 55 RC

Weight: 15.00 lb

Specifications

Model Cap. lb [kN] A B C D E F G Included Adapters
G1061-1 200 [0.9] 1.95 [49.5] 2.45 [62.2] 0.375 [9.5] 0.95 [24.1] 5/16-18 UNC 0 - 0.25 [0 - 6.4] 0.62 [15.7] G1030, #10-32 M/M stud, 5/16-18 M/M stud, with jam nuts
G1061-1 200 [0.9] 1.95 [49.5] 2.45 [62.2] 0.375 [9.5] 0.95 [24.1] 5/16-18 UNC 0 - 0.25 [0 - 6.4] 0.62 [15.7] G1030, #10-32 M/M stud, 5/16-18 M/M stud, with jam nuts
G1061 1,200 [5.3] 1.95 [49.5] 2.45 [62.2] 0.75 [19.1] 1.50 [38.1] 5/16-18 UNC 0 - 0.25 [0 - 6.4] 1.00 [25.4]
G1061-2 2,000 [9] 1.95 [49.5] 2.45 [62.2] 1.00 [25.4] 1.75 [44.5] 1/2-20 UNC 0 - 0.25 [0 - 6.4] 1.13 [28.7] G1066, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts

* within the 48 continental US States
