Salter Brecknell CP103 Thermal Printer |
|
| Compact thermal printer featuring POS compatibility and a global power supply. Designed for testing and measurement, facilities management, law enforcement and many other small footprint applications. more ... |
|
Scales >
Industrial Scales >
Accessories
|
|
|
|
|
|
Features
Compact thermal printer featuring POS compatibility and a global power supply. Designed for testing and measurement, facilities management, law enforcement and many other small footprint applications.
Common Applications - n-Vehicle Printer, Emergency Services, Field Service, Logistics, Testing and Measurements, Retail, Facilities
Management, Agriculture, Recycling, Waste Management, Law Enforcement, Cranes, Data Collection, Receipts,
Product Labelling & Hospitals
- Windows Driver
- POS Compatible
- ABS Plastic
- Configurable Baud 4800 -115,200
- Double High, Double Wide Capable
- Compact 104 mm (L) x 75 mm (W) x 48 mm (H)
4" L x 3" W x 1.8” H
- 12 Volt DC or A/C Ready - Power can be
supplied through the RS-232 cable from host
- RS-232
- Time and Date Standard
- Customize Logo Affixation
- Invert Printing
- Paper Out Sensor
Weight:
0.75 lb
|
|
Specifications
| Model |
CP103 |
| Type |
Thermal Printer |
| Dimension |
104 mm (L) x 75 mm (W) x 48 mm (H) - 4" L x 3" W x 1.8” H |
| Operating Temperature |
0° C to 50° C (41° F to 104° F) |
| Unit Weight |
0.15 kg / 0.32 lb |
| Power |

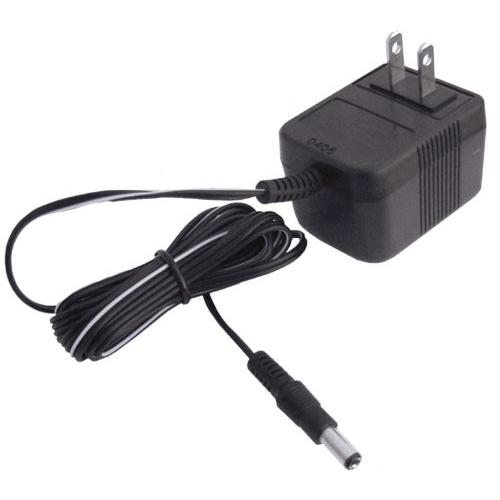

(12 VDC US Adapte not included) |
| Interface |
RS-232 |
| Baud Rate |
4800 up to 115,200 |
| Unit Weight |
0.34 kg (0.75 lb) |
| Factory Default |
9600, 8, N, 1*
*Configuration cable AWT05-508092 needed to change configuration |
| Paper Width |
58.4 mm / 2.3" |
| Print Speed |
90 mm / s max |
| Data Buffer |
10K |
| Resolution |
ion: 8 dot/mm (203 dpi) |
| Number of Columns |
24 or 32 *Configuration cable "AWT05-508092 (inlcuded) |
| Number of Columns |
12, 16, 24, 32, 42 (Configuration cable "AWT05-505624 needed) |
| Operating Current |
2 AMP |
| Windows Driver |
YES |
| POS Compatible |
YES |
| Includes |
CP130 Printer, 1 paper roll, RS-232 Cable and manual |
|
|
|
|
|
|
|
|
|
|
|
|
