Rice Lake CW-90XB-680 201410 Legal for Trade IP69K 10 x 10 inch Bench Scale with 12 in Column 10 x 0.002 lb |
|
Rice Lake’s CW-90XB light-capacity bench scale has 304 stainless steel construction and contains an IP69K environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90B is available in capacities up to 100 pounds more ... |
Industrial Scales >
Bench Scales >
Bench Scales with Column
|
Specifications Chart
View Full Detail Page
|
 Legal for Trade |
Have Questions? Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:10 lbx 0.002 lb
Legal For Trade: 10 lb x 0.002 lb
Pan Size
10 x 10 in
|
|
|
|
|
|
|
Features
Rice Lake’s CW-90XB light-capacity bench scale has 304 stainless steel construction and contains an IP69K environmentally sealed aluminum load cell, ensuring it can endure tough environments. The CW-90XB is available in capacities up to 100 pounds.

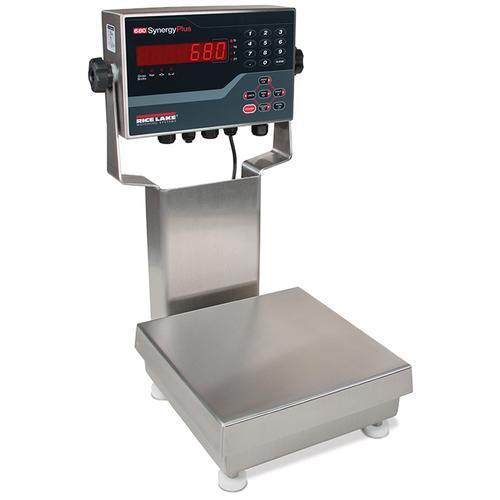

The CW-90XB Ready-n-Weigh Bench Scale System is a complete bench scale, indicator, and column package. Match the CW-90B light-capacity industrial bench scale base with one of Rice Lake’s indicators to fit your application. Available in a range of low- to mid-size dimensions and capacities up to 100 pounds. Each scale package arrives factory calibrated for quick setup.
This package pairs the IP69K 680 Synergy Series digital weight indicator with the CW-90XB. Rice Lake’s 680 has an LED display, battery-backed time and date, a full numeric keypad, and multiple communication ports. Constructed with durable 304 stainless steel and able to withstand harsh washdowns, it maximizes process efficiency in virtually any environment or application.
- Package includes scale with IP69K stainless steel hermetically sealed load cell with an indicator and 12-inch column
- Factory calibrated with indicator setup and configured for 5,000 divisions
- Scale includes rubber feet to provide exceptional traction and avoid scratching surfaces along with removable top cover for ease of cleaning
- AC power 100 to 240 VAC
- Full numeric keypad
- LED display suitable for a variety of environments
- Battery backed time and date
- Standard RS-232 serial ports for connecting to a variety of peripherals
- Ethernet TCP/IP
Weight:
25.00 lb
|
|
Specifications
With 680 IP69K Indicator With IP69K CW-90XB Base |
Model with 680 IP69K Indicator |
201409 |
201410 |
201411 |
201412 |
201413 |
201414 |
Capacity Readability |
5 x 0.001 lb |
10 x 0.002 lb |
25 x 0.005 lb |
25 x 0.005 lb |
50 x 0.01 lb |
100 x 0.02 lb |
2500 x 0.5 g |
5000 x 1 g |
10,000 x 2 g |
10,000 x 2 g |
25,000 x 5 g |
50 x 0.01 kg |
Pan Size |
10 x 10 in |
12 x 12 in |
Rating |
IP69K (IP66 with RJ45) |
Scale Construction |
304 stainless steel |
Maximum Overload |
180% to 200% depending on capacity |
Overload Protection |
Five-point, independently adjusted |
Scale Frame |
AISI304L, straight line finish, Ra= 45 +/- 10 |
Scale Cover |
AISI304L, straight line finish, Ra= 45 +/- 10 |
Cable Length |
34 in |
Compensated Temperature Range |
14 °F to 104 °F (-10 °C to 40 °C) |
Legal for Trade |
Base:NTEP 95-072, Class III 5,000 d Indicator: NTEP 19-021 |
Measurement Canada Base: AM-5082 Indicator: AM-6121C |
Interface |
Two full-duplex RS-232 RS-485/422 (five -wire) Micro USB (device) Ethernet TCP/IP (10/100) |
Display |
Seven 0.8 in tall, seven-segment digits |
Annunciators |
Eight LED |
Keys/Buttons |
Flat membrane panel, tactile feel (18 buttons plus on/off) |
|
|
|
|
|
|
|
