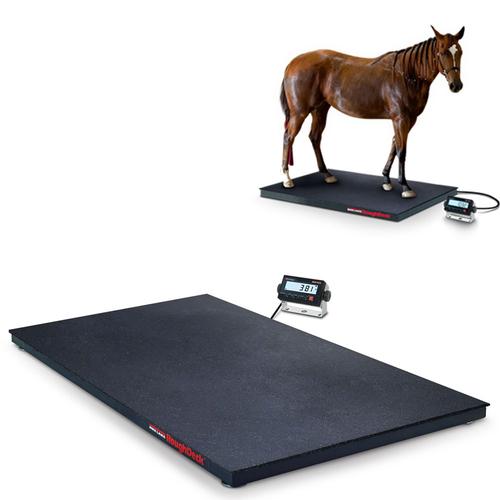

Rice Lake 231030 EQ Roughdeck 48x72 Single Animal Livestock Scale 2500lb x 0.5lb |
|
| The RoughDeck EQ equine scale is designed specifically for the safe and reliable weighing of horses or other large animals. The heavy-duty removable horse mat provides extra cushion comfort and is noise-reducing, creating a calm weighing environment. more ... |
|
Medical Equipment >
Medical Scales >
Veterinary Scales
|
Note: This product can only be shipped Ground Delivery.
|
|
|
|
|
|
|
|
Features
RoughDeck® EQ Equine Floor Scale and Indicator Package
The RoughDeck EQ equine scale is designed specifically for the safe and reliable weighing of horses or other large animals. The heavy-duty removable horse mat provides extra cushion comfort and is noise-reducing, creating a calm weighing environment.
- Package includes 4 ft × 6 ft × 4.25 in floor scale with stall mat, 20ft of SURVIVOR® EL147HE hostile environment load cell cable and indicator
- Mat thickness 0.75 in
Scale
- Heavy-duty design with structural steel channel frame
- Stall mat to reduce noise and instill equine comfort
- Four adjustable stainless steel SUREFOOT™ support feet
- Powder-coated black matte finish
Indicator
- LCD display
- Battery powered
- Push-button and keyed tare
- Two communication ports
- Five tactile buttons
- Configurable print formats
- ABS enclosure
|
|
Specifications
| Model |
231030 |
| Capacity x Readability |
2500 x 0.5 lb |
| Legal For Trade |
NTEP 21-051 Class III/IIIL, 10,000 d
Measurement Canada AM-6184 |
| End Load Capacity |
100% full scale at 2,500 lb |
| Load Cells |
Model RL32018 alloy steel environmentally sealed IP66 |
| Junction Box |
Side access, TuffSeal JB4SS stainless steel, NEMA Type 4X with a signal card |
| Feet |
Stainless steel SUREFOOT, adjustable (+0.25 in or -0.125 in) for leveling the scale |
| Finish |
Powder coat painted, black matte |
| Cable Length |
20 ft (6.1 m) for connecting scale junction box to indicator |
| Threaded Eyebolt |
One lifting hole located in center of scale for easy install (requires 1/2-20NF eyebolt, not included) |
| Warranty |
Two-year limited |
| Power |
Battery: AA or Nickel Metal Hydride (NiMH)
381-2D-AA Adapter: 115/230 VAC to 12 VDC
381-2D-NiMH Charger: 115/230 VAC
|
| Battery Life |
AA: 40 hours with one × 350 ohm load cell
NiMH: 80 hours with one × 350 ohm load cell
|
| Communication Ports |
One full-duplex RS-232
One USB 2.0
|
| Display |
Six 1 in (25 mm) tall, LCD digits |
| Annunciators |
g, lb, t, tn, kg, oz, battery level, PT, LT, gross, zero, unstable, net |
| Keys/Buttons |
Five tactile buttons |
| Rating / Material |
AA Battery: IP54, ABS
NiMH Battery: IP66, ABS
|
|
|
|
|
|
|
|
Optional Accessories
more info
|
Rice Lake 207812X2 set of 2 Guide Rails for RoughDeck EQ Equine Floor Scale
Guiderail, Roughdeck EQ 5.66ft long x 4.36ft high, includes one rail, mounting hardware black matte finish
|
|
more info
|
Rice Lake Floor anchor plates, mild steel (set of 2)
Rice Lake Floor anchor plates, mild steel (set of 2)
|
|
more info
|
Rice Lake 12839TC Class F - Class 6 NIST Avoirdupois Grip Handle Weights, 50lb With Accredited Certificate
Weight,Heavy Cap 50lb NIST Class F - Class 6 Cast, Density 7.2
Weight- 50lb
Dimensions - W 8.00 in X L 5.5 in X H 6.37 in
Slot width - 4.5 in
Slot Depth - 1.62
Cast Iron
CAST IRON GRIP HANDLE AND NESTING SLAB WEIGHTS
AVOIRDUPOIS
NIST CLASS F - CLASS 6
| Weight |
Part# |
Dimensions |
Slot Width |
Slot Deph |
Part# W/ Accredited Cert |
| 3000 lb |
12872 |
20 3/4 W x 20 3/4 L x 29 H |
3 1/2 |
2 3/4 |
12872TC |
| 2500 lb |
12854 |
20 3/4 W x 20 1/4 L x 24 1/4 H |
3 1/2 |
2 3/4 |
12854TC |
| 2000 lb |
12868 |
20 3/4 W x 20 3/4 L x 19 1/2 H |
3 1/2 |
2 3/4 |
12868TC |
| 1500 lb |
12864 |
15 1/8 W x 15 1/8 L x 23 7/8 H |
2 1/2 |
2 1/2 |
12864TC |
| 1250 lb |
12858 |
15 W x 15 1/8 L x 23 7/8 H |
2 1/2 |
2 1/2 |
12858TC |
| 1000 lb |
12850 |
15 W x 15 1/2 L x 19 H |
2 1/2 |
2 1/2 |
12850TC |
| 500 lb |
12844 |
11 1/2 W x 11 3/4 L x 16 H |
2 1/2 |
1 3/4 |
12844TC |
| 250 lb |
12892 |
9 3/4 W x 9 3/4 L x 12 H |
2 1/2 |
2 |
12892TC |
| 200 lb |
12890 |
9 3/4 W x 9 3/4 L x 10 H |
2 1/2 |
2 |
12890TC |
| 100 lb |
12862 |
9 1/4 W x 7 L x 7 3/4 H |
4 1/2 |
1 5/8 |
12862TC |
| 50 lb |
12839 |
7 7/8 W x 5 1/2 L x 6 9/16 H |
4 1/2 |
1 5/8 |
12839TC |
| 30 lb |
12878 |
8 1/4 W x 4 15/16 L x 4 1/2 H |
Consult Factory |
Consult Factory |
12878TC |
| 25 lb |
12833 |
6 1/2 W x 4 1/2 L x 4 15/16 H |
3 5/8 |
1 |
12833TC |
| 20 lb |
12870 |
5 7/8 W x 4 1/2 L x 5 H |
3 5/8 |
1 1/8 |
12870TC |
|
|
|
|
|
|
|
|
|
