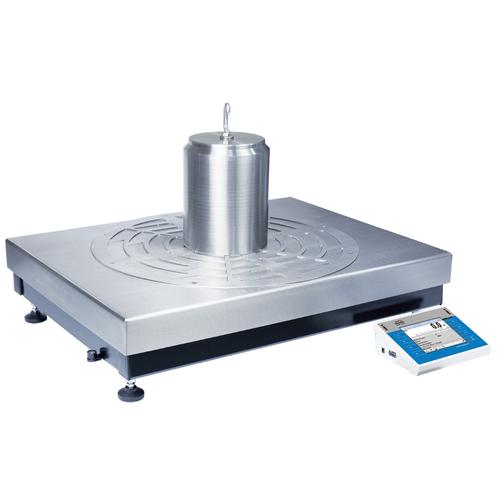

RADWAG HRP 1000.4Y.KB Mass Comparator 1050 kg x 10 g
HRP 4Y.KO series comparators comprise two components, professional weighing platform (a new mechanical design of electromagnetic mechanism housed within a tight steel casing) and PUE 7.1 terminal more ...
Capacity x Readability 1050 kgx 10 g Pan Size 1000 x 800 mm
Features
HRP 4Y.KO series comparators comprise two components, professional weighing platform (a new mechanical design of electromagnetic mechanism housed within a tight steel casing) and PUE 7.1 terminal.
The weighing platform made of steel features centring rings enabling precise positioning of the weights.
The comparator features intuitive and user friendly menu.
Effective and Excellent MeasurementThe HRP 4Y.KB series stands for a class-leading manual mass comparator. These weighing instruments allow to compare 1000 kg and heavier weights of class M1 and 200 kg - 1000 kg weights of class M2.
Design and Functionality Precisely marked weighing platform of the HRP 4Y.KB mass comparator enables centring loading of weights. The self-centring weighing pan ensures stabilization and levelling of the weights loaded off-centre and to compare weights of atypical shapes.
Dedicated Software Specially designed RMCS computer software enables comprehensive realisation of calibration procedures in laboratory. The system manages the whole calibration process, starting from the moment the order is placed, through procedure performance, to the moment of issuing the calibration certificate.
Functions
Mass comparator
Ambient conditions measurement
Proximity sensors
Replaceable units
Multilingual menu
Precisely marked weighing platform
PUE 7.1 indicator with 5.7" color graphic display
ELECTRONIC LEVEL INDICATOR
ALARM function
graphic level indicator
programmable acceptable tilts
DATA EXCHANGE THROUGH USB STORAGE DEVICES
update balance software
export weighing data
export/import databases
export/import balance settings
exchange data between balances
INFRARED PROXIMITY SENSORS
Optional functions:
PRINT function
TARE function
sensors sensitivity adjustment
INTERFACES
Ethernet
2 x USB
2 x RS-232
4 in / 4 out
WiFi 2,4GHz b,g,n
Specifications
Model
HRP 1000.4Y.KB
Capacity x Readability
1050 kg x 10 g
Repeatability nominal load *
< 10 g
Repeatability for small load*
< 6 g (200 kg)
Stabilization time
10 s
Adjustment
External Calibration
Electric compensation range
0 g ÷ 1050 kg
Eccentricity (for test weight)
1 d / 5 mm
Maximum permissible weight loading speed
0.6 m / min
Recommended weight loading speed
0.3 m / min
OIML calibration range E1
-
OIML calibration range E2
-
OIML calibration range F1
-
OIML calibration range F2
-
OIML calibration range M1
1000 kg
OIML calibration range M2
200 kg ÷ 1000 kg
Display
5.7" color resistive touch screen
Keypad
8 keys
Ingress protection - indicator
IP 43
Touch-free operation
2 programmable sensors
USB-A
2
Ethernet
10 / 100 Mbit
RS-232
2
Wi-Fi
802.11 b/g/n
IN/OUT
4 x IN, 4 x OUT
Power supply
110 ÷ 230 V AC / 50 ÷ 60 Hz
Operating temperature
+15 ÷ +30 °C
Operating temperature change rate
±2 °C / 12 h
Relative humidity variations
±10% / 4 h
Relative humidity***
40 ÷ 60%
Transport and storage temperature
–20 ÷ +50 °C
Weighing pan dimensions
1000 x 800 mm

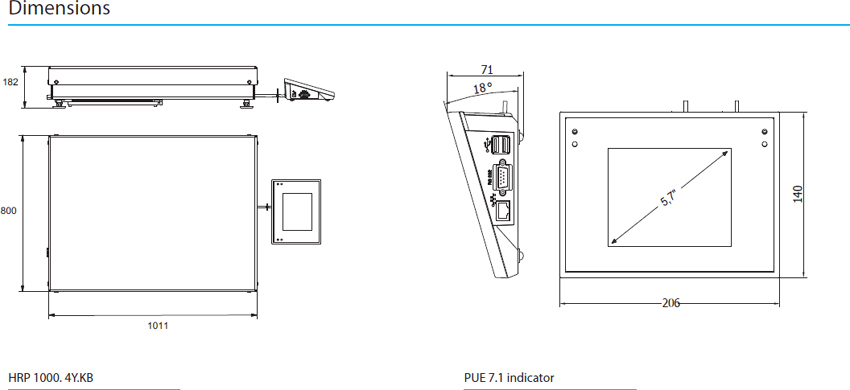

Mass comparator dimensions
1011 x 800 x182 mm
Indicator dimensions
206 x 140 x 71 mm
Mass comparator net weight
134 kg
Mass comparator gross weight
168 kg
Mass comparator packaging dimensions
1200 x 1000 x 436 mm
* repeatability is expressed as a standard deviation determined for 6 ABBA cycles
** dimensions: length x width x depth
*** non-condensing conditions
Electrical Accessories power supply with ZR–02 battery
Dedicated Software (not included) - Call for more info
RMCS System
performance of calibration procedures in a laboratory from the moment the order is placed, to the moment of issuing a calibration certificate
compatible with THB sensors enabling recording ambient conditions
export of report results to various files
archiving calibration protocols, orders, certificates and ambient conditions
R-LAB
collecting measurements
carrying out statistical analysis of measurements
customized graphs and reports
Parameters Editor
remote change of parameters
remote on-line preview of the display
displaying current mass indication
software update
file loading, editing and saving parameters to a file
import and export of parameters
interfaces: RS232, Ethernet and Wireless Connection
quick and easy edition of balance parameters using computer ways of initializing the process of acquiring data from the weighing instrument and sending it to a computer
readout of characters transmitted via RS 232 to a computer
RADWAG Remote Desktop
remote control of the mass comparator using computer, telephone or tablet
RMCS system, designed by RADWAG, is dedicated to management of calibrating and testing procedures in a laboratory from the moment of accepting an order, through its progress and until issuing a calibration certificate. The software manages the complete calibrating and testing process.
The operation of mass comparators in connection with the software for network management of calibration process provides improved efficiency, reliable measurement results and complete documentation from calibration process, together with lower labour costs.
The system enables initiating the calibration procedure by ordering a task to a mass comparator, and autonomous executing calibration process on a mass comparator. In both cases, data is transferred to the software for the purpose of registering, controlling and finally issuing a calibration certificate.
Mass comparators linked in the RMCS system autonomously cooperate with THB ambient conditions monitors enabling recording major ambient factors like temperature, humidity and atmospheric pressure throughout the control process. The modules are detachable from the mass comparators for calibration and adjustment of their sensors.
Data on current ambient conditions is displayed in real time on mass comparator’s display. The data is also sent do RMCS software for control and archiving purposes.
System modules:
Ambient conditions monitoring module:
Installed and in direct cooperation with a mass comparator;
Enabling recording ambient conditions (temperature, humidity, atmospheric pressure) and calculating air density;
Continuous monitoring of ambient conditions in direct vicinity of a mass comparator and its weighing chamber;
Graphic presentation of ambient conditions on mass comparator’s display.
Weighing module:
Automatic and manual mass comparators used as components of the RMCS system;
Access and management of databases on: standards, test objects, from the level of RMCS software;
Execution of calibration tasks ordered in the RMCS software;
Self test procedure determining mass comparator’s repeatability parameter;
Transfer of measurement results to the software memory.
Calculating and data storage module:
Sending tasks to mass comparators;
Downloading data on mass and ambient conditions from mass comparators;
Operation on databases of clients / tasks / standards;
Monitoring of future calibration dates;
Database of accomplished calibrations, printouts and saved documentation.
Software functions:
RMCS functionality:
Complete management of a metrological laboratory calibrating mass standards and weights with application of Y series of RADWAG mass comparators;
Calibration using ABBA and ABA methods;
Application of MS SQL database for network supervision of multiple computer stands;
Complete management of calibration orders;
Extended database of mass standards and test objects;
Extended database of clients, operators and users;
Database of manual and automatic mass comparators;
Database of calibration orders;
Managing pending tasks based on issued calibration orders;
Planning tasks and orders execution;
Weight checking procedure without an order – Quick Check option;
Manual or automatic calibration of test objects;
Cooperation with RADWAG automatic mass comparators;
Bilateral data synchronization with RADWAG mass comparators;
Reporting from calibration process;
Issuing calibration certificates according to pre-defined template;
Exporting report results to various file formats: PDF, MS Word, Excel;
Record of events;
Register of orders and calibration certificates;
Saving copies of all calibration protocols, orders, calibration certificates and records of ambient conditions;
Secured access to the software – log in procedure using password.
