Ohaus RP6RM/3 Ranger Count Plus w/ NiMH Battery and 2nd RS232 Legal For Trade Compact Scale (12 lb x 0.0005 lb Certified Resolution) 9.5 x 8 in Platform Size |
|
| Every Ranger Count Plus features a large, backlit LCD display with fast display of weighing results within 2 seconds, as well as a RS232 port for quick connectivity to printers and systems. For use in applications requiring additional filtering, the Ranger series also includes dynamic weighing software allowing weigh determination where vibration is an issue. more ... |
|
Industrial Scales >
Counting Scales >
Dedicated Counting Scales
|
View Full Detail Page
|
Legal for Trade |
Have Questions?
Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:12 lbx 0.00005 lb
Legal For Trade: 12 lb x 0.0005 lb
Pan Size
9.5 x 8 in
|
|
|
|
|
|
|
|
|
Optional Warranty
|
Features
The OHAUS RangerTM line of compact counting scales has been upgraded and expanded with new software and enhanced microprocessors for even better performance in demanding industrial applications. Every Ranger Count features a large, backlit LCD display with fast display of weighing results within 2 seconds, as well as a RS232 port for quick connectivity to printers and systems. For use in applications requiring additional filtering, the Ranger series now includes dynamic weighing software allowing weigh determination where vibration is an issue. For advanced counting applications, the Ranger Count Plus offers a numeric keypad for manual entry of key data like average piece weight (APW), sample size and part ID, and information stored in 100 memory locations.
Every Ranger Count Plus features a large, backlit LCD display with fast display of weighing results within 2 seconds, as well as a RS232 port for quick connectivity to printers and systems. For use in applications requiring additional filtering, the Ranger series also includes dynamic weighing software allowing weigh determination where vibration is an issue. For advanced counting applications, the Ranger Count Plus also offers a numeric keypad for manual entry of key data like average piece weight (APW), sample size and part ID and information stored in 100 memory locations.
Standard Features
Ranger Count Plus incorporates a MFR loadcell for resolutions up to 1:300,000
Rugged cast aluminum housings with removable stainless steel weighing pans, tough painted finishes
Weigh in lb, oz, kg, g or metric tonne units
Large, backlit LCD display
RS232 interface included for connection to printers and systems
NTEP 1:30,000 legal-for-trade resolution available on Ranger Count Plus models
Built-in AC with hardwired plug
Factory options for second RS232, analog input for connection to external bases, and rechargeable NiMH battery available
| Model Number |
RP3RM |
RP6RM |
RP15LM |
RP35LM |
Capacity x Readability Default |
6.61388 x 0.00002 lb |
13.22770 x 0.00005 lb |
33.0694 x 0.0001 lb |
77.1620 x 0.0002 lb |
| 105.8228 x 0.0002 oz |
211.6440 x 0.0005 oz |
529.110 x 0.002 oz |
1234.592 x 0.002 oz |
| 3 x 0.00001 kg |
6 x 0.00002 kg |
15 x 0.00005 kg |
35 x 0.0001 kg |
| 3000 x 0.01 g |
6000 x 0.02 g |
15,000 x 0.05 g |
35,000 x 0.1 g |
| Minimum APW |
0.000005 lb |
0.00001 lb |
0.00005 lb |
0.00002 lb |
| 0.0001 oz |
0.00005 oz |
0.0002 oz |
0.0002 oz |
| 0.002 g |
0.005 g |
0.01 g |
0.05 g |
Capacity x Readability NTEP Certified
(NTEP Certification not for Counting Function) |
6 x 0.0002 lb |
12 x 0.0005 lb |
30 x 0.001 lb |
60 x 0.002 lb |
| 3 x 0.0001 kg |
6 x 0.0002 kg |
15 x 0.0005 kg |
30 x 0.001 kg |
| Platform Size (W x D) |
6.4 x 6.4 in / 16.2 x 16.2 cm |
9.5 x 8 in / 24 x 20 cm |
14 x 9.5 in / 35 x 24 cm |

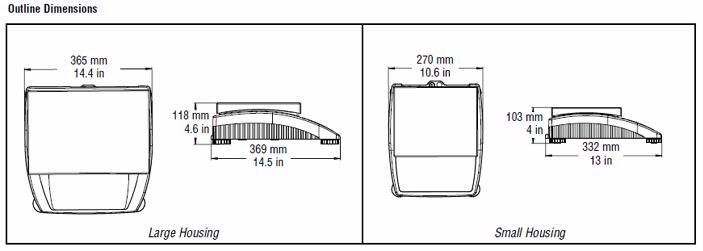

| Scale Dimensions (W x D x H) |
10.5 x 13.2 x 4 in/ 26.5 x 33.5 x 10 cm |
14.2 x 14.6 x 4.5 in / 36 x 37 x 11.5 cm |
| Net Weight |
12 lb / 5.1 kg |
24 lb / 10.6 kg |
| Shipping Weight |
15 lb / 6.7 kg |
29 lb / 12.8 kg |
| Shipping Dimensions (W x D x H) |
16.5 x 19 x 10 in / 42 x 48x x 25 cm |
20 x 20.5 x 10.5 in / 52 x 53 x 27 cm |
| Maximum Internal Counting Resolution |
1:3,000,000 |
| Maximum Displayed Counting Resolution |
1:1,500,000 |
| Weighing Units |
lb, oz, kg, g, t |
| Application Modes |
Weigh, Count, Fill/Dose, Dynamic Weigh,
Checkweigh, Count Check, Totalize |
| Display |
Backlit LCD with 7 digits 0.63"/16mm high and capacity guide |
| Memories |
100 for tare weights, APW, and target values |
| Keyboard |
10 keys plus numeric keypad |
| Interface |
RS232 with GMP/GLP data output |
| Tare Range |
To full scale capacity |
| Stabilization Time |
~ 1 second |
| Auto-Zero Tracking |
0.5, 1, 2, 5, 10d or Off |
| Safe Overload Capacity |
150% of capacity |
| Power |
Internal, hardwired AC included |
| Calibration |
Span Calibration: 0%, 20% to 100% of capacity |
| Operating Temperature |
50° to 86°F / 10° to 30°C |
Weight:
12.00 lb
|
2 Year Manufacture Warranty
|
