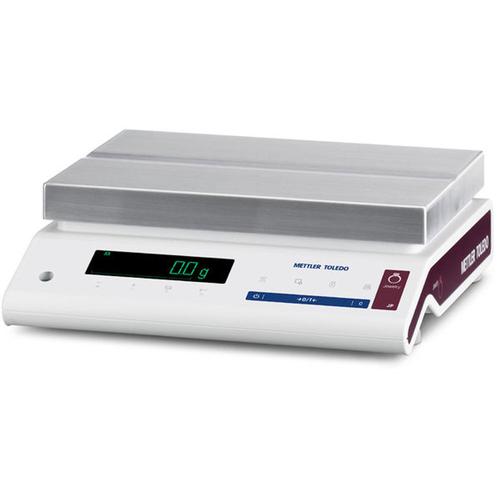

Mettler Toledo® JP16001G/A Gold 16200g x 0.1 g Legal for trade Jewelry Balance 16200 x 1 g |
|
| All the basic functions you need for accurate jewelry weighing. 16200 g capacity, 0.1 g readability, bright and clear backlit LCD, internal adjustment, passcode protection, overload protection, metal base more ... |
|
Retail Storefront >
Jewelry Scales >
Tabletop
|
Specifications Chart
|
 Legal for Trade |
Have Questions? Our Staff will be glad to help |
Capacity x Readability
Non Legal Mode:16200 gx 0.1 g
Legal For Trade: 16200 g x 1 g
Pan Size
351 x 245 mm
|
|
|
|
|
|
|
|
|
Features
p>The Mettler Toledo® JP16001G Gold Balance is a heavy-duty, ultra-high-capacity precision scale specifically engineered for large-scale gemstone processing, large jewelry manufacturing facilities, heavy silver/gold bullion refineries, and bulk warehouse inventory management. Belonging to Mettler Toledo’s premium "JP-Large" series, it bridges the gap between delicate laboratory precision and industrial bulk weighing. It boasts an immense maximum capacity of 16,200 grams (16.2 kg) while sustaining a crisp, precise readability of 0.1 grams across the entire weighing spectrum.
Because it is built to hold substantial physical weight—such as dense gold bricks or massive strings of raw materials—the balance is designed with a low-profile, highly rigid structure. It features a solid, shock-absorbent metal chassis base and an extra-large 351 mm x 245 mm stainless steel weighing platform that allows users to place large sorting bowls or heavy material lots without the scale tilting, rocking, or shifting off-center. Powered by a high-grade MonoBloc weighing cell, the JP16001G delivers locked-in, stable weight readouts in an impressive 2 seconds even when handling extreme capacities
- Massive 16.2 kg Capacity: Handles a heavy maximum capacity of 16,200 g with an accurate resolution of 0.1 g (typical repeatability limit of 0.07 g).
- MonoBloc Weighing Cell: Equipped with advanced Swiss MonoBloc technology to ensure extreme ruggedness, fast recovery times, and long-term measurement consistency.
- FACT Automatic Self-Calibration: Utilizes Fully Automatic Calibration Technology to automatically execute internal weight adjustments whenever ambient room temperature shifts are detected, bypassing the need for heavy 10 kg external test weight blocks.
- Extra-Large Weighing Pan: Features a vast 351 mm x 245 mm (13.8" x 9.6") stainless steel platform designed to effortlessly fit wide sorting bins, oversized jewelry trays, or raw bullion bars.
- High-Contrast HCD Display: Outfitted with an angled High Contrast Display (HCD) that presents large, glowing numbers for mistake-free clerical logs under challenging or direct factory lights.
- Below-Balance Density Hook: Outfitted with an integrated weighing hook underneath the scale base, ideal for running liquid immersion specific gravity calculations on heavy pieces to confirm metal purity.
- Tough, Ridge-Free Enclosure: Features a durable die-cast aluminum housing designed with smooth, ridge-free lines to ensure quick cleaning and rapid retrieval of inadvertently scattered small parts or beads.
- 16 Weight Metric Profiles: Supports immediate toggling between 16 international weight units (including grams, kilograms, carats, pennyweights, troy ounces, and traditional taels).
- 8 Integrated Business Applications: Pre-loaded with firmware profiles optimized for inventory tasks, including piece counting, multi-item totalization, checkweighing, and statistical metrics.
- Expanded Data Interfacing: Outfitted with multiple connectivity ports (including RS232 and USB Device ports) to simultaneously route logs to PC inventory databases, auxiliary customer displays, or thermal label printers.
Dimensions X:
16.00
Y:
13.00
Z:
9.00
Weight:
5.00 lb
|
|
Specifications
| Model |
JP16001G/A |
JP32001G/A |
| Capacity x Readability |
12200 x 0.1g |
62000 x 0.1g |
| Legal for Trade |
NTEP #12-045A2 |
| Class II |
Class II |
| 12200 x 1 g |
62000 x 1 g |
| Repeatability (Typical)
| 0.07 g |
| Minimum Weight (U=1%, k=2), typical
| 14 g |
| Settling Time
| 1 seconds |
| Adjustment Type
| Internal / FACT |
| User Interface
| High contrast display HCD |
| Balance Model (Carat/Gold)
| Gold |
Gold |
| Weighing Pan Diameter
| 351 mm x 245 mm |
351 mm x 245 mm |
| Dimensions (HxWxD)
| 118 mm x 363 mm x 346 mm |
| Connectivity Ports
| RS232 |
|
|
|
|
